    CATEK · Spire

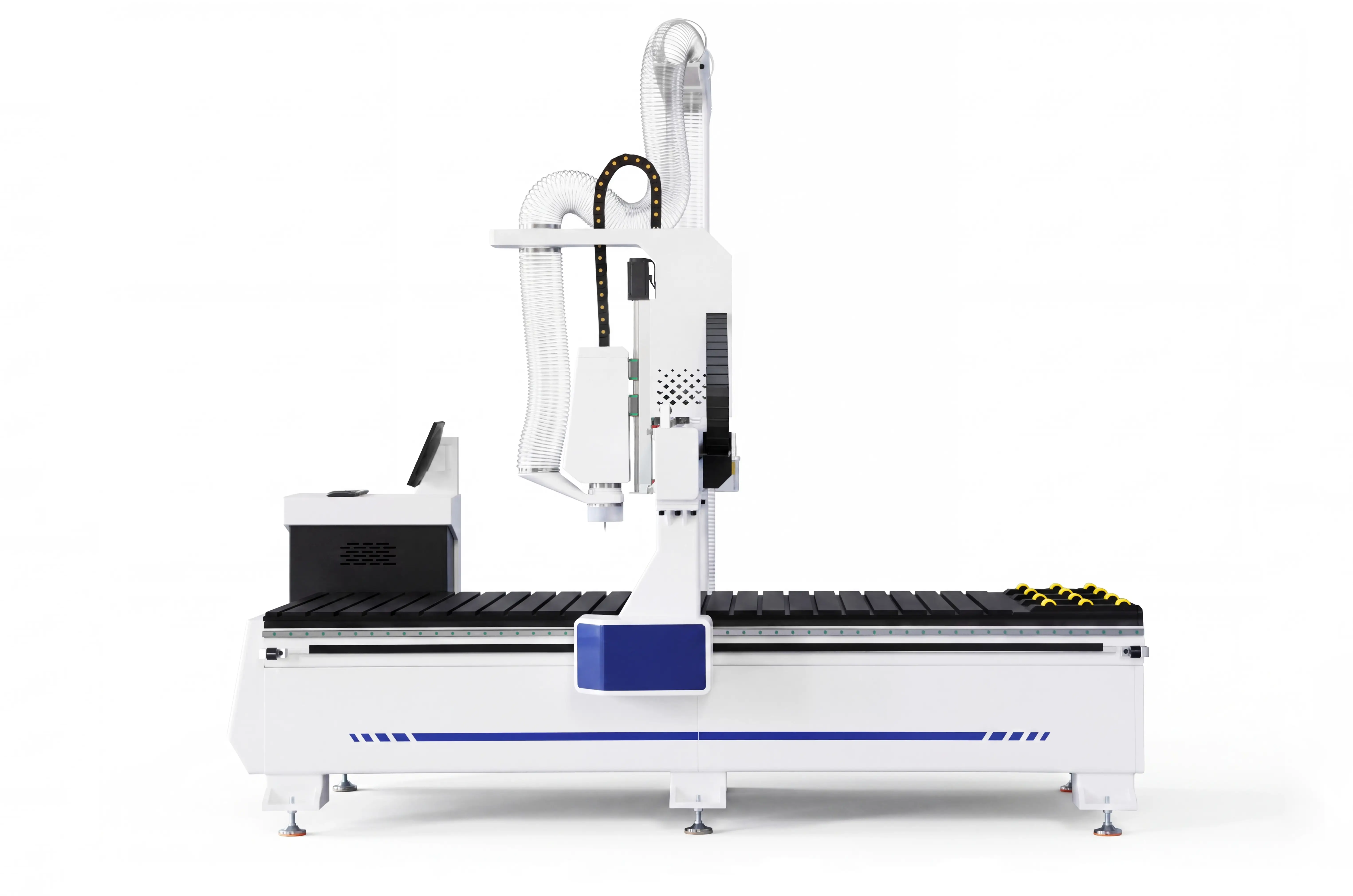

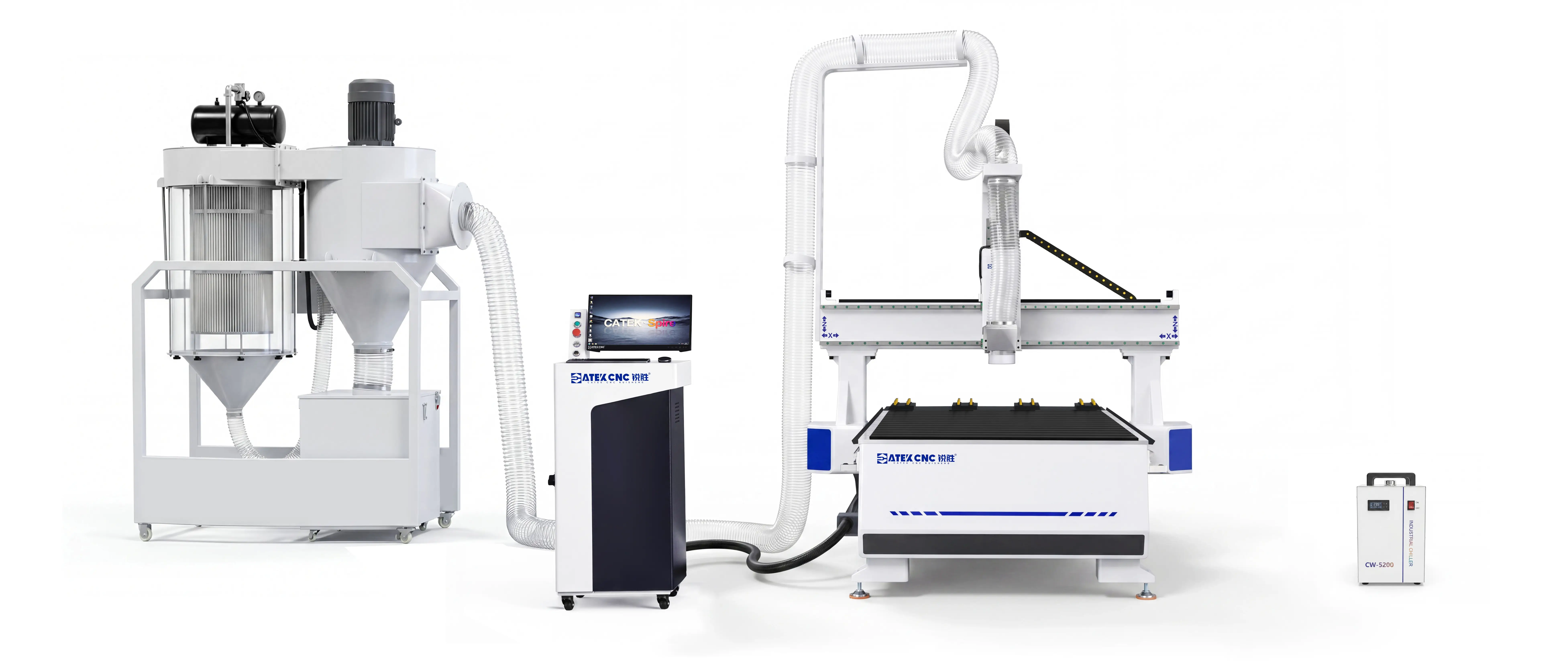

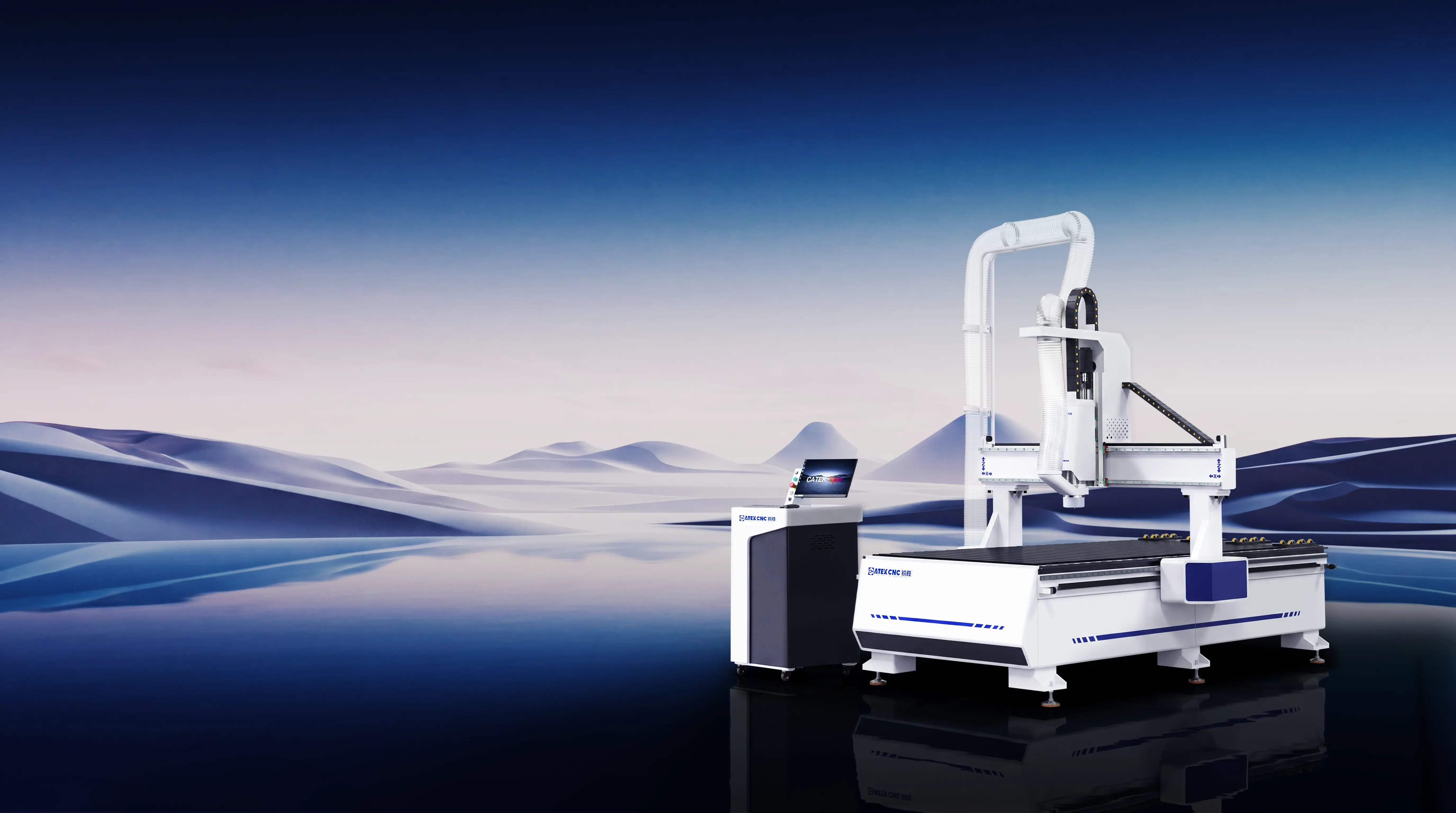

    Spire 1325 CNC Router With T-Slot Table

    5.0 Rating (0 customer reviews)
    · Function Description ·
    This custom-built Spire 1325 CNC router features a T-slot table and a 400mm customized machining height, making it ideal for machining various sheet materials and irregular workpieces (particularly tall-dimension products).
    {{(goodsPrice)}}
    Add To Cart Contact Now
    • Brand: CATEKCNC
    • Model: CK-1325-WSP-ST
    • Tags: Spire Series
    • Share:
    Description
    Parameters
    Reviews

    CATEK · Spire

    Perfectly Balancing Performance and Budget, Stable Productivity Through Customizable Options and Comprehensive Service.

    The CK-1325-ST is a machining solution that balances cost-effectiveness with high performance. The machine features a 1300 × 2500mm (4 × 8ft) working area and supports a maximum machining height of 400mm. It is equipped with CATEKCNC’s self-developed spindle and servo systems, alongside an aluminum alloy T-slot table that eliminates the need for a vacuum pump, offering flexible and convenient workpiece clamping. The overall structure is stable, user-friendly, and ensures smooth transmission with comprehensive safety protection.

    As a Spire Series model, the CK-1325-ST utilizes high-quality core components and strictly adheres to precision manufacturing processes, delivering exceptional comprehensive performance. Furthermore, this CNC router comes with exclusive Spire one-on-one after-sales support, an industry-leading five-year free warranty, lifetime maintenance, and free software upgrades. These benefits ensure the long-term stable operation of the equipment, providing reliable support for various machining requirements.

    Core Advantages of Spire 1325 CNC Router: Four Dimensions to Reshape the Standards of High-Efficiency Production

    01.
    Large-Format Design,
    Customizable Configurations.
    The CK-1325-ST comes standard with a 1300 × 2500mm (4 × 8ft) worktable, perfectly suited for the cutting and engraving of various standard sheets. With a maximum processing height of 400mm, it easily handles thick materials, 3D modeling, and elevated irregular workpieces. This router also supports full-scale customization, allowing you to flexibly adjust processing dimensions, upgrade core components, and add or remove functional features to meet the diverse production needs of various industries.
    02.
    Exceptional Value,
    Premium Quality and Service at an Accessible Price.
    The CK-1325-ST offers a competitive price point and low initial investment, providing a distinct cost-performance advantage. Despite its affordability, the machine is built with high-quality Spire Series core components. It includes the exclusive Spire service package: an industry-leading five-year free warranty, one-on-one after-sales support, 24-hour technical assistance, and lifetime maintenance. The combination of high-performance hardware and premium service ensures your investment delivers maximum value.
    03.
    T-Slot Table,
    Flexible Clamping Without the Need for Vacuum.
    Featuring a high-strength aluminum alloy T-slot table, the machine offers excellent pressure resistance, wear resistance, and corrosion resistance, maintaining a flat, warp-free surface over long-term use. The standardized T-slot layout allows for flexible compatibility with various clamps and fixtures, eliminating the need for a vacuum pump. Clamping positions are fully adjustable, enabling the quick and secure fixing of both regular sheets and irregular workpieces. This simplified setup bypasses the complexity of vacuum systems, effectively boosting daily processing efficiency.
    04.
    Comprehensive Protection,
    Stable and Reliable Operation.
    Built with a heavy-duty frame and a high-performance transmission system, the structure is rigid and stable, offering superior vibration damping and resistance to deformation. This ensures smooth and consistent performance even during prolonged continuous operation. The CNC router is equipped with multiple Schneider Electric safety protections to ensure comprehensive operator safety. Additionally, the user-friendly interface lowers the learning curve for beginners, while the low-failure-rate design makes daily maintenance effortless. It delivers industrial-grade stability alongside operational simplicity, providing a safe, worry-free, and durable solution for long-term production.

    Choosing the
    Spire 1325 CNC Router
    means choosing

    More ideal procurement solution
    Obtain Spire grade heavy-duty industrial structures and premium core configurations at a highly competitive investment cost. By combining a lower initial expenditure with the exclusive Spire after-sales ecosystem, you achieve high-quality, sustainable long-term production with a significant cost-performance advantage.
    More versatile production capabilities
    This CNC router supports personalized customization of machining dimensions, stroke heights, and functional configurations. It flexibly adapts to both standard sheets and elevated, irregular workpieces. Seamlessly switch between diverse machining modes to meet the production demands of any scenario with ease.
    More reassuring long-term production
    The robust, rigid frame is equipped with high-precision, durable transmission components, ensuring the machine remains deformation-free and maintains consistent accuracy even under high-intensity, long-term operation. Integrated with multiple safety protections, it guarantees stable and reliable performance for total peace of mind.
    More reliable long-term protection
    Benefit from the high-standard Spire Series after-sales service, including an industry-leading five-year free warranty, 24-hour online technical support, lifetime maintenance, and free software upgrades. With stable operation and a low failure rate, this machine effectively reduces long-term O&M (Operation and Maintenance) costs, providing a comprehensive guarantee for continuous production.

    High-Rigidity Base, Custom Elevated Gantry

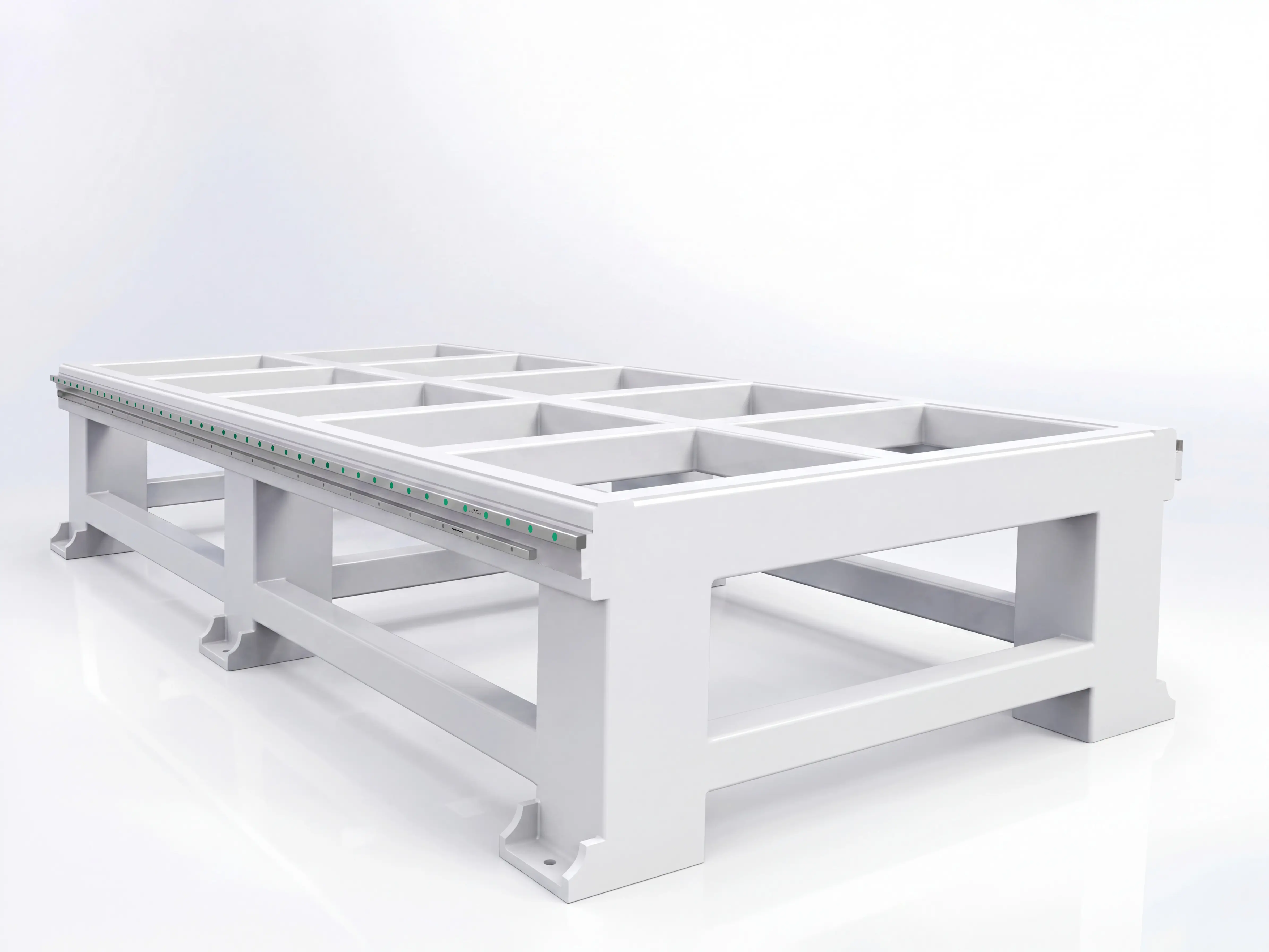

    Heavy-duty bed of Spire 1325 CNC router

    Heavy-Duty Bed Base Redesigned for Customized Height

    • The base of the Spire 1325 CNC Router is built to a core standard of absolute stability. It utilizes an all-welded frame made of thickened square steel tubing. Compared to the thin-walled tubing found in standard machines, this structure significantly enhances overall rigidity and resistance to deformation. It easily handles the heavy load pressures exerted by 1300 × 2500mm large-format sheets and workpieces with a 400mm machining height. The bed structure has been optimized through professional Finite Element Analysis (FEA) to precisely eliminate stress concentration points. Furthermore, the mounting positions for the guide rails and racks are reinforced with extra-thick steel strips, and the bed surface is entirely covered with thickened steel plating, providing a rock-solid foundation for long-term, stable operation.
    • To completely eliminate the risk of frame deformation and ensure long-term machining precision, every bed base undergoes a dual-aging treatment process (vibratory stress relief + annealing). This process effectively eliminates residual internal stresses generated after welding, preventing structural shifts over years of use. It also further enhances steel toughness, preventing weld cracking or fatigue even under heavy loads and high-frequency machining cycles.
    • Distinguishing it from ordinary CNC routers, the CK-1325-ST features a unique dual-row vertical parallel mounting structure for the guide rails and racks. This design significantly boosts load capacity and operational stability, allowing the machine to support a customized 400mm processing height while effectively offsetting any center-of-gravity shifts caused by the increased elevation. This vertical parallel configuration ensures that the force exerted on the rails and racks is distributed more evenly. The result is a smoother transmission that meets the rigorous demands of high-precision and high-load machining scenarios.

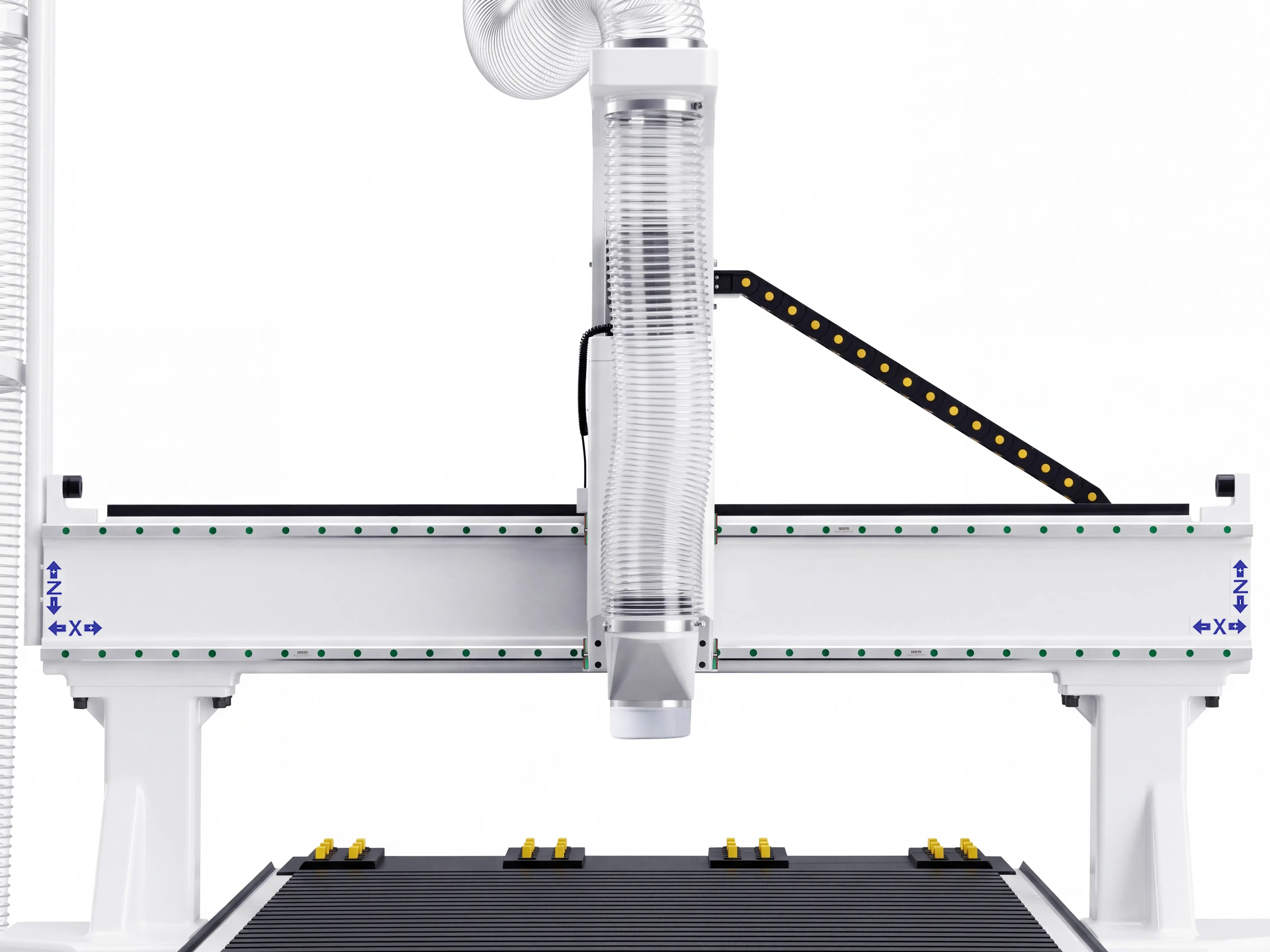

    High rigidity gantry beams of Spire 1325 CNC router

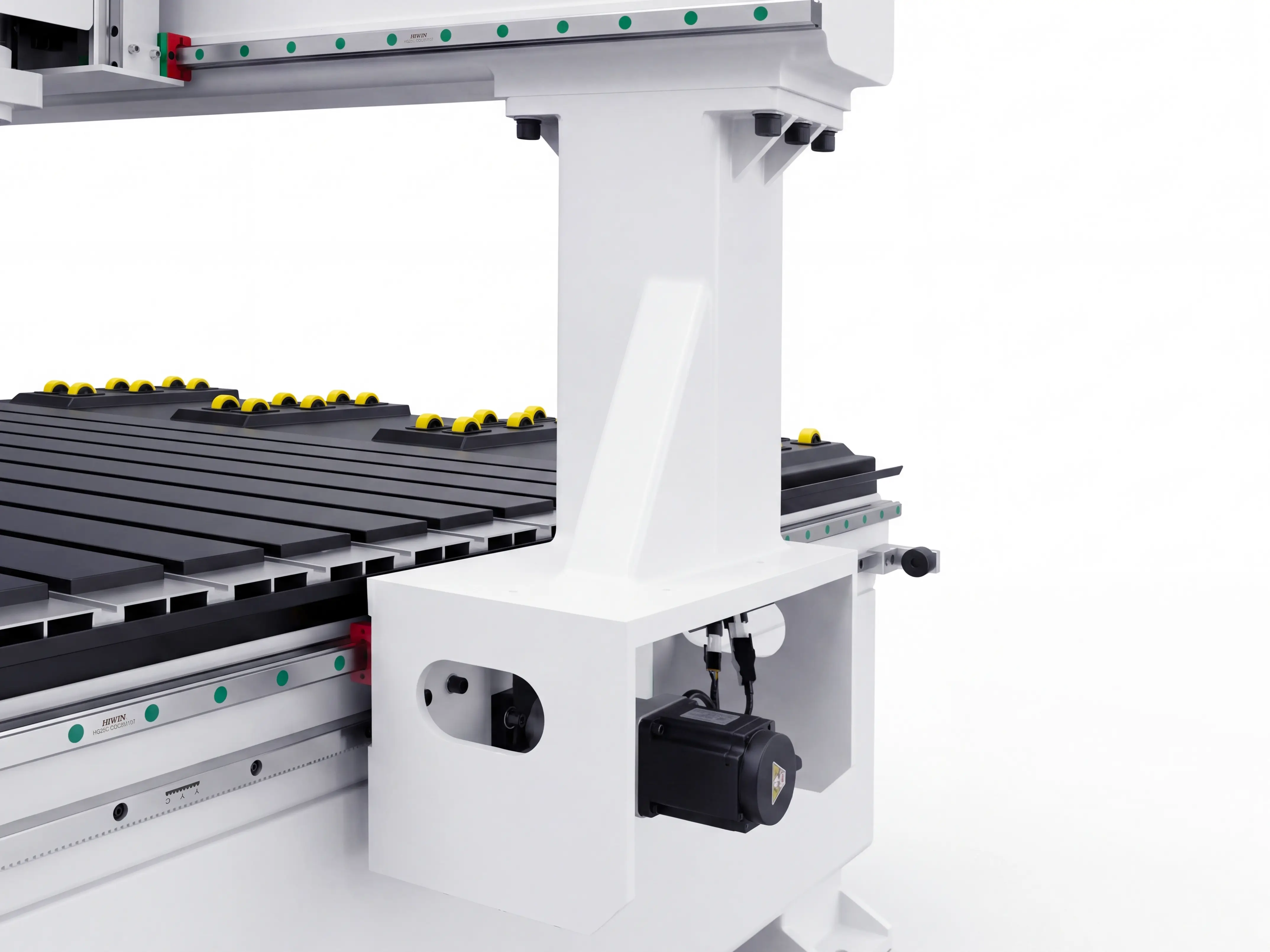

    High rigidity gantry columns of Spire 1325 CNC router

    Reinforced Beam & Elevated Columns

    • Equipped with a heavy-duty reinforced gantry beam forged from high-strength steel, the machine offers excellent rigidity and effectively resists deformation caused by high-load and high-speed machining. The mounting base for the guide rails and racks on the beam is welded with thickened steel strips, further strengthening critical areas to ensure operational stability.
    • Both sides are equipped with customized elevated gantry columns, supporting a maximum processing height of 400mm. These columns utilize additional reinforced diagonal braces to provide stable support for the beam and balance the machine's center of gravity, preventing wobbling at increased heights and adapting to heavy-duty machining requirements.
    • The connection surfaces between the columns, bed, and beam, as well as the mounting surfaces for the beam’s guide rails and racks, are all precision-milled using a milling machine to ensure a seamless, tight fit. Combined with an optimized structural design, this significantly enhances the overall strength and operational stability of the Spire CNC Router's gantry system.

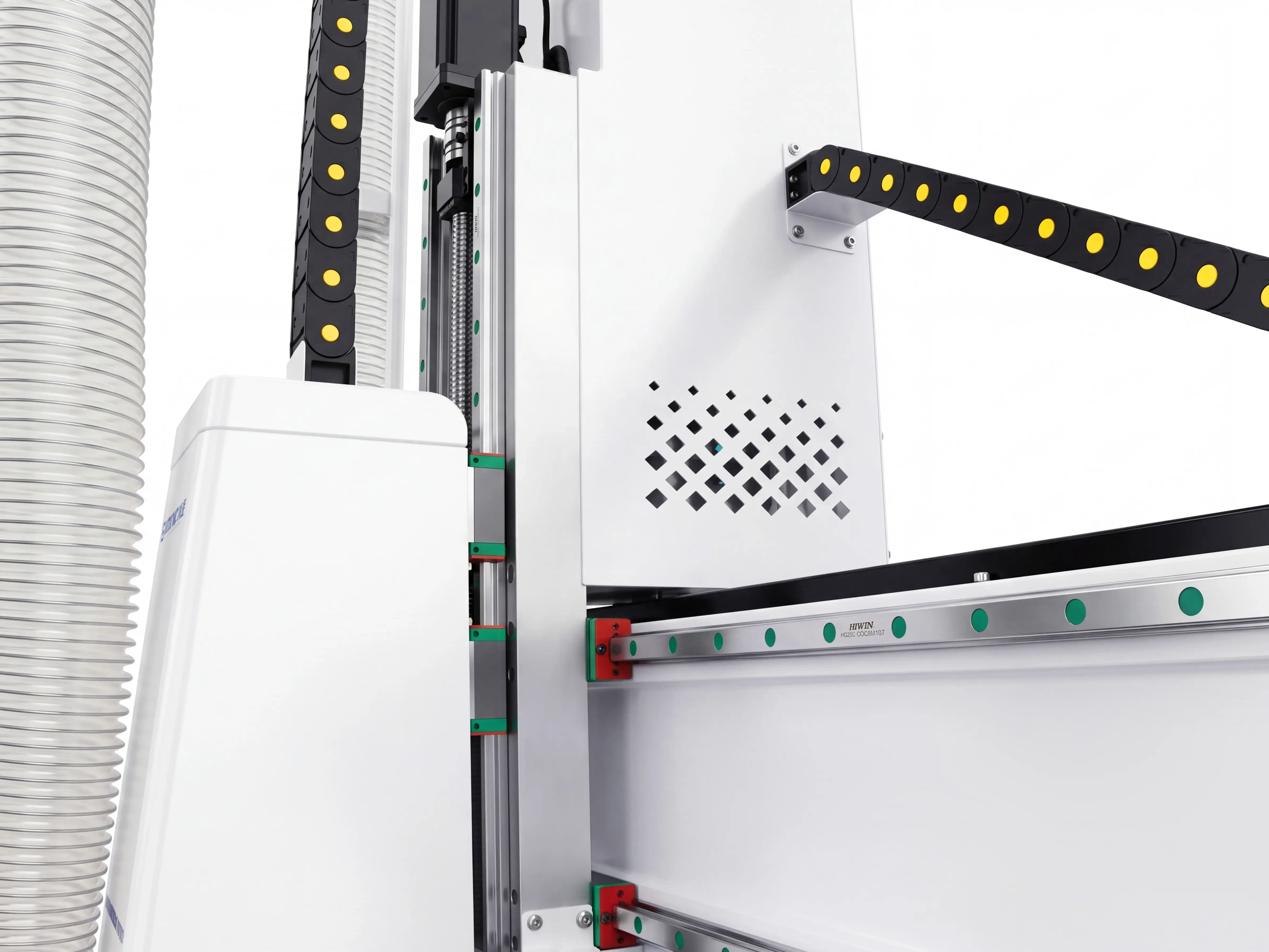

    Anodized aluminum z-axis mounting plate of Spire 1325 CNC router

    46mm Thickened Anodized Aluminum Alloy Mounting Plate

    • The spindle mounting plate is crafted from 46mm thick anodized aluminum. Compared to ordinary plates, it offers significantly higher structural integrity, providing a rock-solid foundation for the Z-axis transmission system and spindle. This ensures the CK-1325-ST remains stable and reliable even when machining tall workpieces or handling heavy spindle loads.
    • The surface undergoes a professional hard-anodizing treatment, creating a dense protective layer. This finish provides superior corrosion and wear resistance, effectively shielding the component from oil, coolant, and dust—substantially extending the router's service life in demanding industrial environments.
    • By utilizing high-grade aluminum alloy, the plate achieves a perfect balance between high rigidity and a lightweight profile. Compared to traditional steel plates, the reduced weight lowers the inertia of the Z-axis. This optimization enhances the response speed and operational agility of the CNC router during high-frequency reciprocating movements, ensuring smoother and more precise machining.

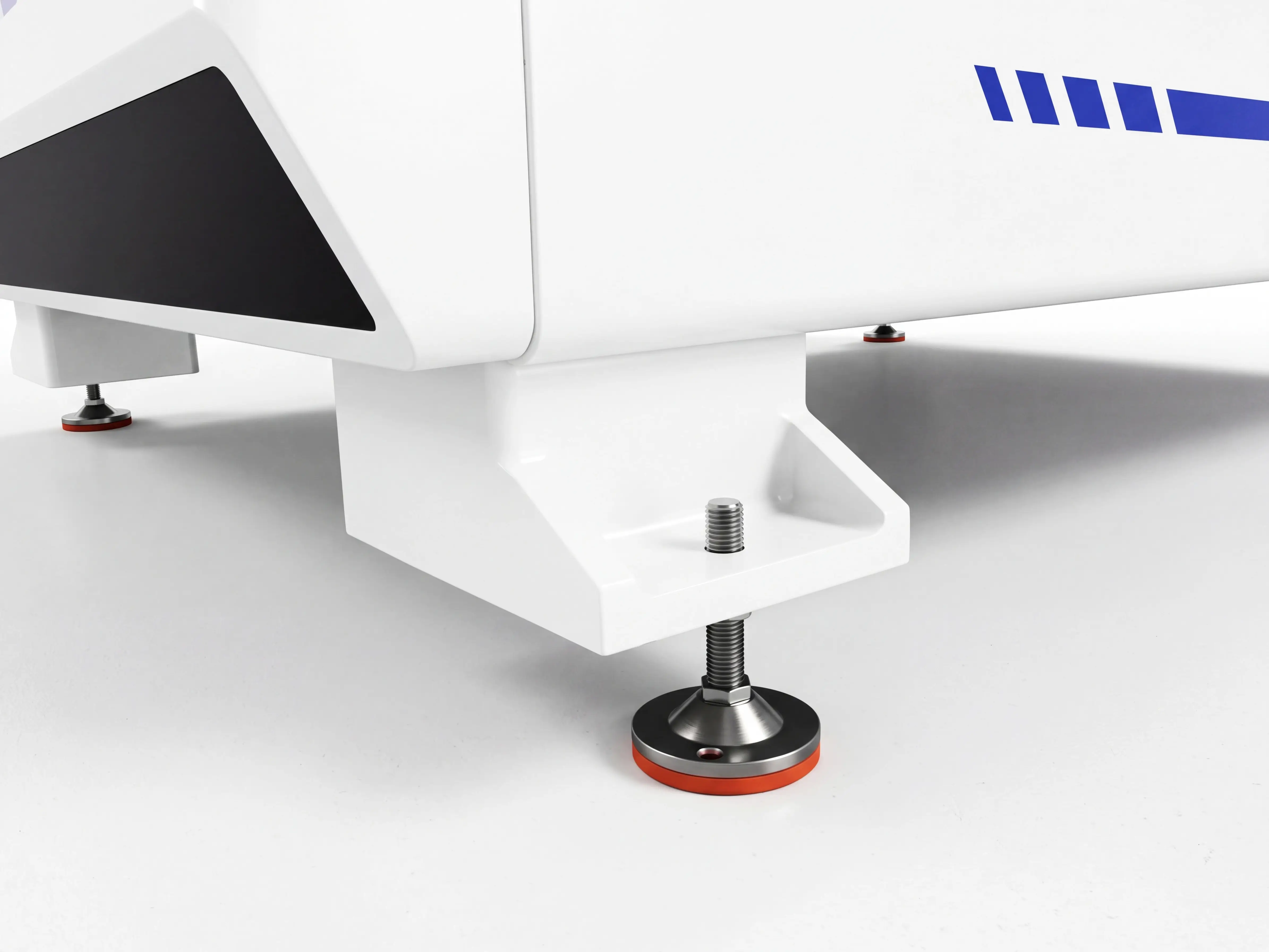

    Adjustable leveling feet for Spire 1325 CNC router

    High-Strength Leveling Feet

    • The bed base is equipped with six reinforced leveling feet, engineered for exceptional durability. These feet stably support the machine's full weight and the dynamic loads generated during machining. Providing a reliable foundation that meets the high load-bearing requirements of a CNC router, they ensure the machine remains steady from the ground up.
    • Each leveling foot features a threaded height-adjustment design, allowing for rapid and precise calibration of the machine's level state to ensure consistently smooth operation. Once leveled, locking nuts can be tightened to secure the position, effectively preventing any shifts or misalignment during high-speed production.
    • The bottom of each foot is fitted with high-quality anti-slip buffer rubber pads. These pads significantly increase friction with the floor to prevent sliding during machining. Simultaneously, they effectively absorb operational vibrations, protecting machining accuracy and extending the equipment's lifespan while further enhancing the overall stability of the CNC router machine.
    Click the icon labels to view different machine parts

    Globally Sourced Components, Enabling High-Precision Transmission

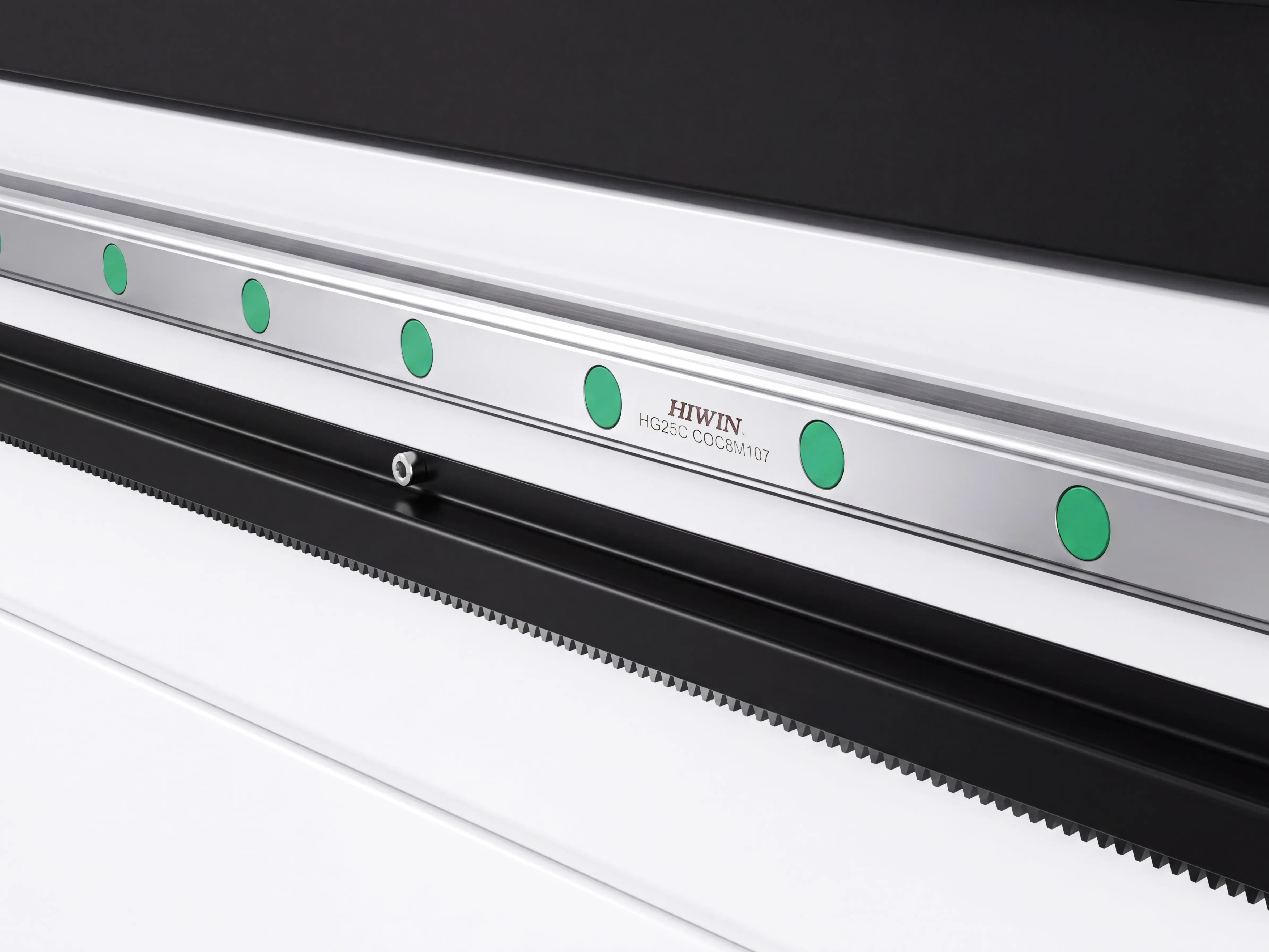

    Hiwin (Taiwan) P level 25 linear guideways of Spire 1325 CNC router

    HIWIN (Taiwan) P-Level 25mm Linear Guideways

    • All three axes (X, Y, and Z) are equipped with Taiwanese HIWIN 25mm P-level heavy-duty linear guides and sliders. Featuring a four-row circular arc groove and a 45° contact angle design, these guides possess a self-aligning capability that absorbs assembly tolerances of the mounting surfaces. This provides a high-precision core foundation for the Spire Router's accurate machining.
    • The 25mm wide guides and sliders adhere to the P-grade (Precision) high-accuracy standard. Utilizing recirculating ball technology, the friction coefficient is reduced to just 1/50th of traditional sliding guides. This ensures fluid, stutter-free movement that is equally capable of high-frequency reciprocating motions and heavy-duty load-bearing processing.
    • Forged from high-strength materials and treated with vacuum quenching and precision grinding, these components offer outstanding rigidity and wear resistance. The four-row structure effectively handles loads from multiple directions, preventing deformation over time. Additionally, the sliders feature an integrated grease nipple design for easy lubrication and maintenance. Their high interchangeability ensures the CK-1325-ST maintains long-term high-precision operation, significantly extending the equipment's service life and overall stability.

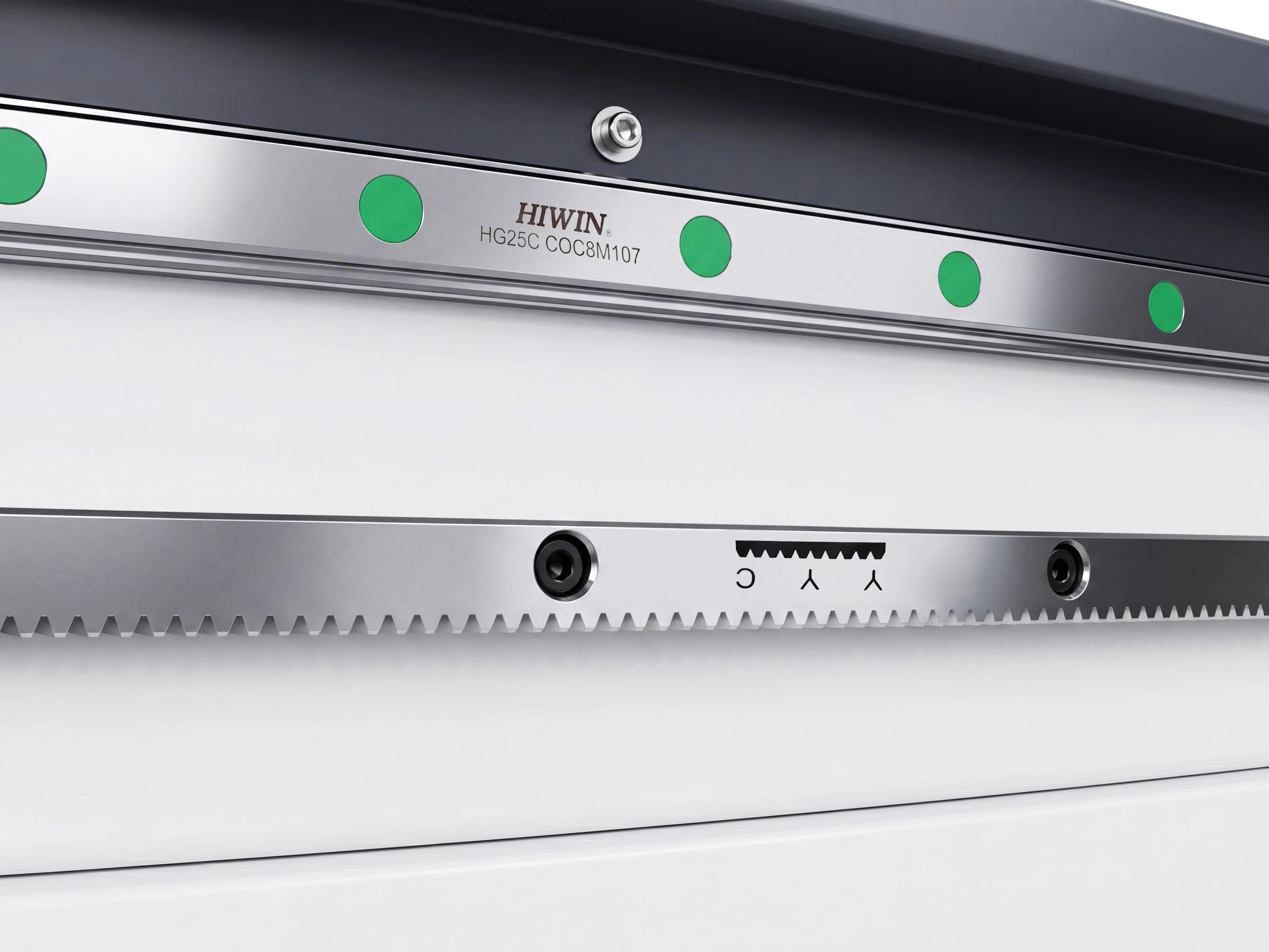

    YYC (Taiwan) ground helical rack & pinion of Spire 1325 CNC router

    YYC (Taiwan) High-Precision Ground Helical Rack & Pinion

    • The X and Y axes utilize Taiwanese YYC ground helical racks. Compared to straight racks, the helical design ensures smoother engagement and more fluid transmission. Leveraging YYC’s exclusive precision grinding process, which includes multiple stages of grinding and polishing, the tooth surfaces are exceptionally smooth, providing a solid guarantee for the high efficiency and accuracy of the X and Y-axis movement.
    • This system offers over a 20% increase in load capacity compared to straight-tooth alternatives while significantly reducing operational noise. Forged from high-strength steel and treated with high-frequency quenching, the tooth surfaces are incredibly hard and wear-resistant. The grinding-grade precision ensures extremely low cumulative error, making it a perfect fit for the high-speed, long-stroke processing requirements of the CNC router machine.
    • These racks feature excellent interchangeability and connectivity, allowing them to be seamlessly joined to extend the travel stroke as needed. The surfaces are treated for rust and wear resistance, making maintenance simple and straightforward. This reliable transmission system is widely adapted to various precision machining scenarios, ensuring the Spire 1325 CNC Router performs consistently over time.

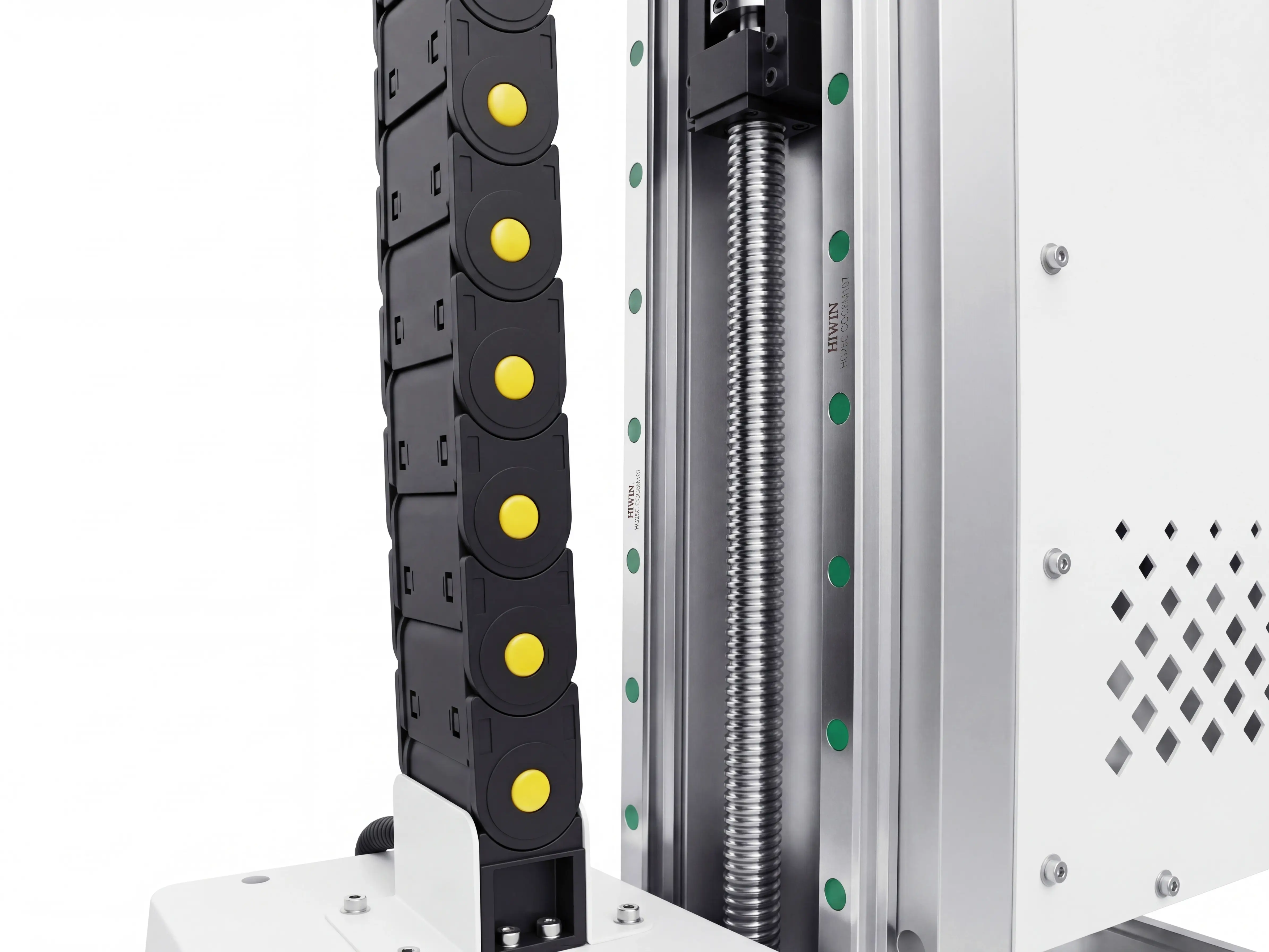

    TBI (Taiwan) ground ball screws of Spire 1325 CNC router

    TBI (Taiwan) High-Precision Ground Ball Screw

    • The Z-axis features a Taiwanese TBI ground-grade ball screw transmission system. Utilizing a Gothic arch groove design and optimized preloading, it effectively eliminates axial backlash, significantly enhancing system rigidity and operational stability. This ensures a smooth transmission that precisely converts the servo motor’s rotation into high-precision linear displacement.
    • Compared to traditional lead screws, this ball screw reduces driving torque by over 70% while offering much higher transmission efficiency. Thanks to high-precision grinding, it delivers exceptional lead accuracy, enabling fine-increment feeding without the "stick-slip" phenomenon (crawling). This results in more stable and reliable machining performance.
    • Manufactured from high-strength materials and subjected to rigorous heat treatment and precision grinding, the screw exhibits outstanding wear resistance and a long service life. It is engineered to handle multi-directional loads and is designed for simple maintenance, offering excellent durability and interchangeability for long-term industrial use.

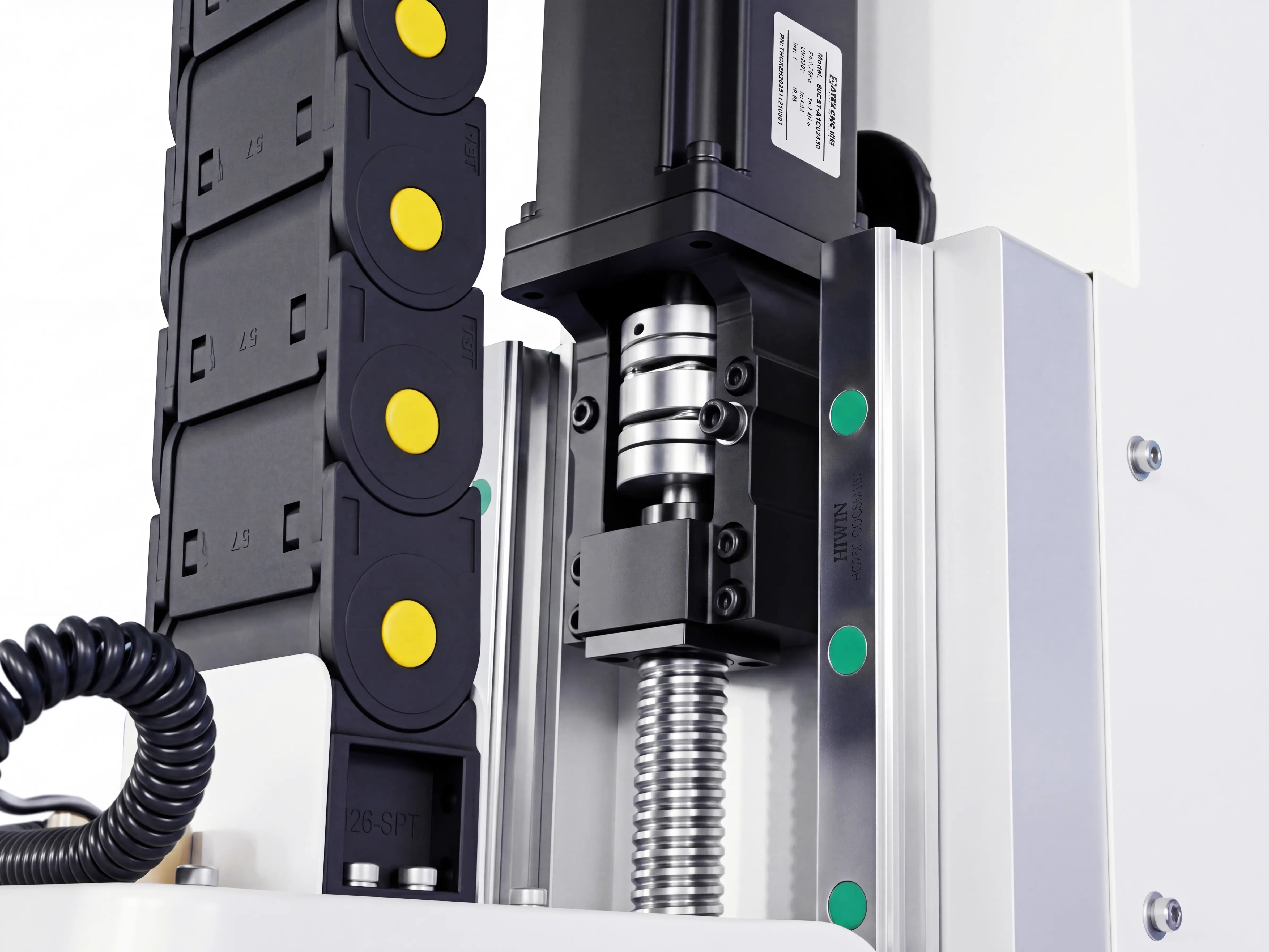

    High-precision diaphragm coupling of Spire 1325 CNC router

    Diaphragm Coupling

    • The Z-axis utilizes a double-diaphragm coupling to connect the servo motor and ball screw. Precision-machined from a single piece aluminum alloy, its compact and rigid structure eliminates the loosening risks associated with traditional multi-piece couplings. This ensures that power transmission within the CNC router remains highly efficient and stable.
    • Equipped with stainless steel diaphragms, the coupling offers exceptional wear resistance and toughness, effectively compensating for mounting misalignments between the motor and the screw. Compared to traditional plum-blossom couplings, this design provides higher structural strength and smoother transmission while avoiding common issues like material wear or aging.
    • Engineered for high-frequency reciprocating operation, this coupling maintains stable performance without deformation or damage, ensuring low-vibration and low-noise running. The lightweight aluminum structure combined with the fatigue-resistant properties of the stainless steel diaphragms allows the Spire 1325 CNC Router to easily handle the demands of high-load, high-precision machining.
    Shimpo (Japan) planetary of gear reducers of Spire 1325 CNC router

    SHIMPO (Japan) Planetary Gear Reducers

    • The X and Y axes are equipped with SHIMPO planetary gear reducers, featuring an integrated housing that is compact, rugged, and durable. Its superior sealing performance effectively isolates dust and oil from the machining environment, protecting internal components from wear. This maintenance-free design eliminates the need for disassembly or routine servicing, ensuring the transmission system remains hassle-free.
    • Utilizing a precision planetary gear structure, the system ensures tight gear engagement and high transmission efficiency. It effectively transfers motor power to the X and Y axes, significantly boosting torque output. This allows the CNC router to handle heavy-load machining conditions with ease while enhancing the overall dynamic response.
    • The reducers deliver high-precision transmission performance, effectively minimizing errors and significantly improving the motion accuracy of the X and Y axes. Furthermore, the lightweight design avoids adding unnecessary inertia, making it ideal for high-frequency movement and ensuring long-term reliability for high-precision processing needs.

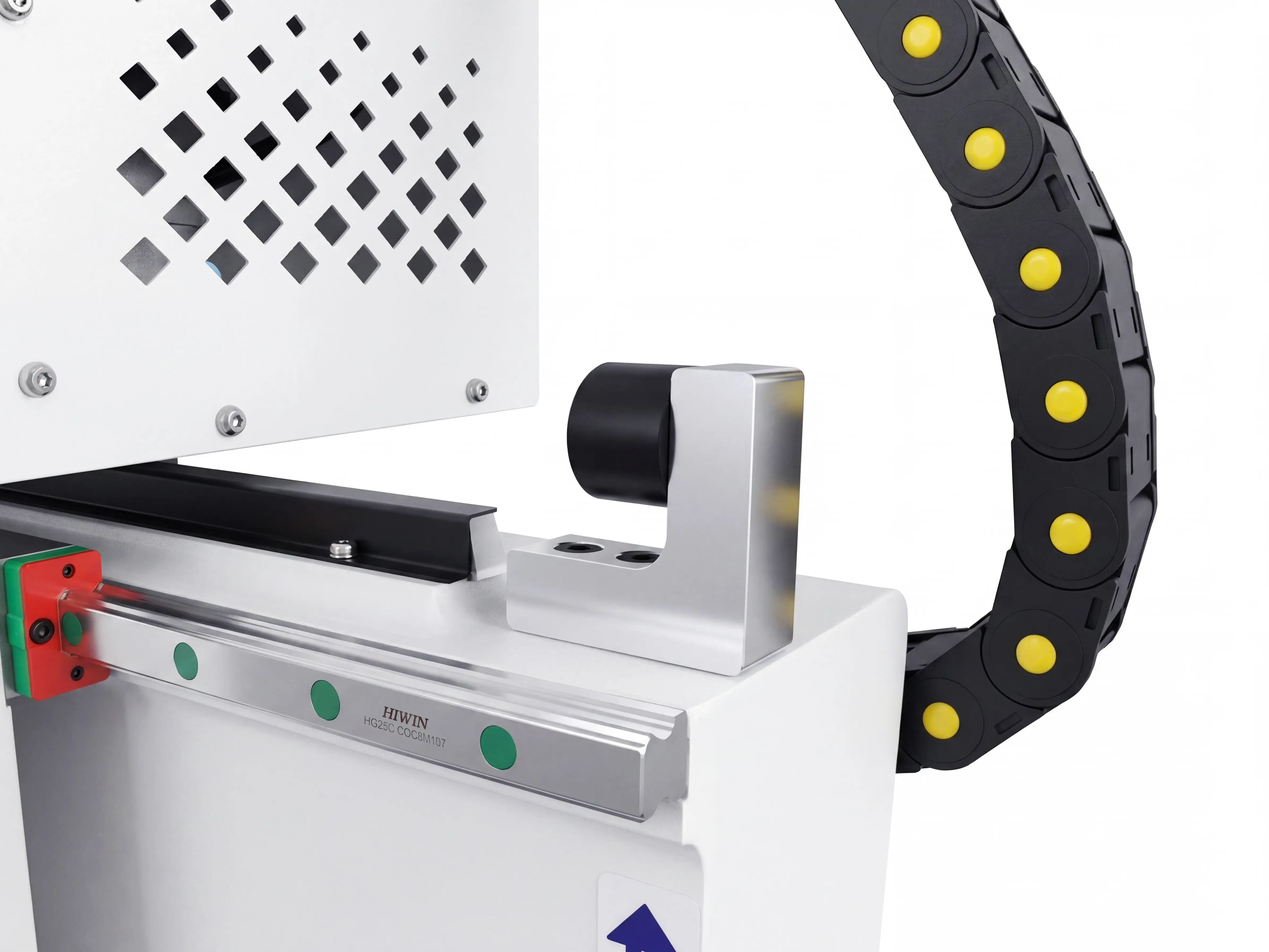

    High-strength aluminum alloy limit bumpers for X-axis of Spire 1325 CNC router

    High-Strength Aluminum Alloy Limit Bumpers

    • The Spire 1325 CNC Router features a dual-protection design, combining photoelectric soft limits with mechanical hard limits to provide safety redundancy for linear axis movement. High-strength aluminum alloy bumpers are installed at the stroke ends of the X and Y axes to provide hard-stop protection, effectively preventing component collisions and damage caused by over-travel.
    • These bumpers are precision-machined from a single piece of aluminum alloy, offering a compact structure and excellent rigidity with superior impact resistance. Additionally, the lightweight material helps minimize the load on the linear axes during high-speed operation.
    • The ends of the bumpers are integrated with rubber cushioning columns. In the event of contact, these columns absorb impact energy, significantly reducing potential damage to the linear axes and associated components, further enhancing the overall operational safety.
    Click the icon labels to view different machine parts

    Independent R&D, Crafting High-Performance Spindle

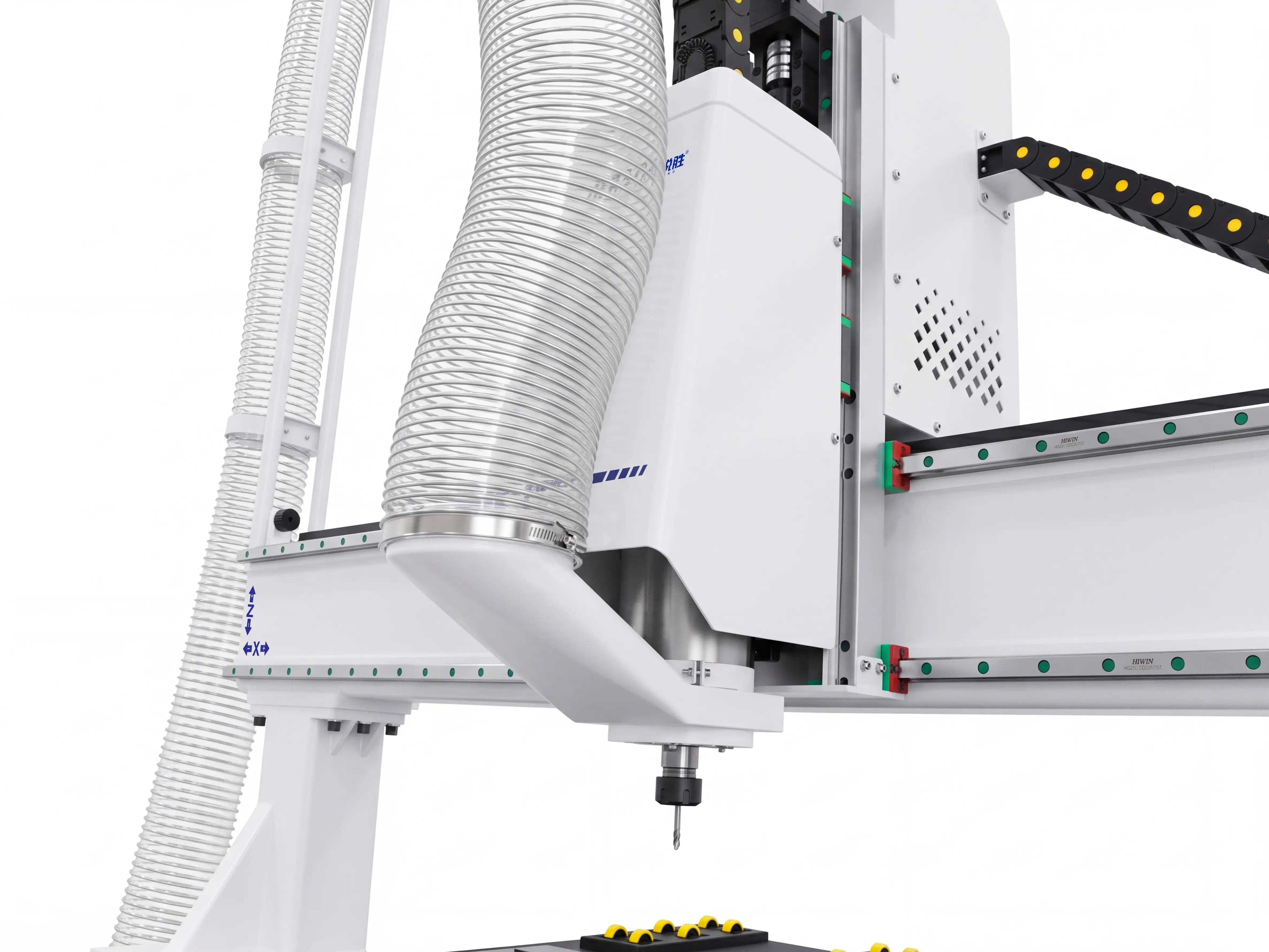

    CATEKCNC self-developed 5.5KW high-speed water-cooled spindle of Spire 1325 CNC router
    CATEKCNC self-developed 5.5KW high-speed water-cooled spindle of Spire 1325 CNC router

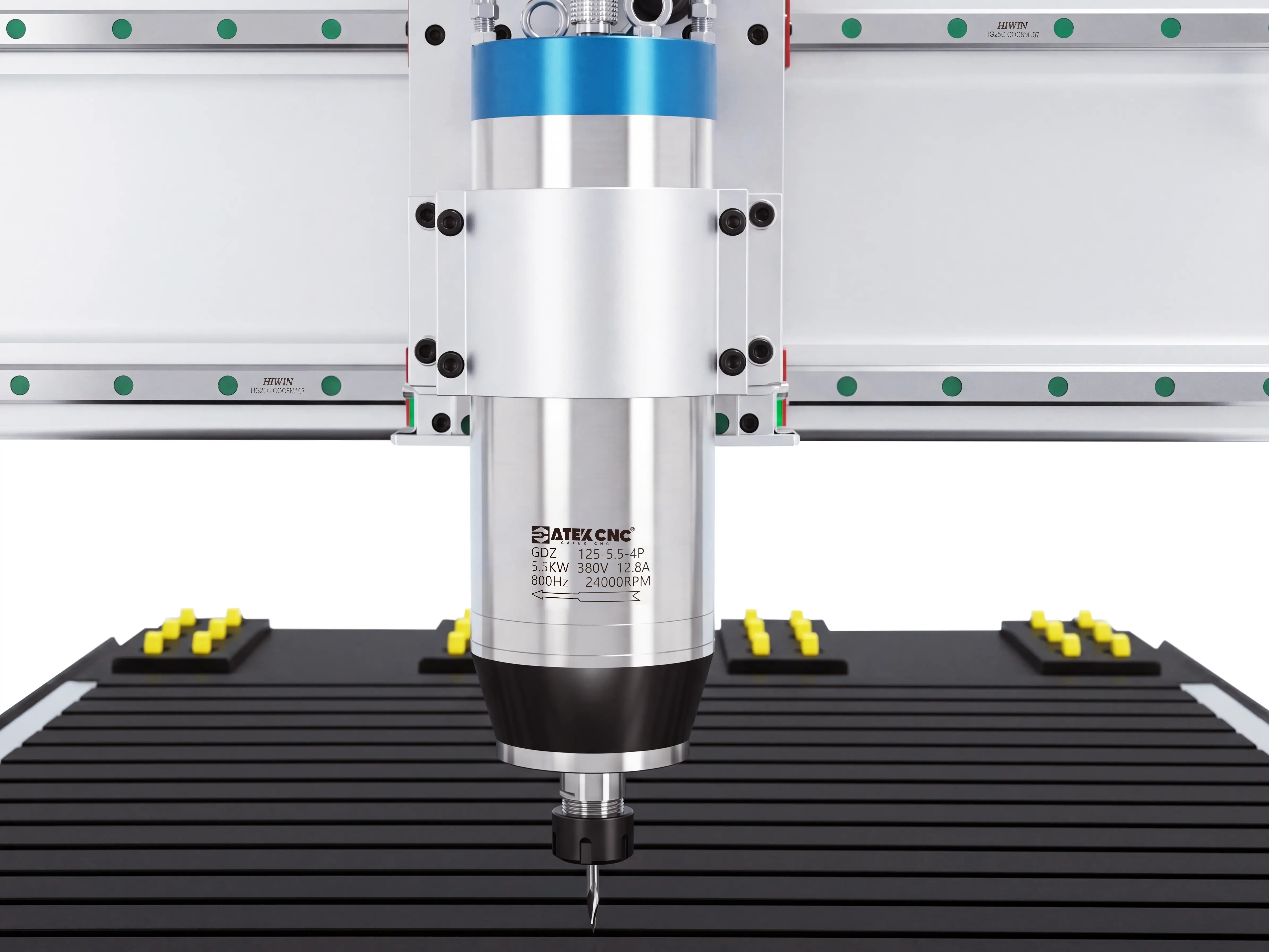

    CATEKCNC Self-Developed 5.5KW High-Speed Water-Cooled Spindle

    • The CK-1325-ST is powered by a CATEKCNC proprietary 5.5kW high-speed water-cooled spindle, leveraging in-house core technology to ensure both power and precision. The 5.5kW rated power delivers ample torque, while the paired Hpmont 7.5 kW VFD allows for flexible speed adjustment up to 24,000 rpm. This spindle exhibits exceptional dynamic balance and minimal vibration at high speeds, significantly boosting cutting and engraving efficiency while reducing tool wear and ensuring a superior surface finish.
    • Supporting the ER25 collet system, the spindle offers high concentricity and powerful clamping force. It securely holds various tools with shank diameters up to 16mm, meeting a wide range of requirements for engraving, milling, and slotting. The collet design facilitates quick tool changes, enhancing multi-process continuity and minimizing operational complexity. This prevents tool loosening or shifting during high-speed machining, making it ideal for high-volume and complex production tasks.
    • The system features an efficient water-cooling design powered by an S&A CW5200 industrial chiller. Compared to traditional air cooling, this setup offers significantly higher heat dissipation efficiency, rapidly removing heat generated during high-speed operation to maintain a stable working temperature. This precise temperature control effectively prevents thermal deformation—protecting machining accuracy—and extends the spindle's lifespan, even under the most demanding, long-term high-intensity processing cycles.

    CATEKCNC Servo System, Full Control of Every Linear Axis

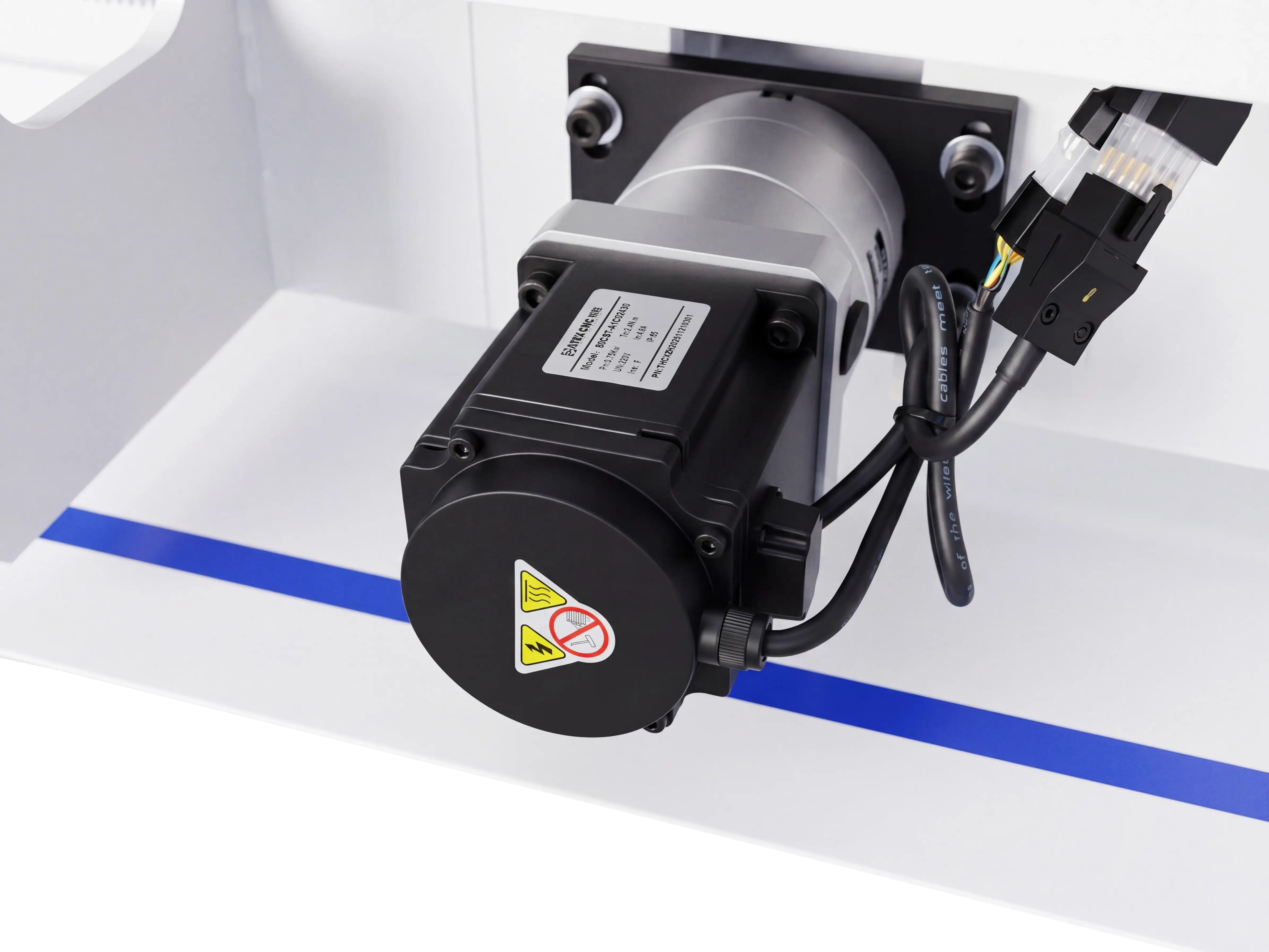

    CATEKCNC self-developed 750W servo motor for Y-axis of Spire 1325 CNC router

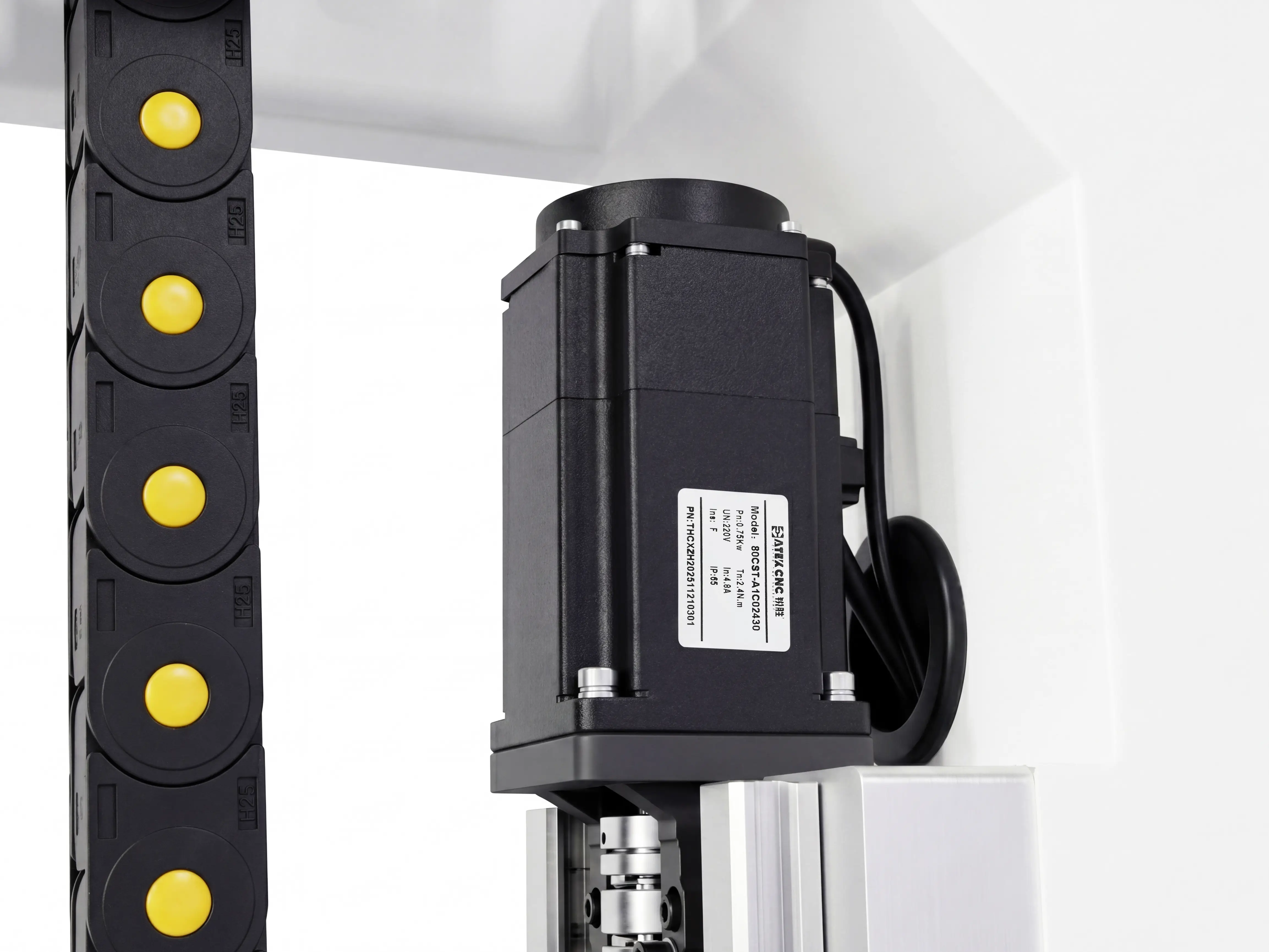

    CATEKCNC self-developed 750W servo motor for Z-axis of Spire 1325 CNC router

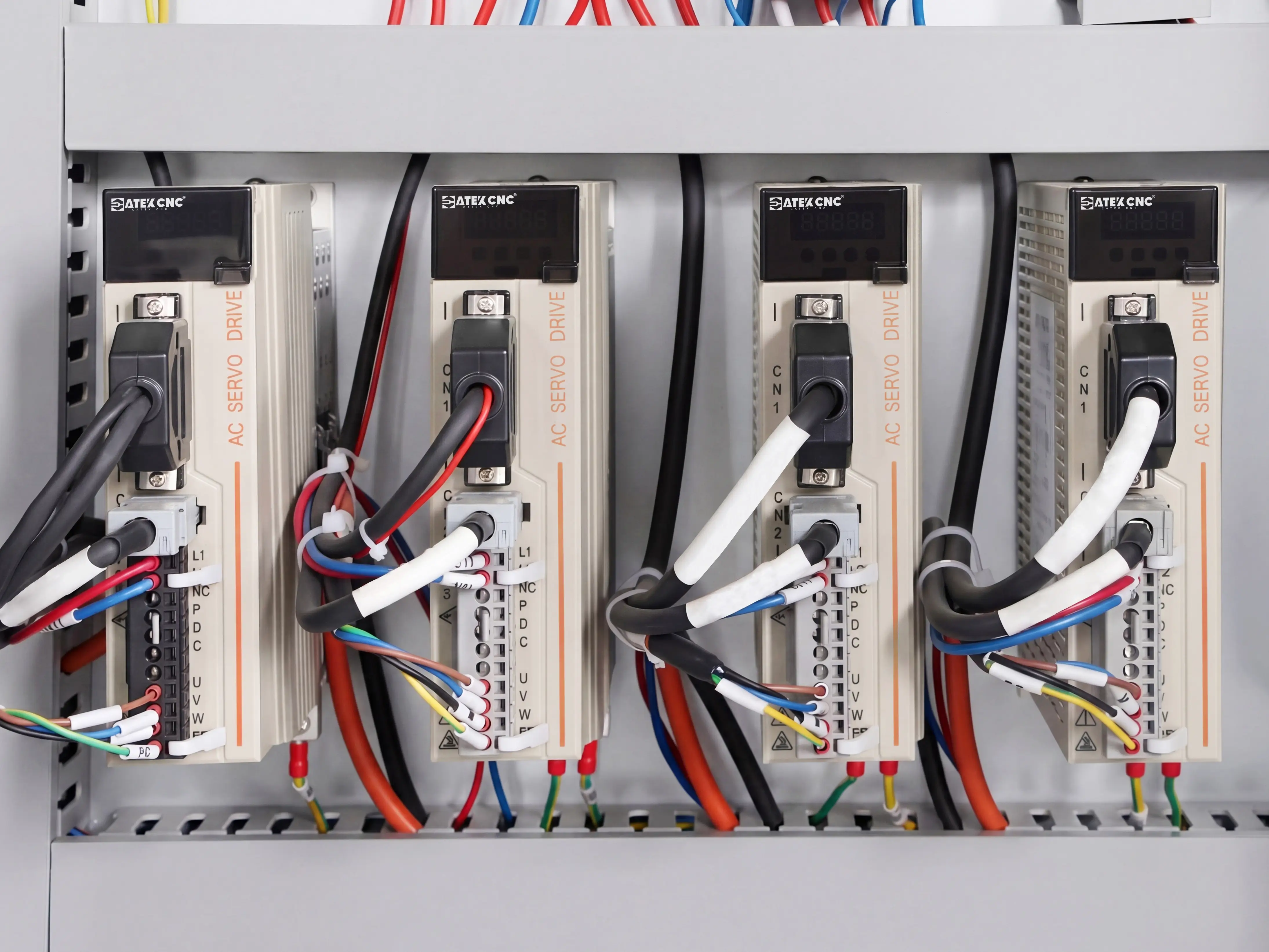

    CATEKCNC self-developed drive of Spire 1325 CNC router

    CATEKCNC Self-Developed Servo System

    • The X, Y, and Z axes are equipped with four 750W servo motors in total, all independently developed by CATEKCNC. These motors provide stable power output and high-precision control, ensuring the accurate and synchronized driving of all linear axes.
    • The Y-axis utilizes a dual-motor bilateral drive system, which eliminates the power shortages and operational jitter often found in single-motor setups, significantly boosting both motion accuracy and load capacity. The Z-axis is equipped with a servo motor featuring an integrated electronic brake; in the event of a shutdown or accidental power loss, it automatically locks to prevent the spindle head from dropping, ensuring equipment safety.
    • The drivers offer rapid response times to execute control commands with high fidelity. They feature integrated anti-collision protection and a multi-tiered alarm mechanism, providing real-time feedback on any abnormal status. This allows for quick troubleshooting and maintenance, further enhancing the processing efficiency and operational safety.

    Professional CNC System, Seamless PC-Style Operation

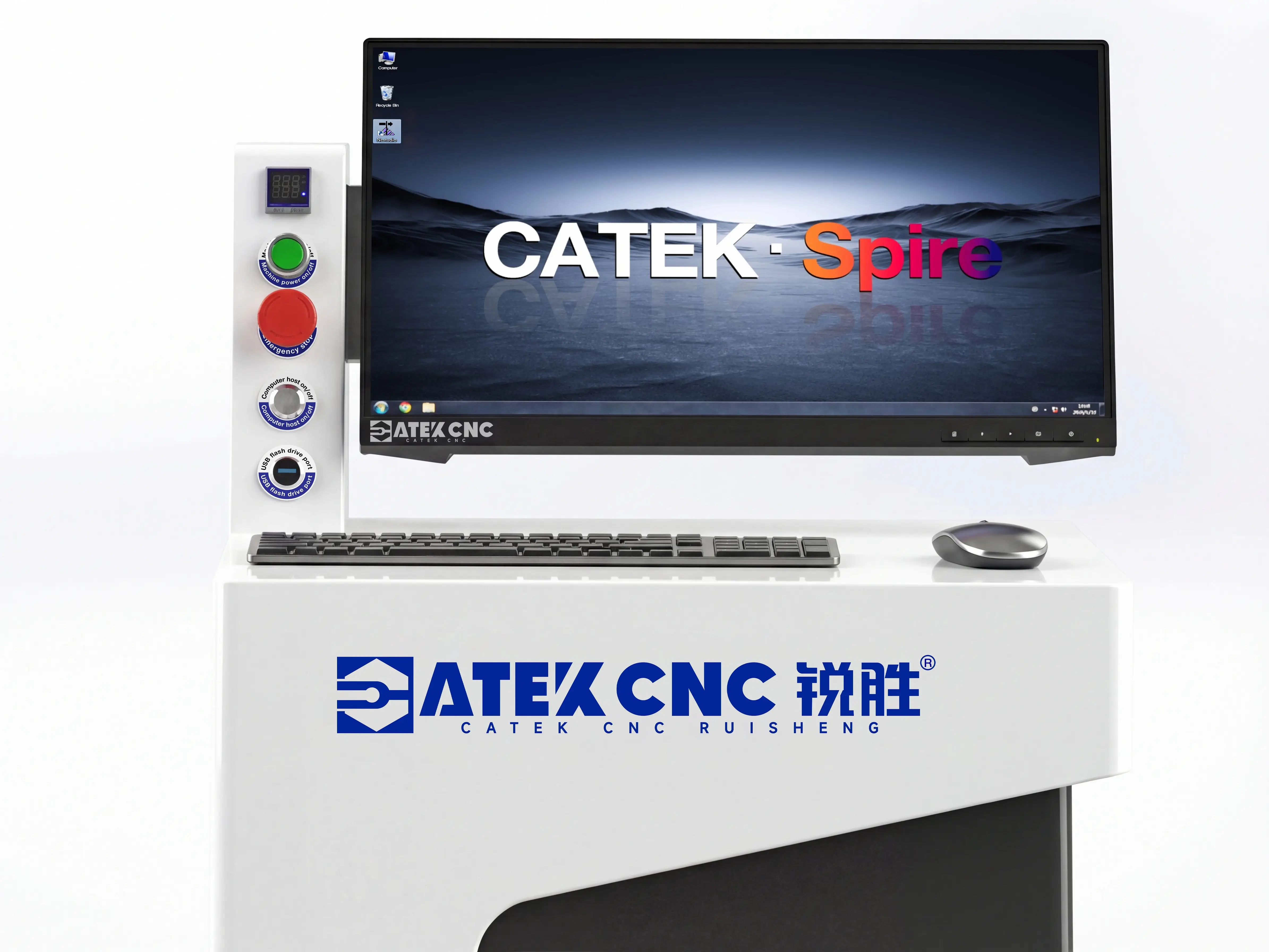

    Weihong PM95A control system for Spire 1325 CNC wood router

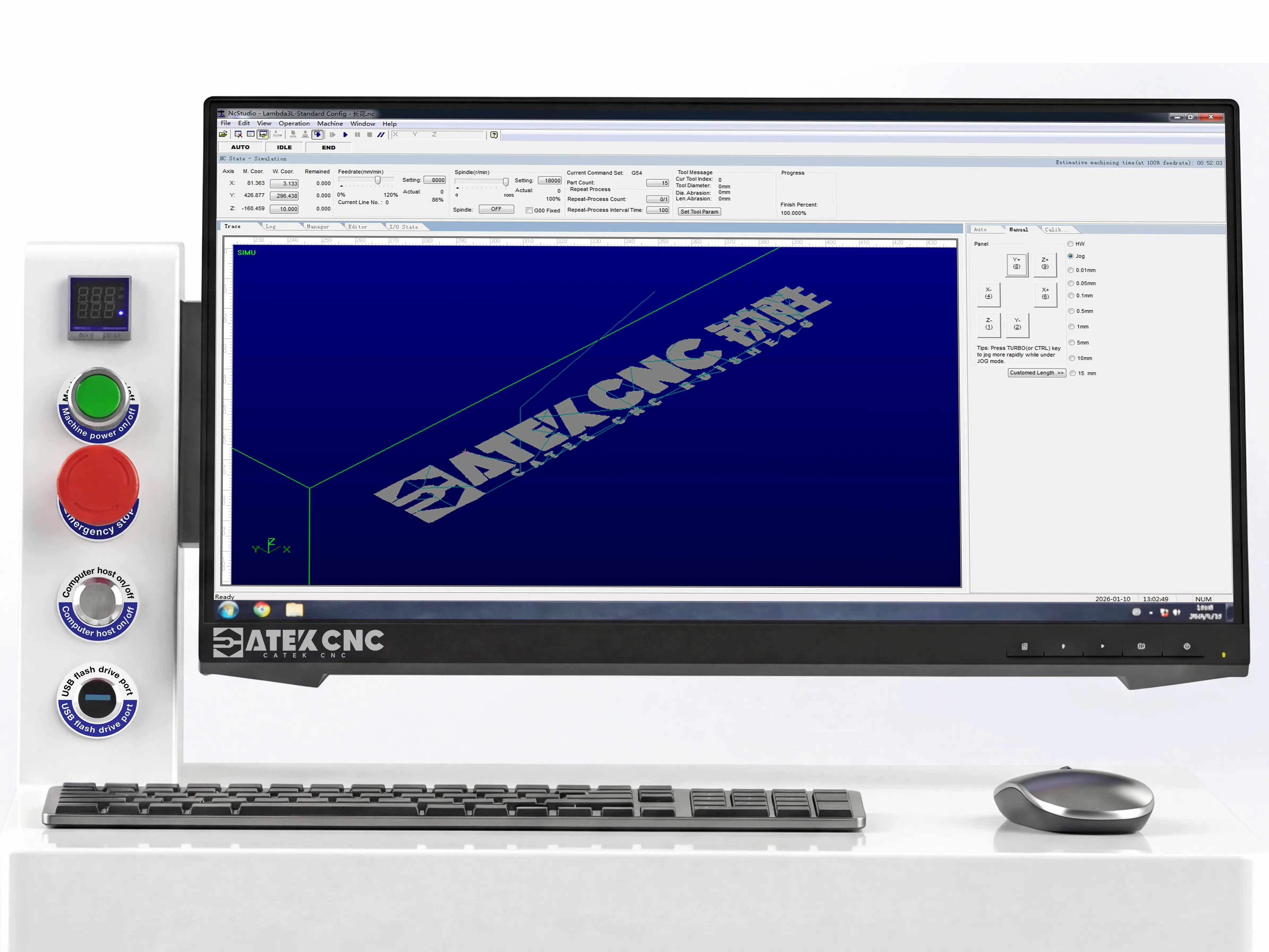

    Weihong NcStudio control software for Spire 1325 CNC wood router

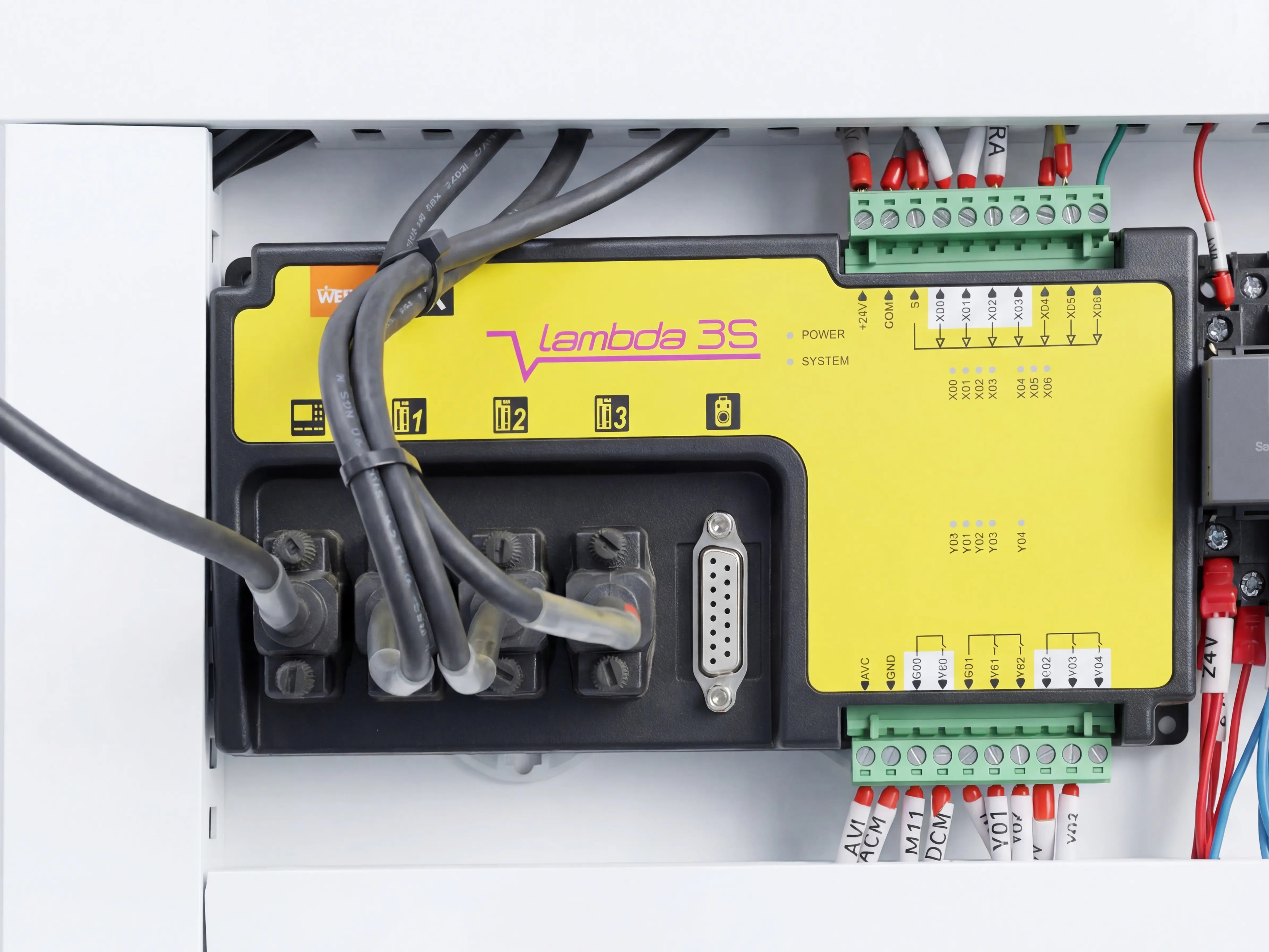

    Weihong Lambda 3S slave controller for Spire 1325 CNC wood router

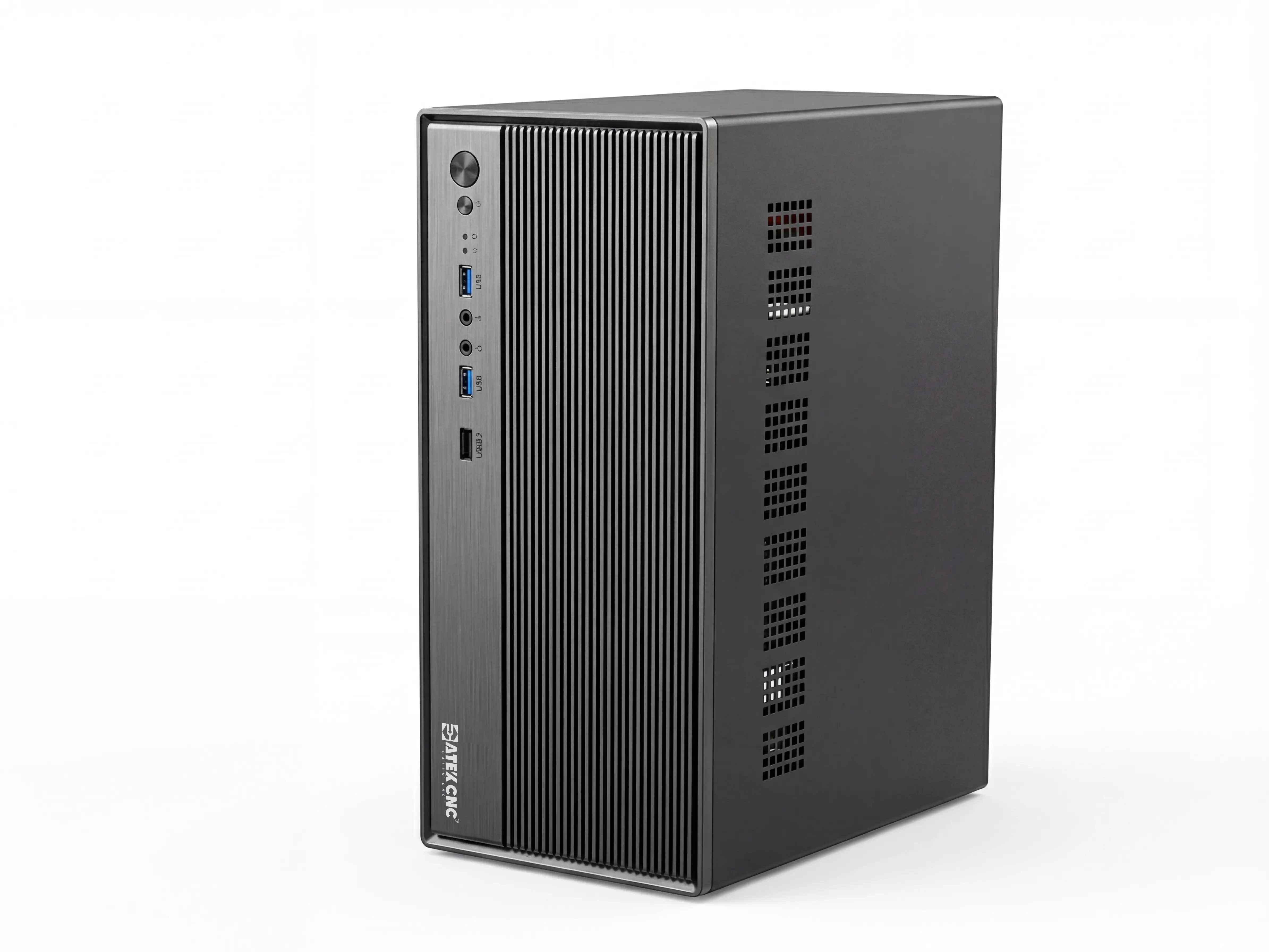

    Computer host for Spire 1325 CNC wood router

    SYNTEC (Taiwan) PM95A Control System

    • The Spire 1325 CNC Router is equipped with the WEIHONG PM95A control system, featuring a high-performance industrial PC (IPC) built directly into the control cabinet. It is paired with an external 21.5-inch LCD monitor and operated via a standard keyboard and mouse. The interface is clean, intuitive, and logically organized—similar to a standard desktop computer—enabling users to quickly configure parameters and input commands. This provides reliable control for efficient operation across a wide range of machining scenarios.
    • The system runs on NcStudio software, which supports a dual-language (Chinese/English) interface that can be toggled based on user preference. The software is designed for simplicity, requiring no specialized technical background; users can start the machining process simply by importing design drawings. This significantly reduces the learning curve and makes it accessible for beginners to get up to speed quickly.
    • The system offers robust compatibility, supporting various G-code files generated by mainstream CAD/CAM software to meet diverse design and processing needs. It also includes practical features such as breakpoint recovery and toolpath preview. Breakpoint recovery prevents material waste caused by unexpected power failures, while the preview function allows for a pre-check of the machining trajectory, reducing the risk of errors and ensuring a smooth, stable production process.

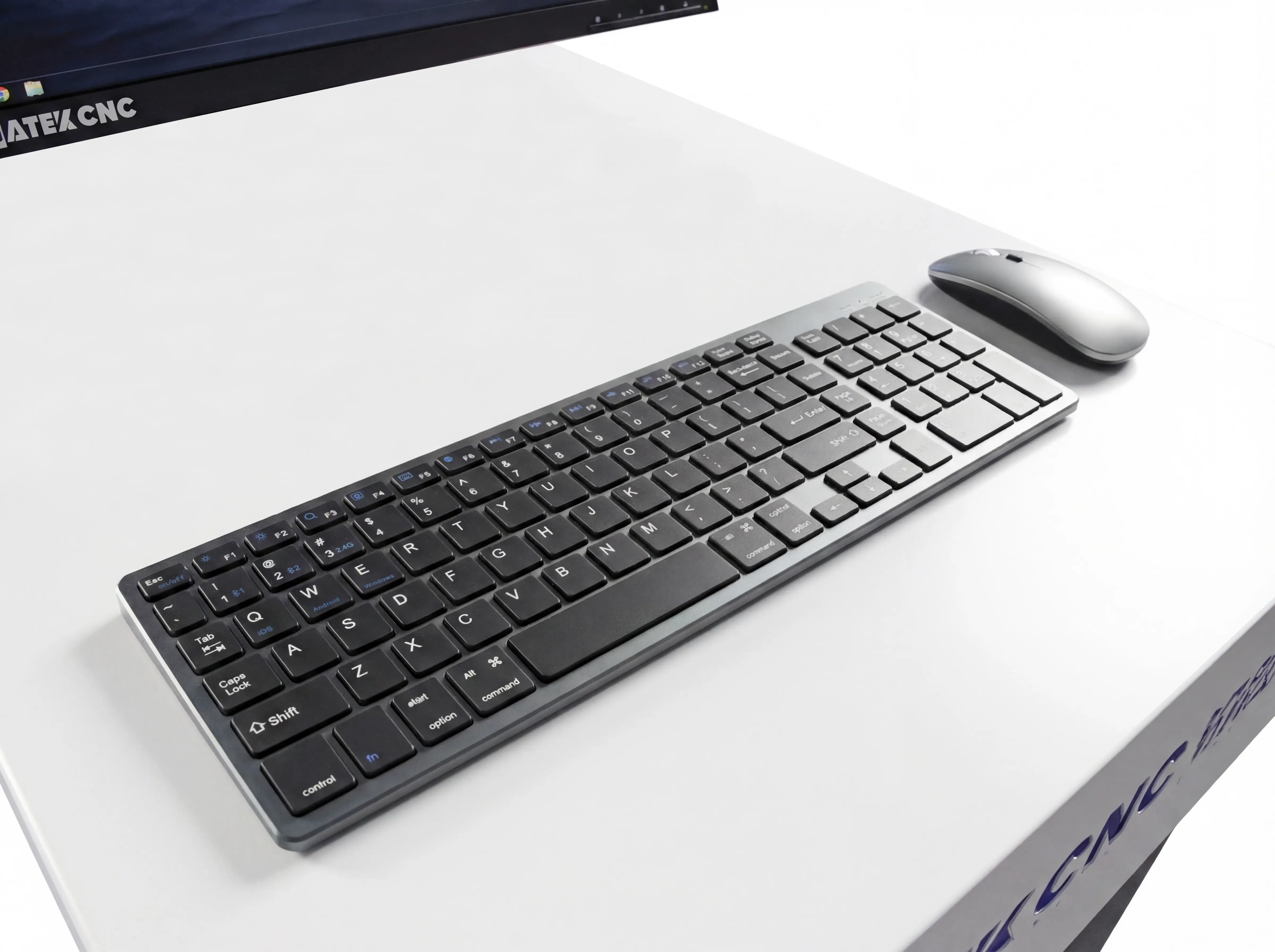

    Wireless keyboard and mouse for Spire 1325 CNC wood router

    Wireless keyboard and mouse

    • The keyboard and mouse utilize 2.4G wireless technology, eliminating the constraints of traditional cables for a more flexible and convenient workspace. This wireless freedom allows for seamless parameter settings and command inputs, significantly enhancing overall user convenience.
    • Engineered with excellent anti-interference capabilities, the system effectively resists electromagnetic interference (EMI) commonly found in complex workshop environments. This ensures stable signal transmission and real-time responsiveness, preventing lag or disconnection even during high-intensity machining to guarantee the accurate execution of every command.
    • With a transmission distance of up to 10 meters, operators can control the XYZ axis movement and initiate machining processes without needing to stand directly at the control cabinet. This expanded range provides greater operational flexibility and allows for a more efficient workflow on the shop floor.
    Click the icon labels to view different machine parts

    High-Quality Electrical Components, Perfecting Every Detail of Your CNC Router

    • Hpmont Variable Frequency Drive
    • Interlock and Short-Circuit Protection Switch
    • High-Quality Power Switches
    • Schneider Electrical Components
    • High-Reliability Aviation Plugs
    • Fully Enclosed High-Strength Cable Carrier
    • High-Quality Terminal Blocks

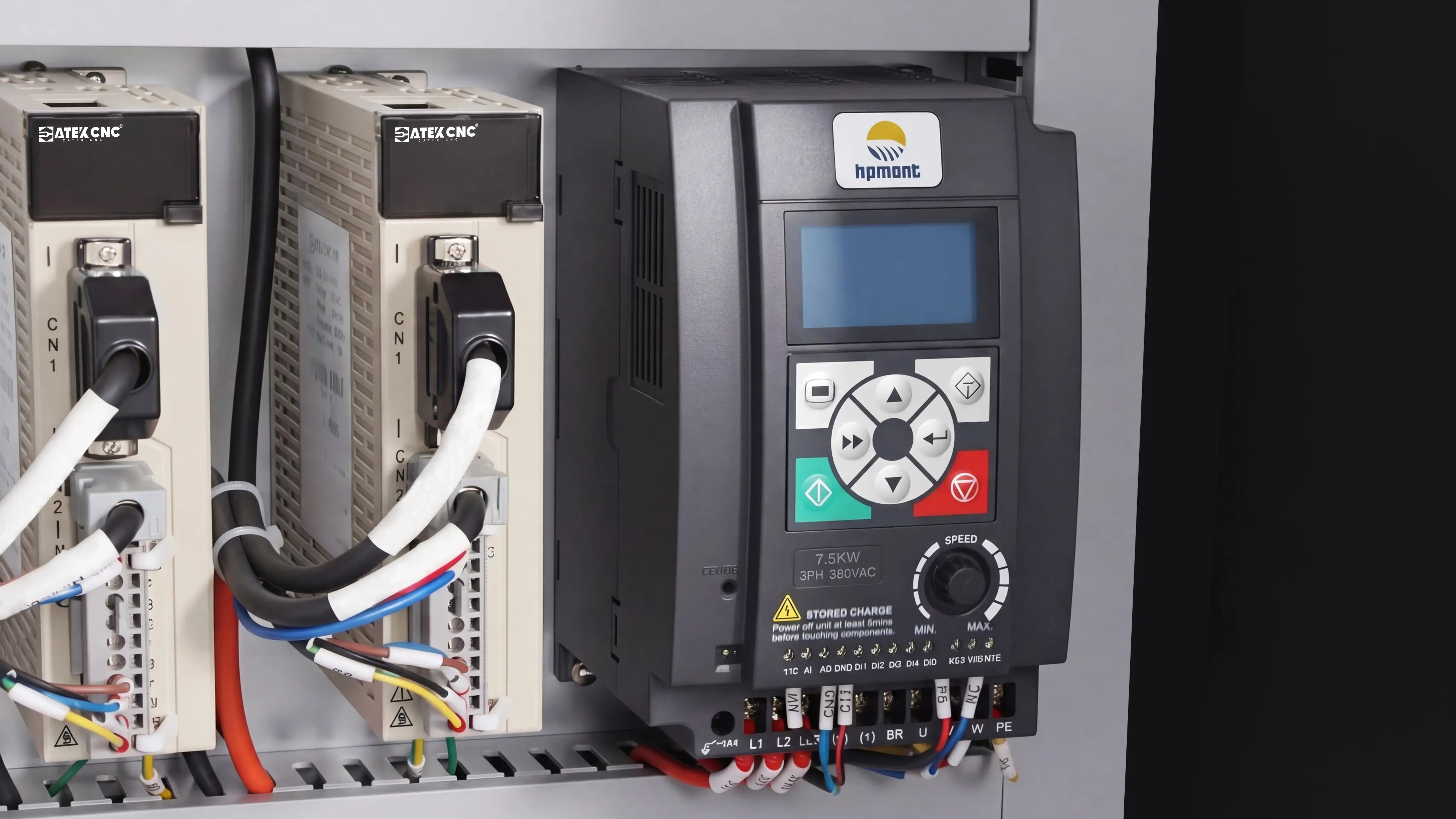

    • Hpmont variable frequency drive of Spire 1325 CNC router

      Hpmont Variable Frequency Drive

      • The system is equipped with a 7.5 kW Hpmont high-performance vector Variable Frequency Drive (VFD), providing stable and reliable speed control for the spindle. It allows for flexible speed adjustments tailored to different materials and processes, meeting a wide range of diverse engraving and machining requirements.
      • Perfectly matched with the CATEKCNC proprietary spindle, the VFD utilizes advanced vector control technology to deliver superior speed regulation. This ensures precise, jitter-free rotation and eliminates machining errors caused by speed fluctuations. By significantly reducing vibration and noise, it enhances the overall surface finish and processing quality.
      • The VFD features built-in multi-tier protection mechanisms that monitor the spindle’s status in real-time. It provides rapid response and alarms for anomalies such as overload, overcurrent, overheating, and undervoltage, automatically cutting power to prevent hardware damage. This significantly boosts the safety and reliability while lowering long-term maintenance costs.

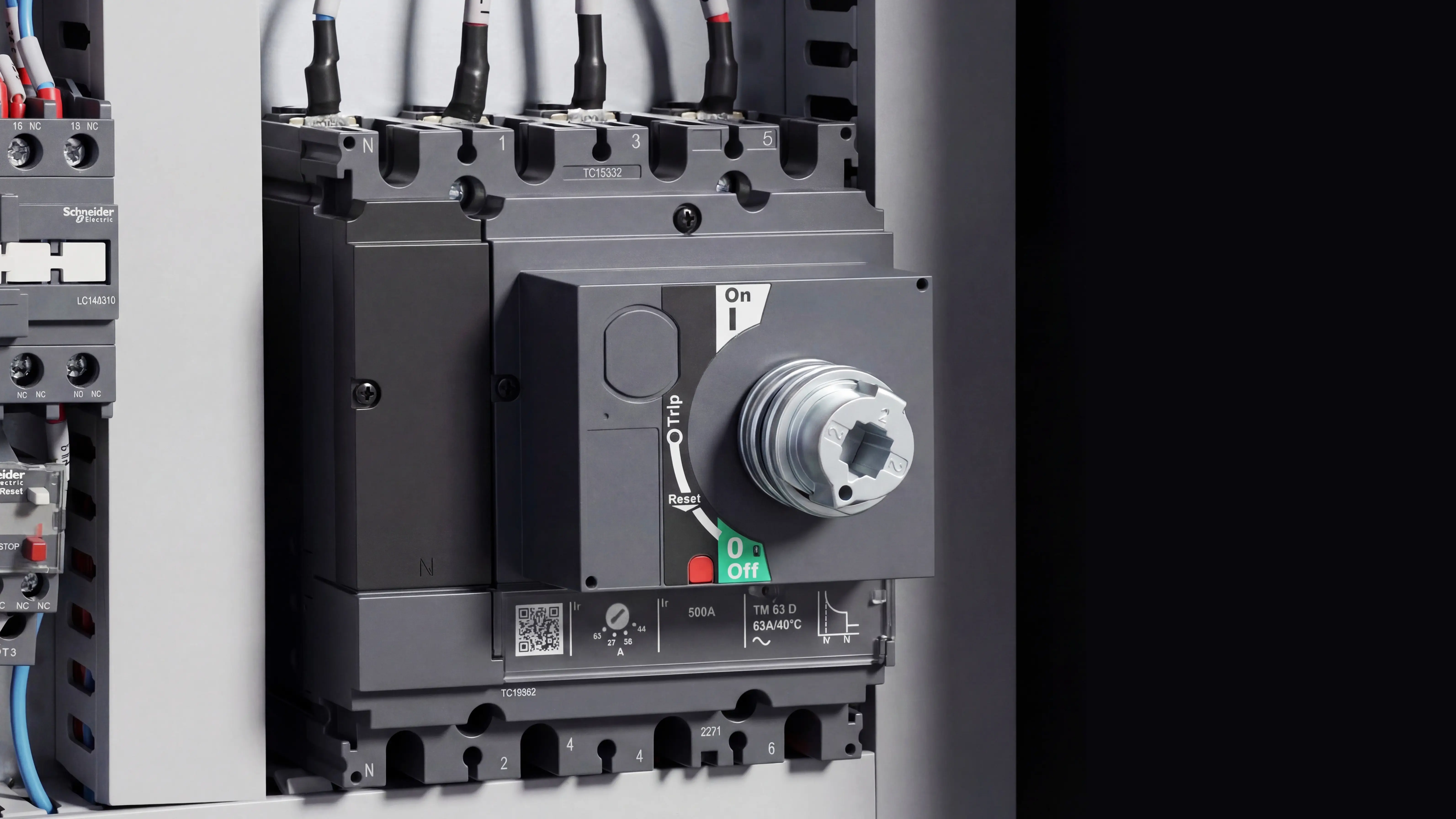

    • Interlock and short-circuit protection switch of Spire 1325 CNC router

      Control Cabinet Interlock and Short-Circuit Protection Switch

      • The control cabinet door is equipped with a Schneider interlocking protection switch, a critical electrical safety device. Its core feature is the linked control between the cabinet door and the machine's power supply. By utilizing a mechanical connection to synchronize the electrical state with the door's state, it eliminates the risk of working on live equipment, establishing a robust first line of defense for electrical safety.
      • The switch operates on a rigorous fail-safe logic: the moment the control cabinet door is opened, the machine automatically cuts the main power supply, fundamentally preventing hazardous live-circuit maintenance. Power can only be restored and the machine started once the cabinet door is completely closed and securely locked.
      • This mechanical interlock design effectively prevents accidents such as electric shocks or short circuits during inspection, wiring, or routine maintenance. By enforcing standardized operating procedures, it protects both the operator and the internal electronic components from damage caused by accidental contact, significantly raising the safety factor for both operation and maintenance.

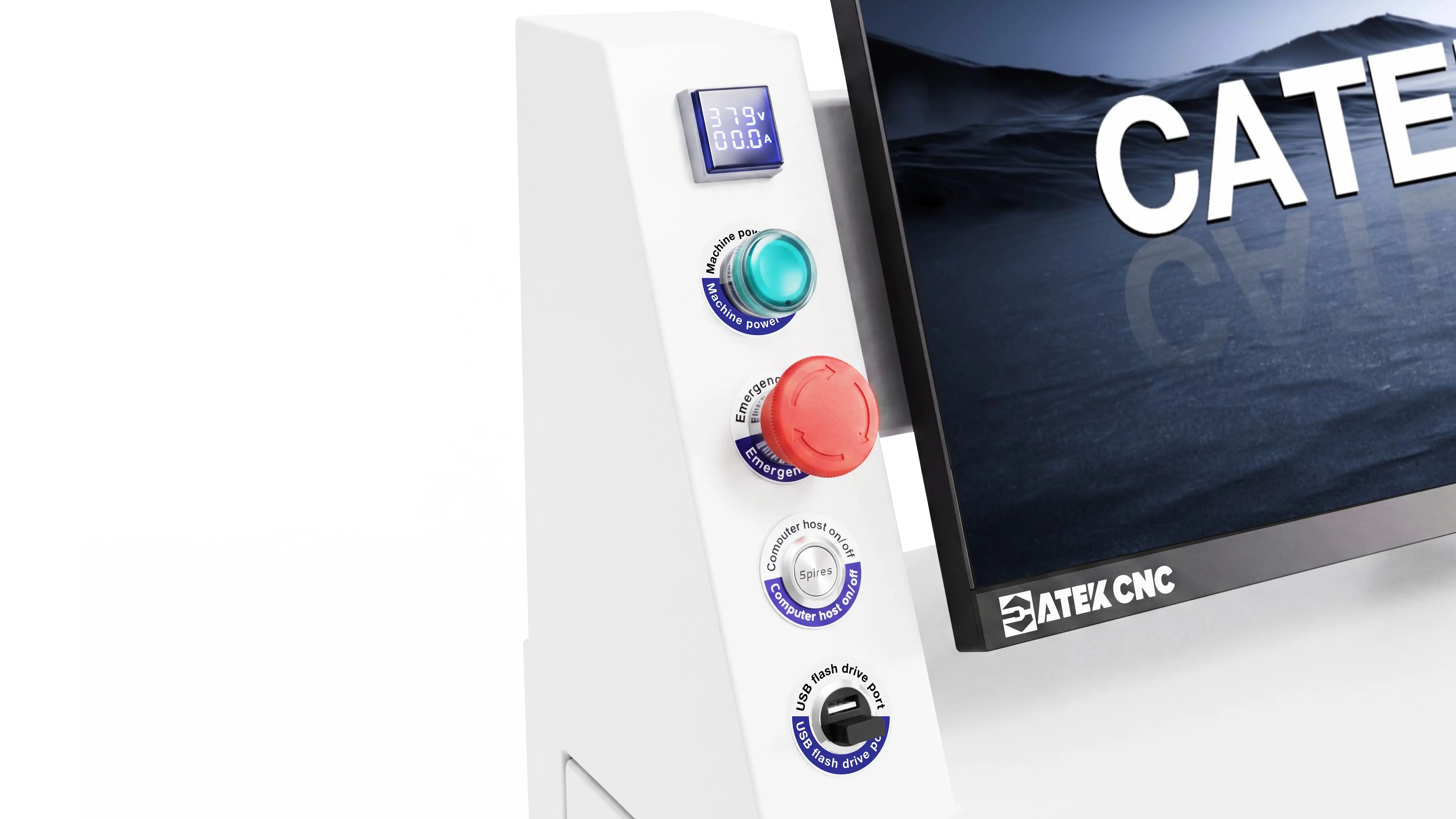

    • High-quality power switches of Spire 1325 CNC router

      High-Quality Power Switches

      • The Spire 1325 CNC Router is equipped with Schneider industrial switches and emergency stop buttons, featuring a full IP65 protection rating. This ensures excellent resistance to dust, water, and oil, allowing the controls to withstand harsh workshop environments and moisture. The buttons provide sensitive and durable tactile feedback, and the emergency stop allows for an instantaneous shutdown during critical situations, maximizing operational safety.
      • A high-precision digital meter is integrated to provide real-time monitoring of current and voltage. This allows operators to intuitively track the machine's electrical status, making it easy to spot voltage fluctuations or current anomalies. By identifying potential electrical issues early, it helps avoid circuitry failures and ensures the continuous, stable operation.
      • The control panel features dual USB ports for convenient data transfer via flash drives. Additionally, it includes an external PC control switch, offering a flexible and streamlined operation workflow. These features simplify daily equipment management and significantly enhance the practical convenience.
    • Schneider electrical components of Spire 1325 CNC router

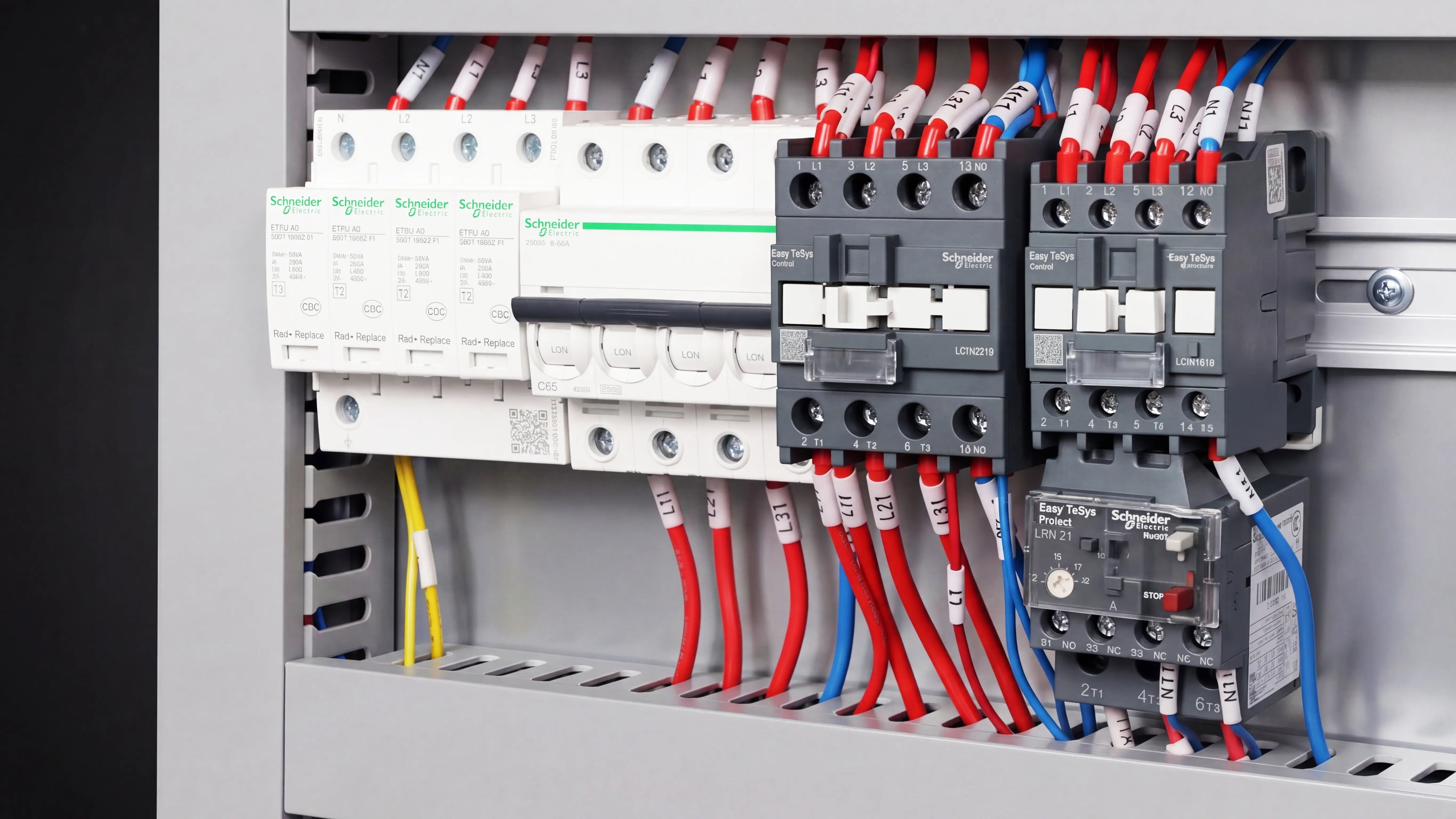

      Schneider Electrical Components

      • The entire electrical system is built exclusively with Schneider Electric components, establishing a stable and reliable control core. By sourcing premium parts, the Spire CNC Router significantly enhances both operational safety and stability from the ground up. This configuration is specifically engineered for the rigorous demands of continuous, long-term CNC operation, effectively minimizing downtime risks associated with electrical failures.
      • Core nodes of the electrical system are equipped with Schneider brand devices, covering air switches, AC contactors, intermediate relays, 24V DC power supplies, surge protectors, phase sequence protectors, and interlock protection switches. Each component performs its specific function while collaborating seamlessly to achieve comprehensive control over critical links such as circuit switching, overload and short-circuit protection, and signal conversion.
      • The Schneider Electric solution not only enhances system stability and durability but also constructs a multi-layered, closed-loop defense: surge protectors resist voltage spikes, phase sequence protectors ensure power supply compliance, interlock switches guarantee operational safety, and the 24V power supply provides clean low-voltage DC power. These protective elements work in close coordination to ensure the electrical system operates safely, stably, and efficiently over the long term.

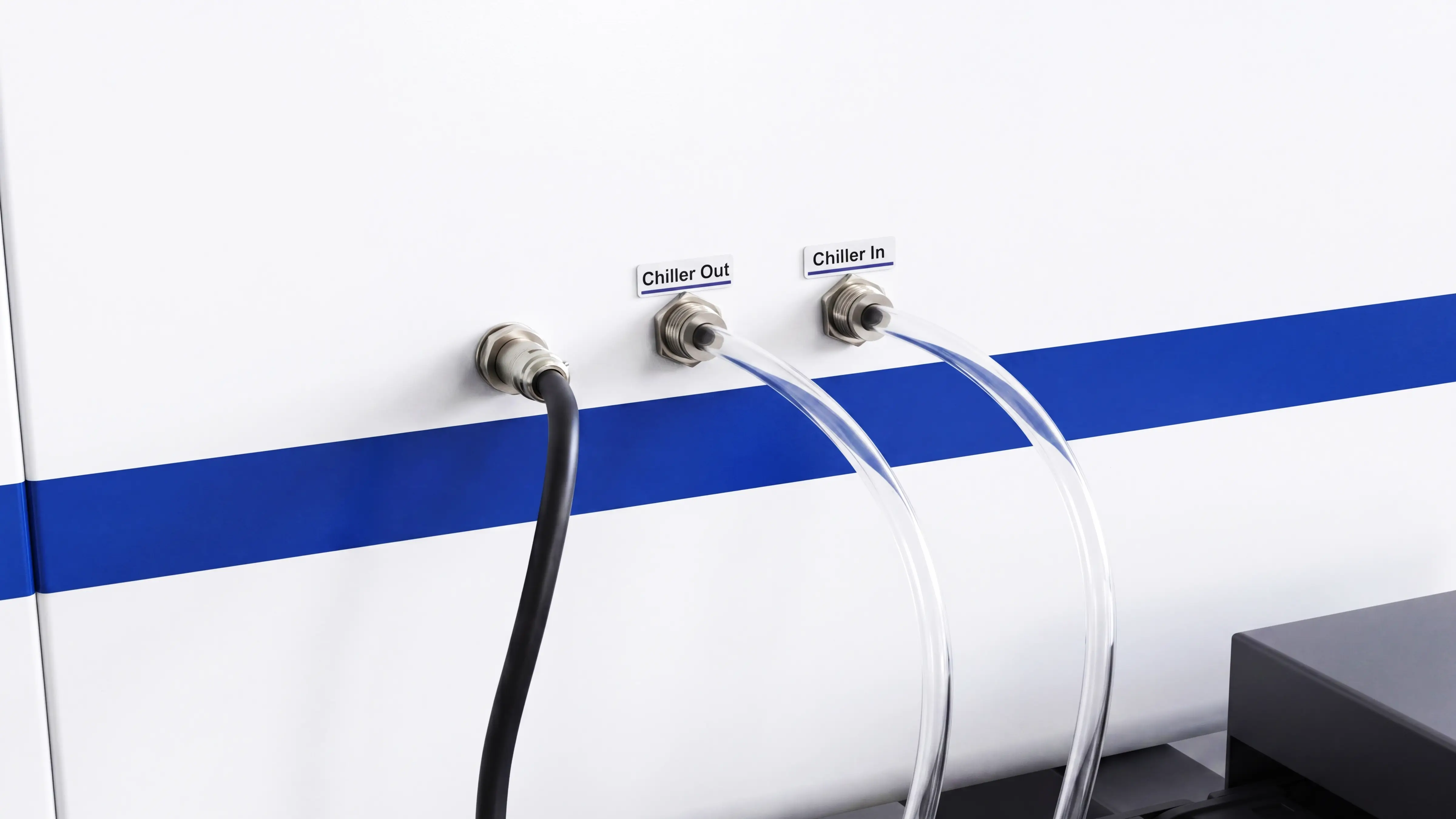

    • High-reliability aviation plugs of Spire 1325 CNC router

      High-Reliability Aviation Plugs

      • The Spire CNC Routers utilize industrial-grade aviation connectors to centralize the connection of electrical circuits, oil lines, and water cooling paths. This high-reliability connection structure effectively prevents poor contact or signal loss caused by pulling or repeated bending, ensuring the continuous and stable operation of the system.
      • These connectors feature an IP65 protection rating, providing a robust barrier against moisture and dust entering the control cabinet or connection points. This significantly enhances the machine's adaptability and operational reliability when working in complex or harsh processing environments.
      • By consolidating the electrical, oil, and water interfaces, the assembly and disassembly process between the control cabinet and the machine body is made much simpler and more efficient. This design drastically reduces the time required for routine inspections and maintenance, improving overall user convenience and uptime.
    • Fully enclosed high-strength cable carrier of Spire 1325 CNC router

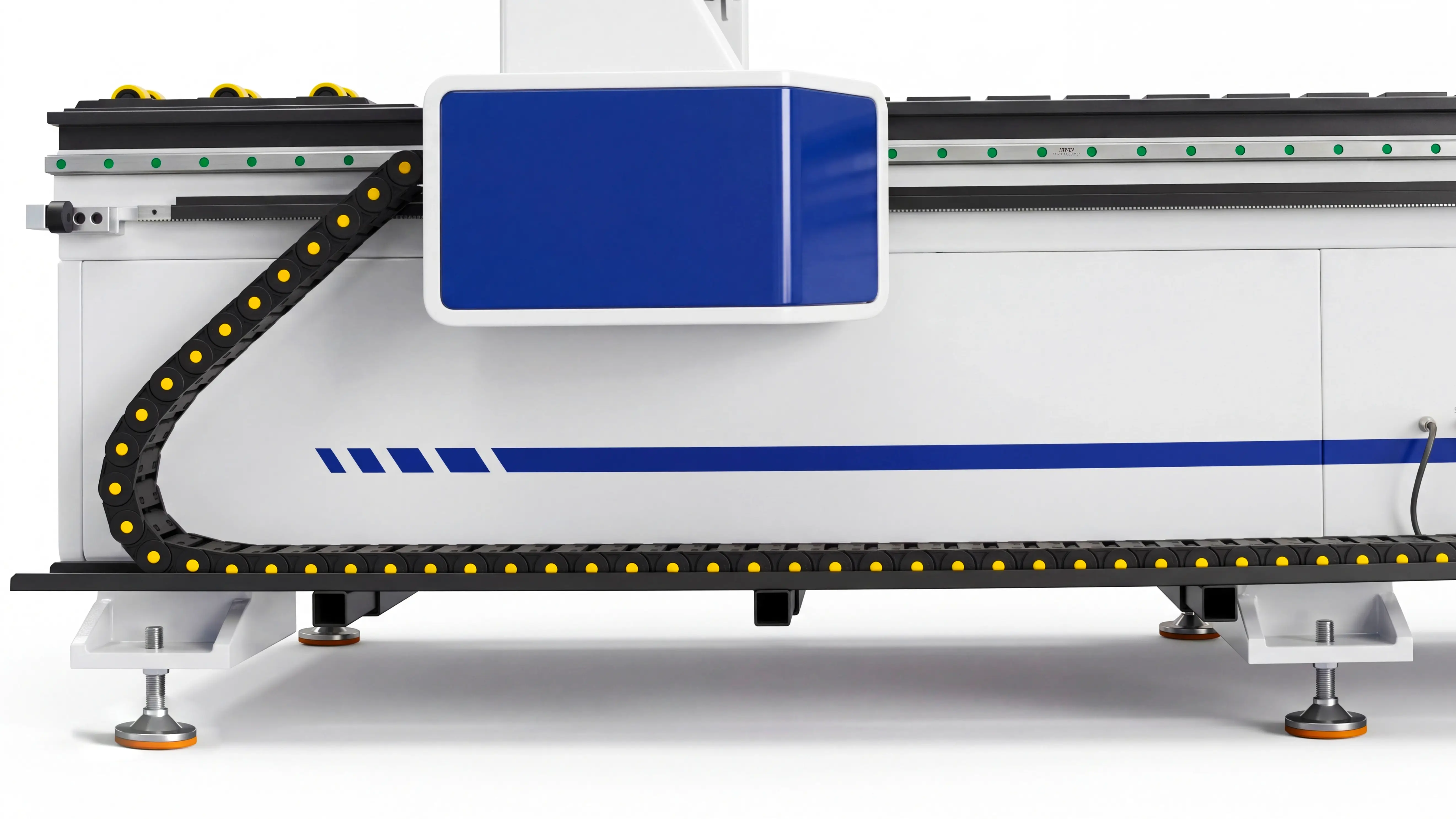

      Fully Enclosed High-Strength Cable Carrier

      • All linear axes of the machine are equipped with enclosed cable cable carriers. This design provides a centralized and organized housing for all electrical wires, air hoses, oil lines, and signal cables. By providing full-length protection and preventing exposed or disorganized wiring, the system ensures a clean and professional layout for the entire machine.
      • These cable carriers are engineered for extreme toughness, featuring high resistance to bending and tension. During high-speed reciprocating motion, the cable carriers effectively isolate internal lines from dust, debris, and mechanical friction. This prevents common issues such as cable aging, wear, or breakage, ensuring the long-term integrity of the circuitry and the stable operation.
      • The structured layout not only enhances operational safety and stability but also significantly improves the maintenance experience. The segmented-open design allows for quick inspections and clear identification of different lines. This makes daily troubleshooting and component replacement much simpler and more efficient, substantially reducing long-term maintenance difficulty and costs.

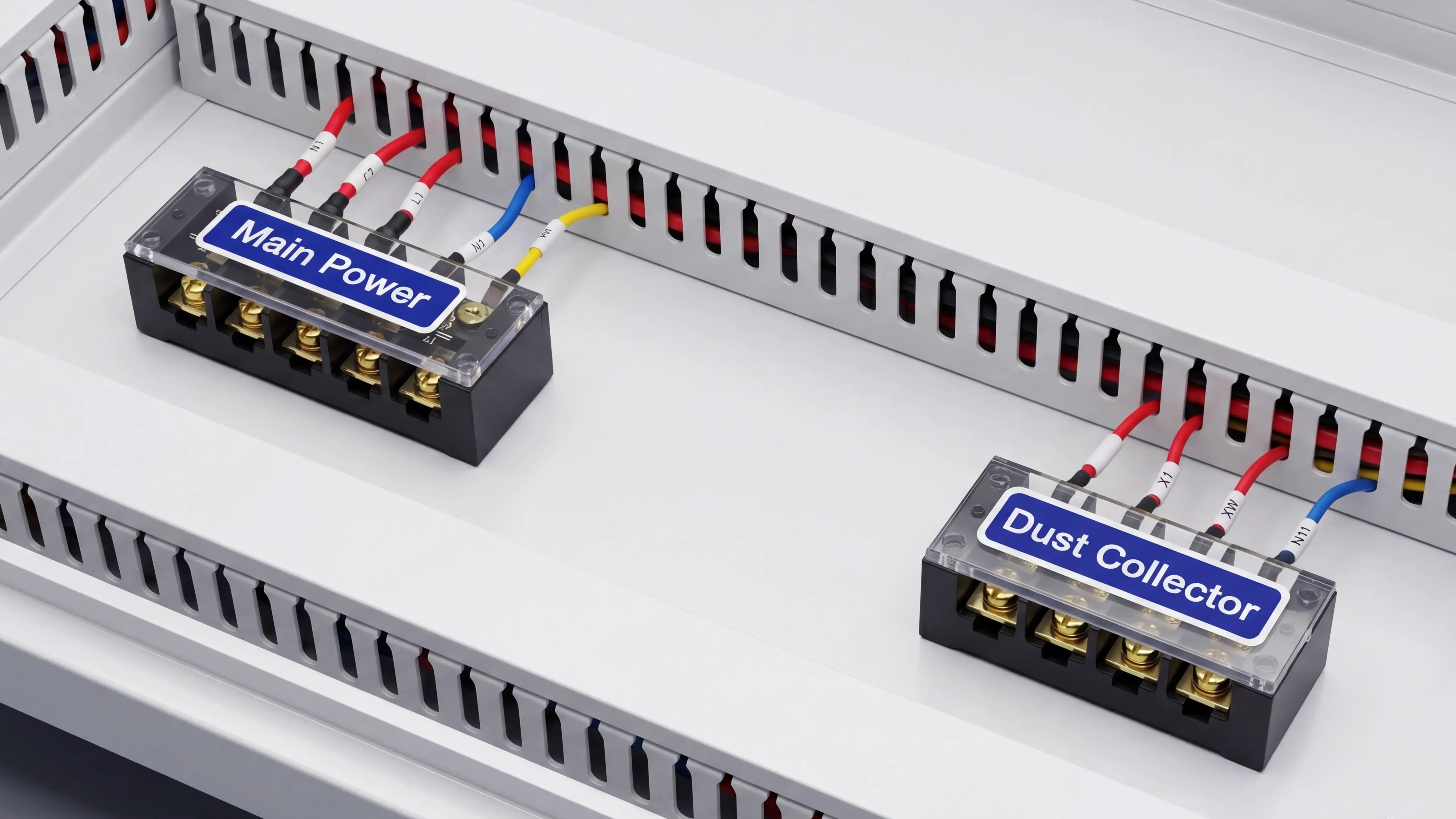

    • High-quality terminal blocks of Spire 1325 CNC router

      High-Quality Terminal Blocks

      • The interior of the control cabinet features independent terminal blocks with a zoned layout. The main power supply and the dust collector circuits are completely separated and wired into their own dedicated terminal strips. This standardized electrical routing ensures a clear and organized layout, eliminating safety hazards caused by cluttered wiring and providing a solid foundation for stable machine operation.
      • These terminal blocks provide stable, high-conductivity connections, effectively preventing power failures or signal anomalies caused by loose contacts. Furthermore, by isolating the main power from the dust collector supply, the system prevents electrical cross-interference, ensuring that each subsystem operates independently and reliably without mutual disruption.
      • The independent wiring design significantly improves the logical organization of the electrical system, making future maintenance and inspections much easier. Operators can quickly identify specific functional circuits without tedious troubleshooting. This not only boosts maintenance efficiency but also reinforces the overall electrical safety framework, perfectly balancing practicality with high safety standards.

    Automatic Tool Setting, Simplifying Your Workflow

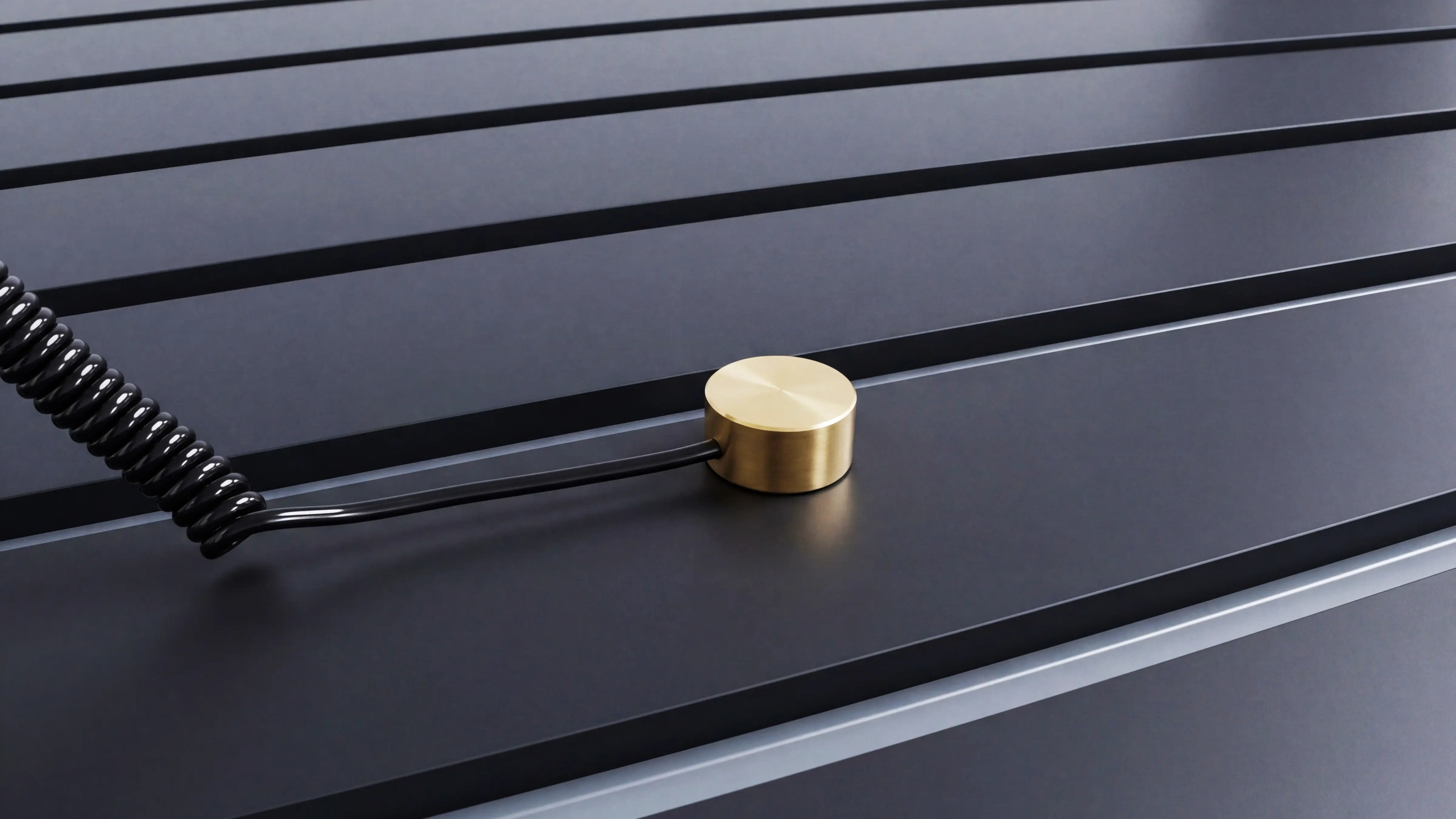

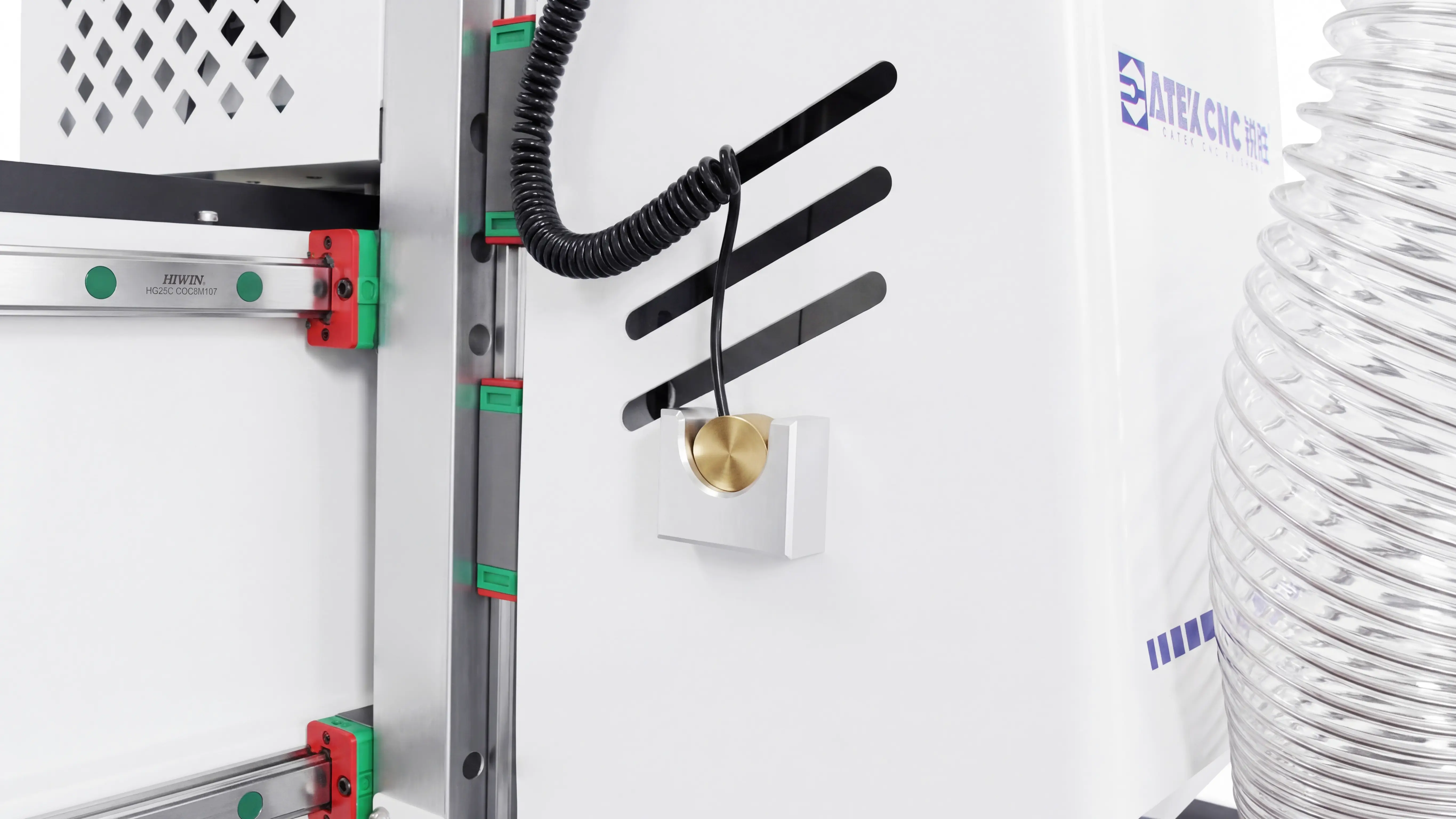

    Automatic Tool Setter

    • The machine is equipped with a high-precision contact-style automatic tool setter, designed for rapid tool length measurement and compensation to ensure consistent machining accuracy. Crafted from solid copper, the sensor offers exceptional wear resistance and a long service life, ensuring reliable performance over years of operation.
    • The tool sensor is conveniently stored on the left side of the spindle’s sheet metal guard. This logical layout keeps the workspace clear and prevents interference with machine movements. To use it, simply place the sensor beneath the tool, no complex configuration is required, making it an efficient solution for various machining tasks.
    • Compared to manual tool setting, the automatic sensor quickly completes Z-axis tool length calibration, significantly shortening setup times and eliminating human error. This not only boosts overall production efficiency but also reduces the operator's workload, ensuring a smooth and stable workflow.
    Automatic tool setter for Spire 1325 CNC router
    Automatic tool setter for Spire 1325 CNC router

    Fast and Flexible Clamping, Assisting Easy Material Loading

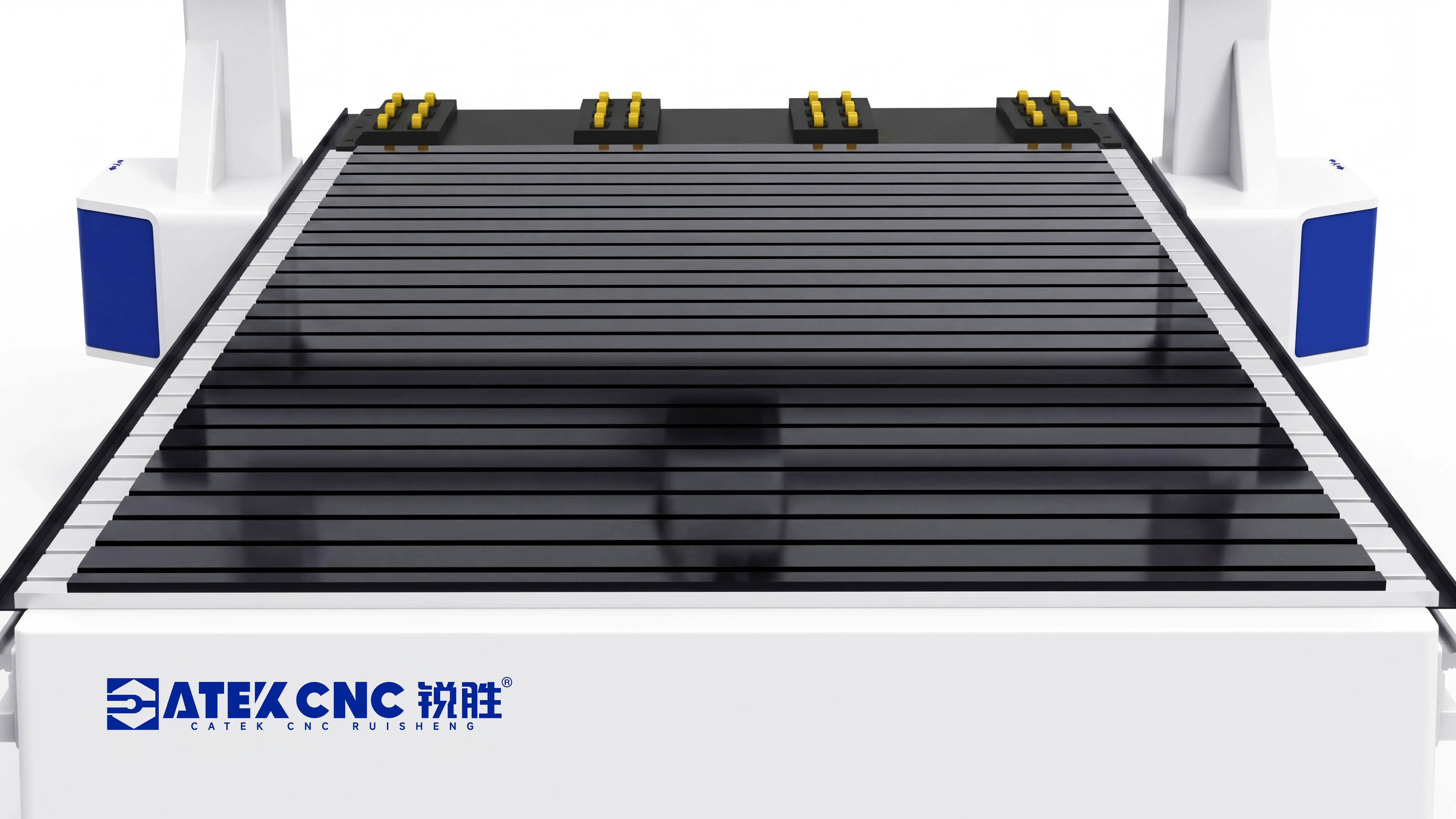

    Aluminum alloy T-slot worktable for Spire 1325 CNC router

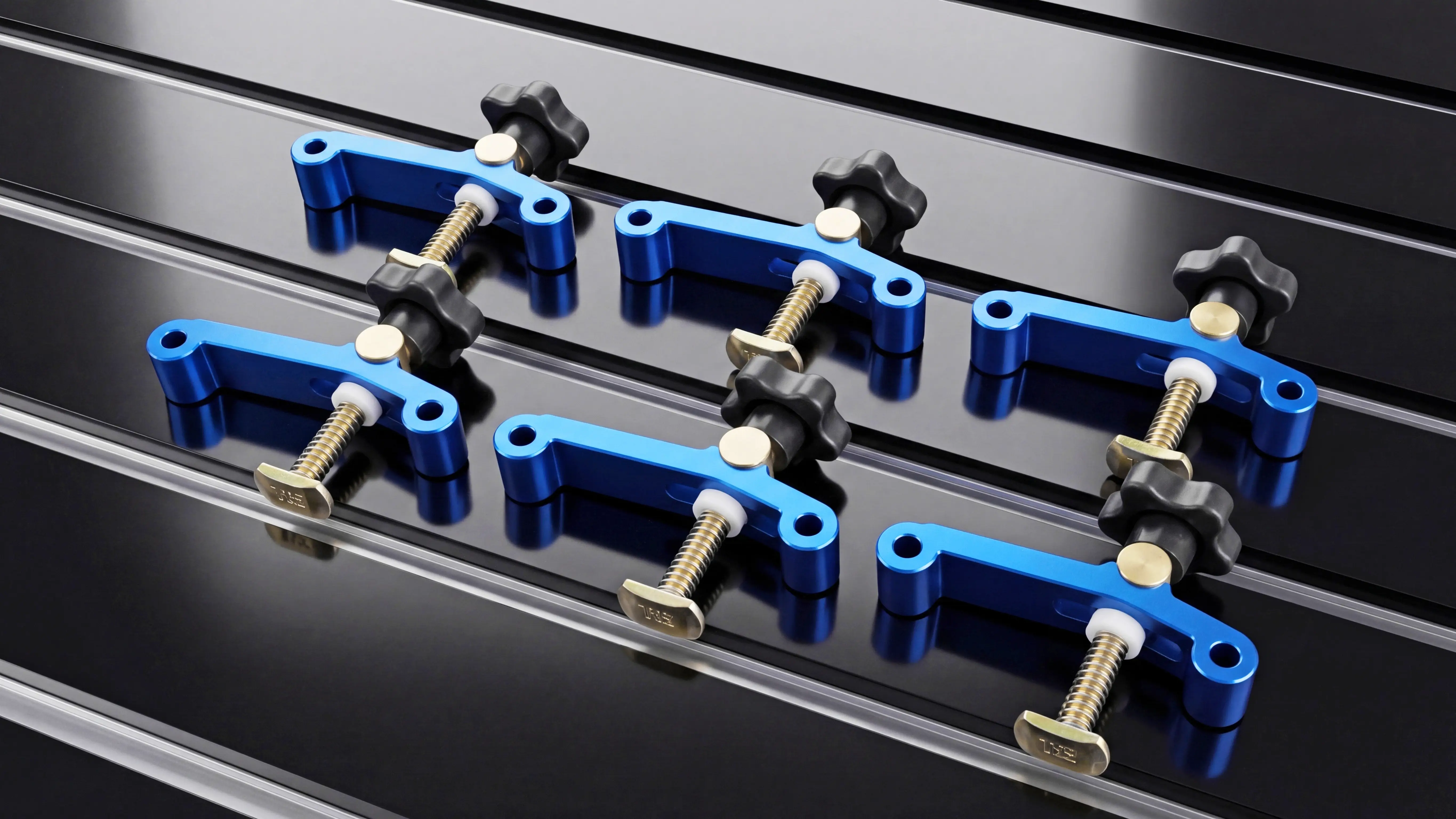

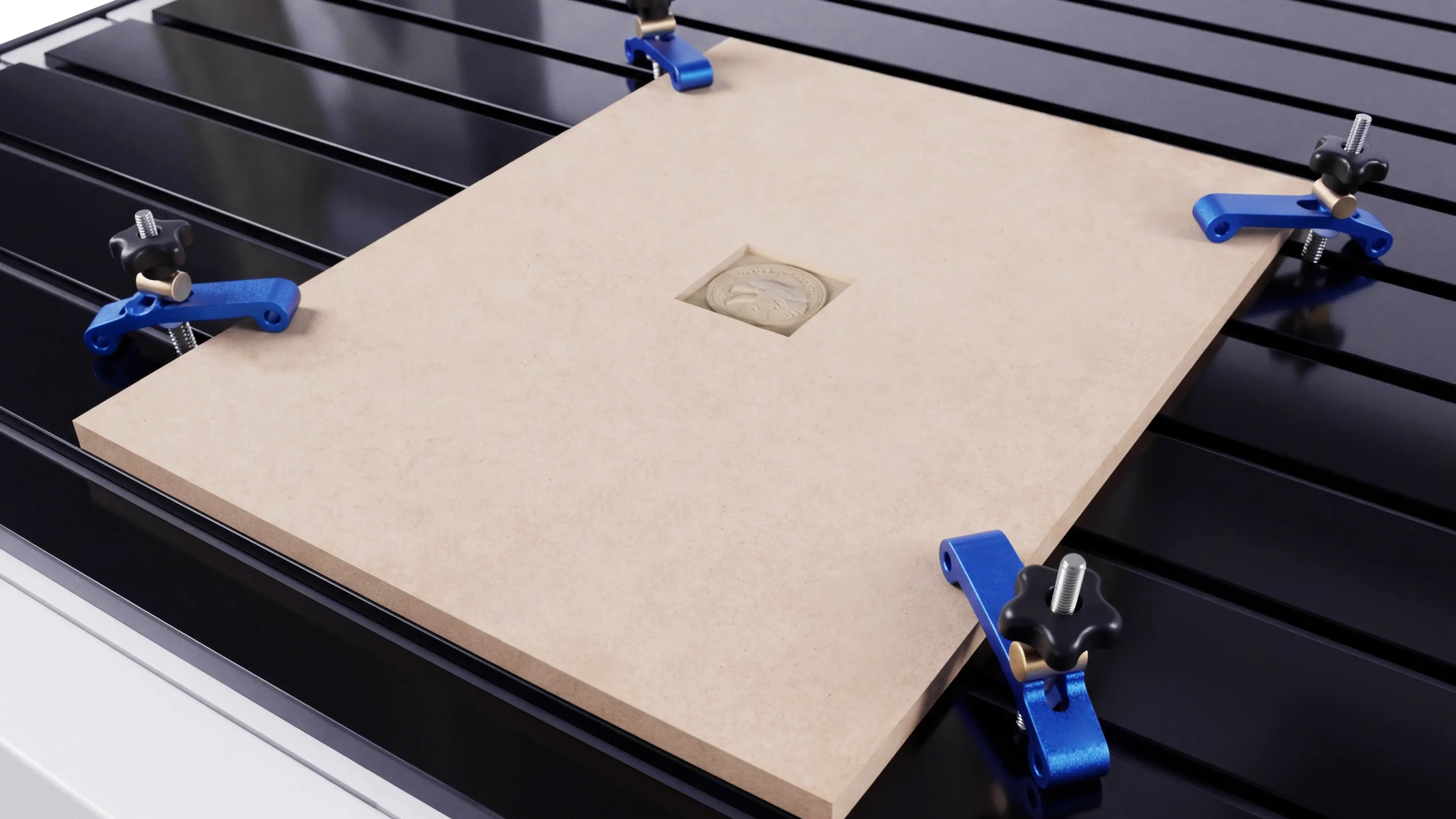

    Hold-down clamps for Spire 1325 CNC router
    Hold-down clamps for Spire 1325 CNC router

    High‑Strength Aluminum Alloy T‑Slot Worktable

    • The CK-1325-ST features a T-slot worktable constructed from high-strength aluminum alloy, providing excellent structural rigidity and load-bearing capacity. This ensures the table remains stable under heavy machining loads without deforming or loosening, creating a solid foundation for high-precision engraving. The surface is covered with a specialized hard PVC protective layer, which shields the alloy from tool strikes and dust corrosion while preventing direct contact damage to the workpieces.
    • The table utilizes a standardized and logically arranged T-slot grid, providing multi-point support for workpieces. This layout evenly distributes cutting forces during processing, reducing the risk of localized stress and protecting the table’s structural integrity. It allows for highly flexible positioning, accommodating various sheet sizes and irregularly shaped workpieces with ease.

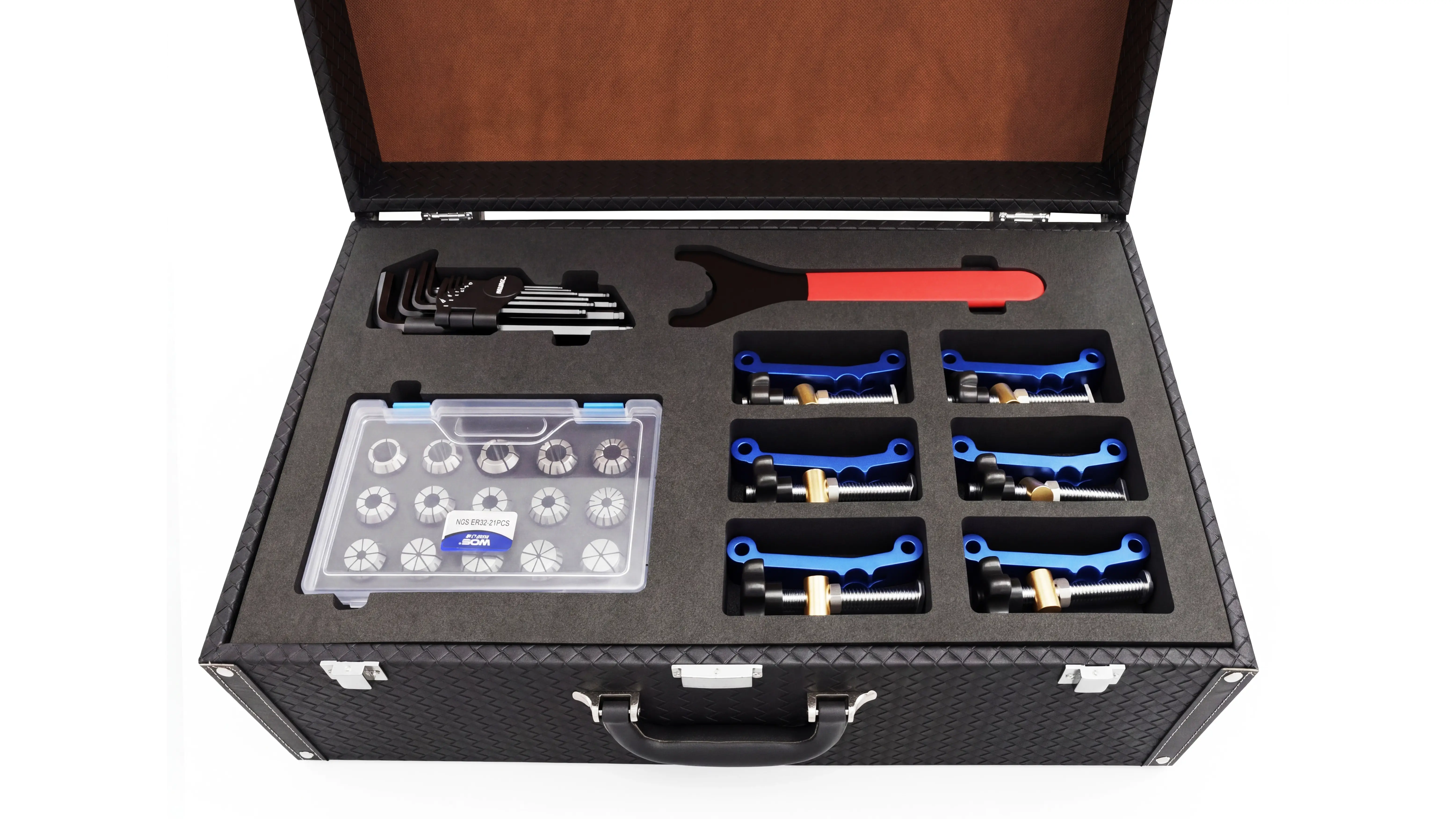

    • The system comes with a set of specialized hold-down clamps, making the securing process simple and efficient without the need for complex tools. Whether handling standard rectangular boards or complex, custom-shaped parts, these clamps provide a secure hold that effectively prevents shifting or vibration during operation. This ensures maximum machining accuracy while maintaining a user-friendly and practical workflow.

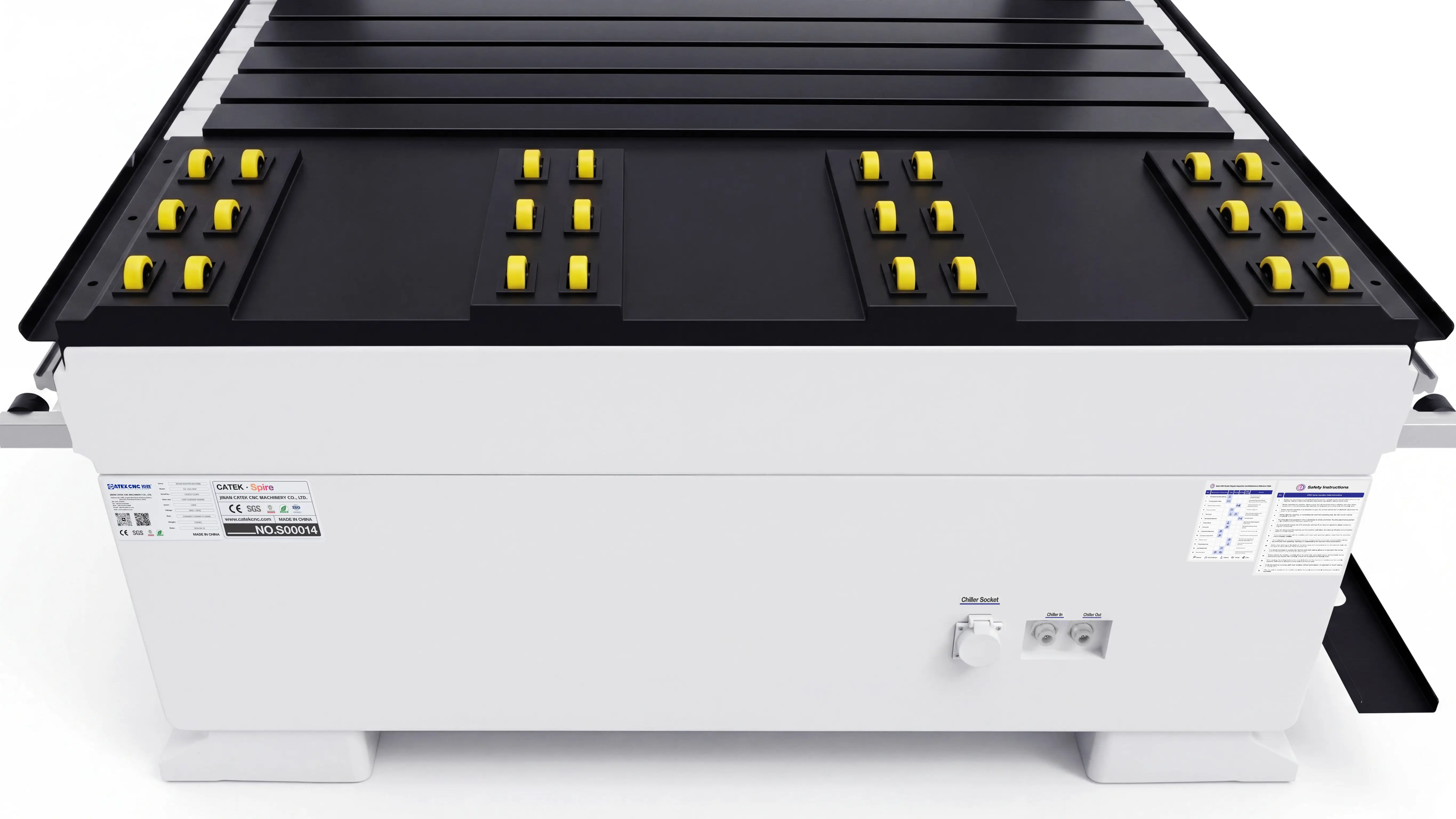

    Auxiliary Loading Rollers

    • The rear of the machine is equipped with 24 auxiliary loading rollers crafted from high-hardness, wear-resistant materials. These rollers are uniformly arranged in a balanced layout to provide stable support and even weight distribution, ensuring that large, heavy sheets are transported smoothly onto the worktable.
    • The rollers feature a smooth, polished finish designed to eliminate friction during the loading process. This prevents scratches, scuffs, or surface damage to the material, preserving the aesthetic integrity of your workpieces and significantly reducing raw material waste caused by handling errors.
    • These auxiliary rollers make handling heavy boards effortless. A single operator can independently complete the loading process for full-sized sheets without the need for additional help. By simplifying the material handling workflow, the system reduces labor intensity, saves on manpower costs, and substantially boosts the overall operational efficiency.
    Auxiliary loading rollers for Spire 1325 CNC router

    High-End Peripherals, Covering Every Detail

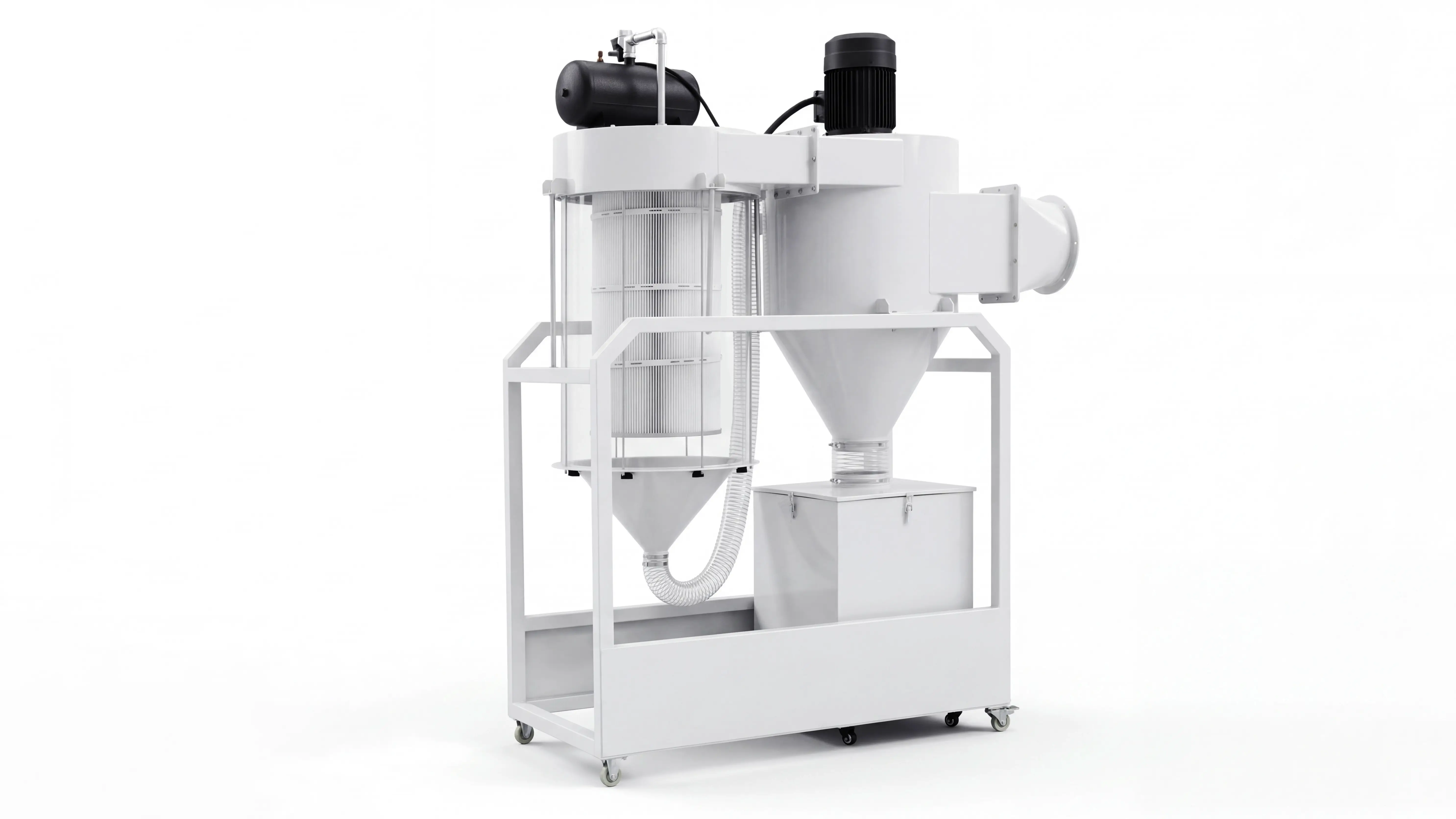

    7.5kW pulse cyclone dust collector dust collector of Spire 1325 CNC router

    7.5kW Pulse Cyclone Dust Collector

    • The Spire 1325 CNC Router is powered by a high-performance 7.5 kW pulse cyclone dust collector, delivering immense suction and robust power. It features a cyclone separation structure combined with dual-vortex discharge technology and a high-speed, high-pressure impeller. Precision-balanced for smooth, low-vibration operation, it efficiently separates wood chips, dust, and debris, ensuring a smooth flow that prevents clogs and optimizes collection efficiency during heavy engraving and cutting tasks.
    • To ensure peak performance, the collector is equipped with an automatic high-pressure pulse cleaning system. This system clears fine dust from the filter surface, preventing blockages and maintaining consistent suction power. This feature significantly extends the lifespan of the filter elements and guarantees long-term operational efficiency.
    • The system delivers exceptional specs, including a filtration precision of 3 μm to capture fine suspended particles and a maximum wind speed of 60 m/s. With an air volume exceeding 7,000 m³/h, it provides wide-area coverage and powerful debris removal. Despite its power, the operating noise is kept below 75 dB, striking a perfect balance between high-efficiency dust extraction and a quiet, environmentally friendly workshop environment.
    Pulse cleaning
    Cyclone dust collection

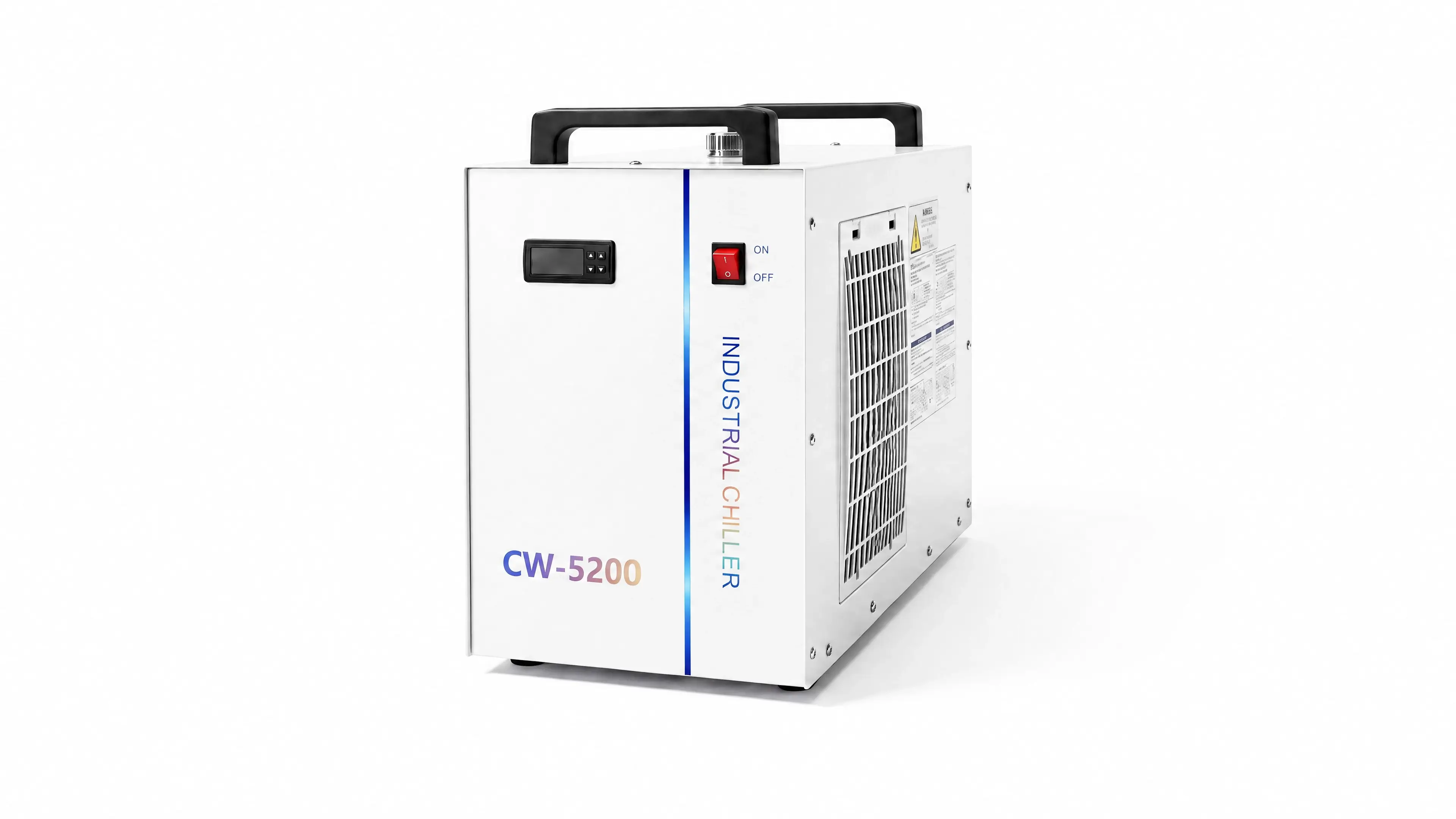

    S&A CW-5200 constant-temperature chiller of Spire 1325 CNC router

    S&A CW-5200 Constant-Temperature Chiller

    • The Spire 1325 CNC Router utilizes a S&A CW-5200 professional water chiller to provide a dedicated recirculating cooling system for the spindle. It features two operating modes: Constant Temperature and Intelligent Temperature Control, allowing for flexible switching based on real-world conditions. This ensures a precise thermal match for the CATEKCNC spindle, maintaining stable operating temperatures and enhancing overall system reliability.
    • The chiller is engineered with multiple protection mechanisms, including compressor delay protection, overcurrent protection, water flow alarms, and high/low-temperature alerts. These features provide real-time status monitoring to preemptively avoid potential failures. The interface is highly intuitive, supporting custom parameter settings and visual fault displays for rapid troubleshooting and effortless management.
    • Delivering a rated cooling capacity of 1.43 kW and a temperature stability of ±0.3°C, the chiller provides exceptionally precise thermal regulation with minimal fluctuation. It rapidly dissipates heat to prevent thermal deformation that could compromise machining accuracy of the spindle, while significantly extending its lifespan during long-term, continuous production cycles.
    1430W
    5°C to 35°C
    ±0.3°C

    Automatic Lubrication, Set It, and Forget It

    Large-Capacity Automatic Lubrication System

    • The Spire Series comes standard with an integrated automatic lubrication system featuring a 1.5L large-capacity pot. This generous oil storage reduces the need for frequent refills and supports the demands of long-term, continuous operation. An integrated oil pressure gauge provides real-time, visual feedback on the system's pressure, allowing operators to monitor lubrication status at a glance.
    • Utilizing an automatic quantitative supply method, the system allows users to flexibly set specific lubrication durations and interval cycles based on actual workload. This ensures precise, timely, and uniform oil distribution, eliminating the inconsistencies and human error common with traditional manual lubrication.
    • The system provides consistent lubrication to critical transmission components, including linear guideways and lead screws. By effectively minimizing friction and slowing down wear and tear, it prevents operational anomalies and aging. This comprehensive maintenance approach not only guarantees smooth movement and high precision but also significantly extends the service life of the transmission system while lowering long-term maintenance costs for the CNC router machine.

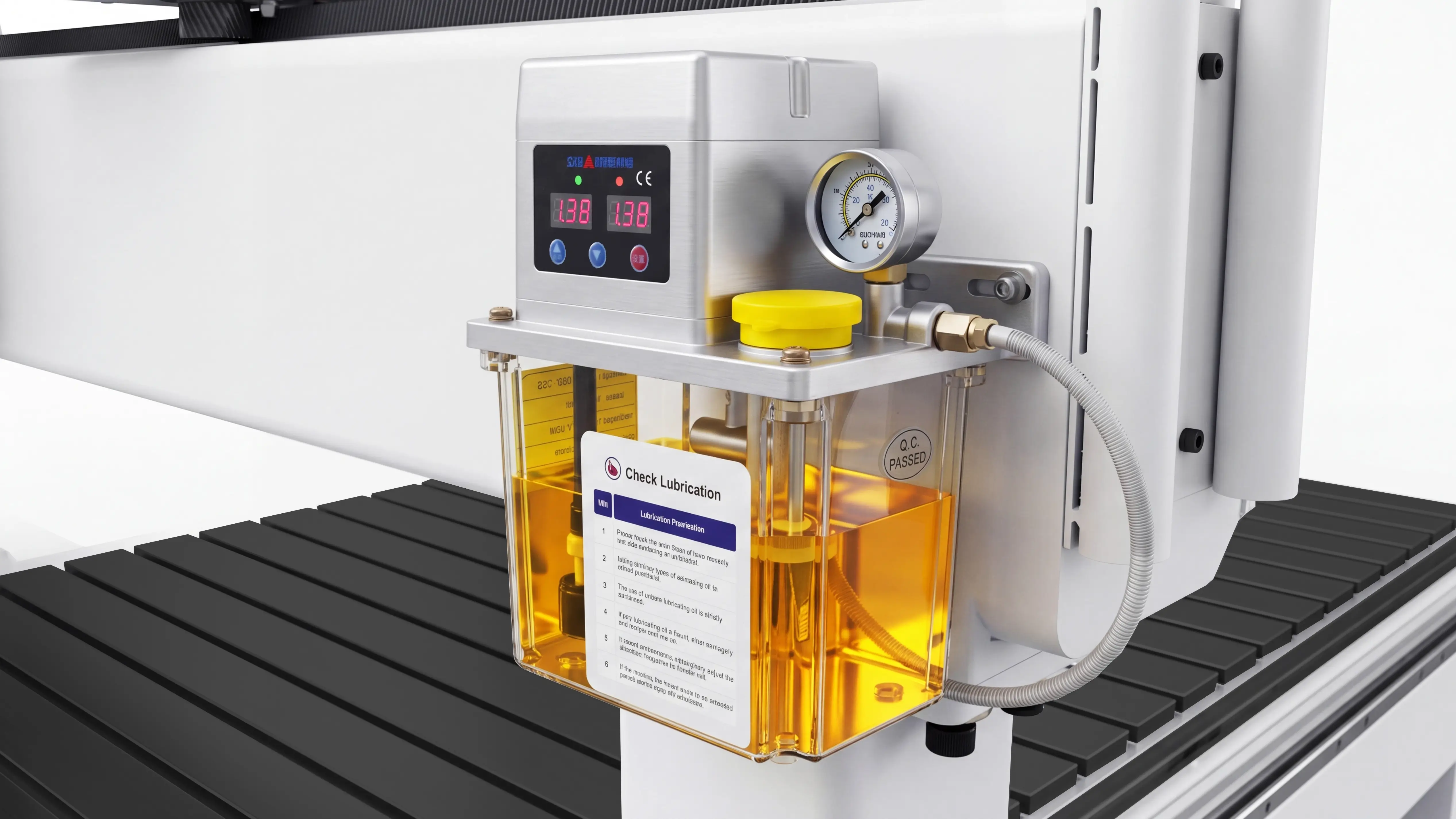

    Automatic lubrication system for Spire 1325 CNC router

    Your Spire, Backed by Our Full Support

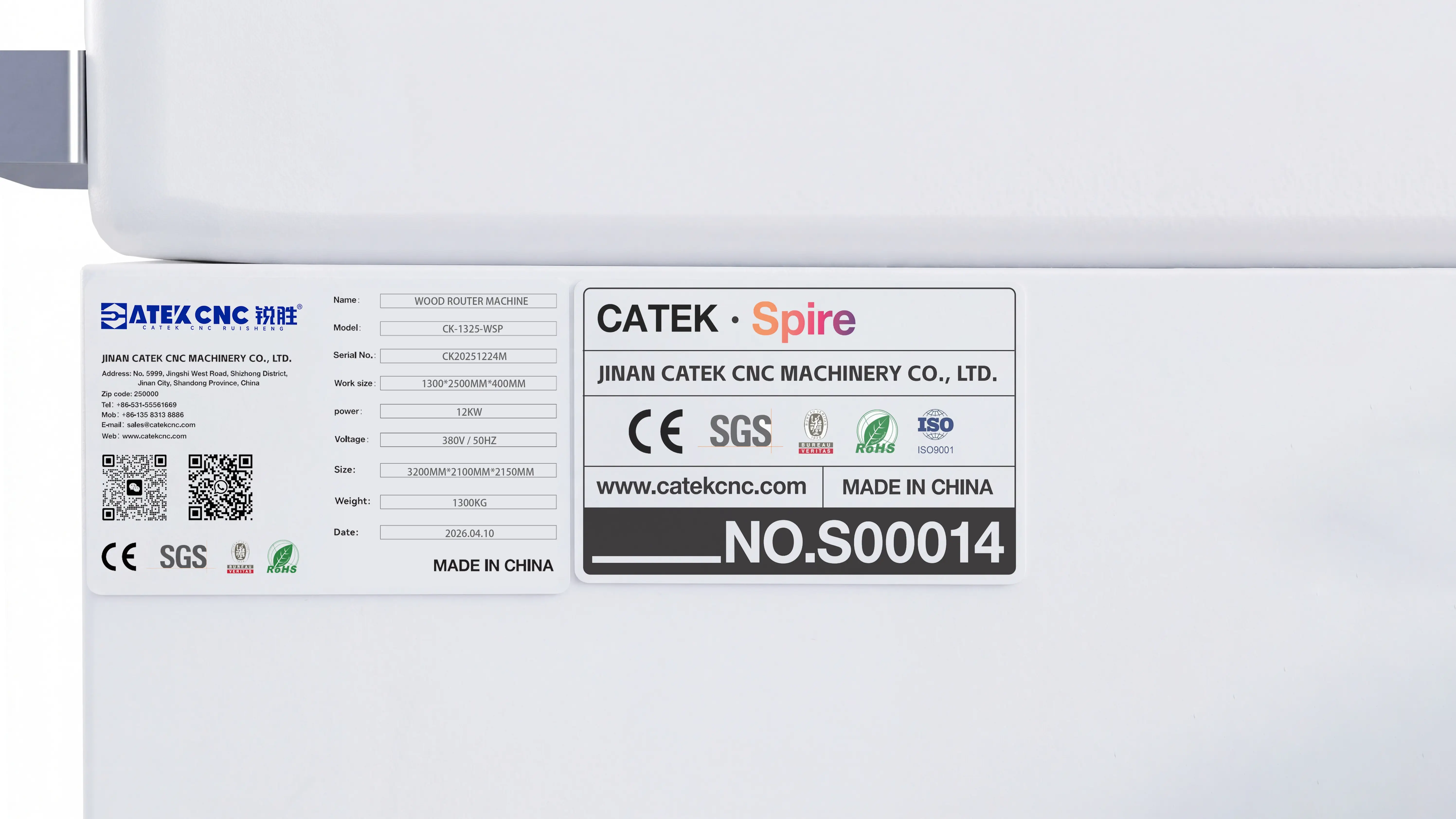

    Spire series exclusive serial number of Spire 1325 CNC router

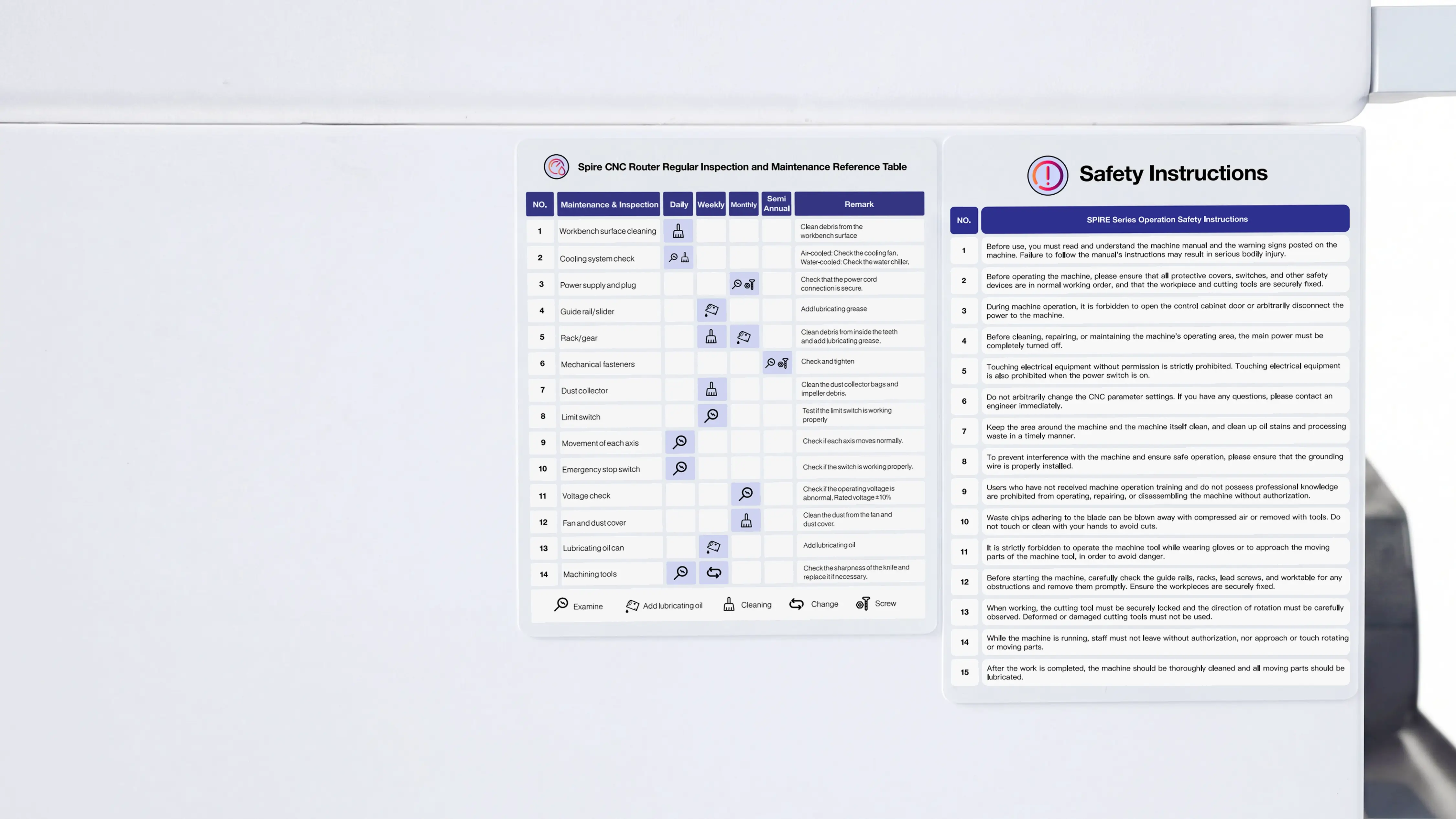

    Maintenance instructions of Spire 1325 CNC router

    Spire Series Exclusive Machine ID & Service

    • Every Spire Series machine is assigned a unique identity, featuring a dedicated nameplate and a unique serial number located at the rear of the chassis. In addition to basic equipment specifications, the nameplate confirms that the machine has successfully passed multiple international certifications, including ISO9001, CE, BV, SGS, FDA, and RoHS. This compliance with global production and testing standards ensures reliable quality and full traceability.
    • The serial number unlocks a comprehensive after-sales ecosystem. We provide an industry-leading five-year warranty backed by one-on-one dedicated service support. Our professional engineering team is available 24/7 to handle technical inquiries and troubleshooting. Furthermore, we offer lifetime maintenance services and continuous software updates, ensuring your equipment stays current and minimizing long-term operational costs.
    • For added convenience, the rear of the machine includes a standardized Maintenance Guide and Safety Operating Instructions. These clear, easy-to-follow manuals guide operators through standardized usage and routine upkeep. By reducing human error and ensuring proper component care, these resources help extend the service life of core parts and keep this CNC router running at peak efficiency for years to come.
    Complete documentation kit for Spire 1325 CNC router

    Spire Series Complete Documentation Kit

    • Every Spire Series machine is delivered with a complete set of official documentation, including a Certificate of Conformity, Warranty Card, Warranty Terms, Quick Start Guide, and User Manual. This standardized package provides systematic written support covering the entire lifecycle of the machine—from acceptance and installation to daily operation, ensuring a professional and seamless delivery process.
    • The Warranty Card and documentation clearly outline the coverage periods, service procedures, and contact methods for easy reference. For faster implementation, the Quick Start Guide features a full components checklist and intuitive diagrams for electrical connections (including the dust collector, water chiller, and main unit). It also consolidates basic operational steps and troubleshooting tips, allowing operators to get up and running while quickly resolving common issues.
    • The comprehensive User Manual provides an in-depth look at the machine’s structural composition, accessory installation workflows, and safety protocols. To support advanced maintenance and setup, it includes professional electrical schematics and detailed technical illustrations. This rich, visual-heavy resource is designed to help personnel master equipment operation, perform precise debugging, and handle routine maintenance with professional confidence.

    Everything You Need, Ready from the Factory

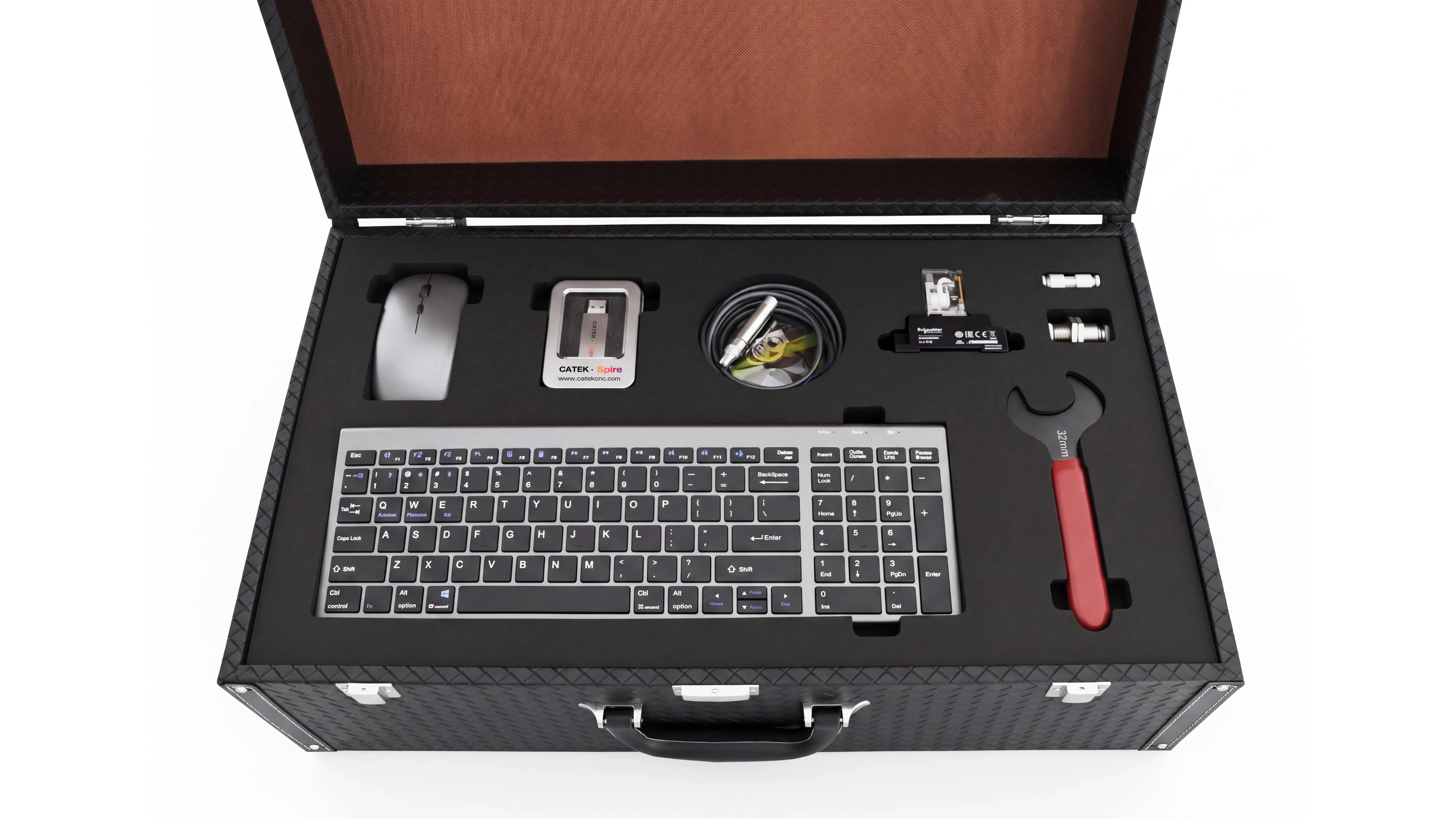

    Toolbox first layer of Spire 1325 CNC router
    Toolbox second layer of Spire 1325 CNC router

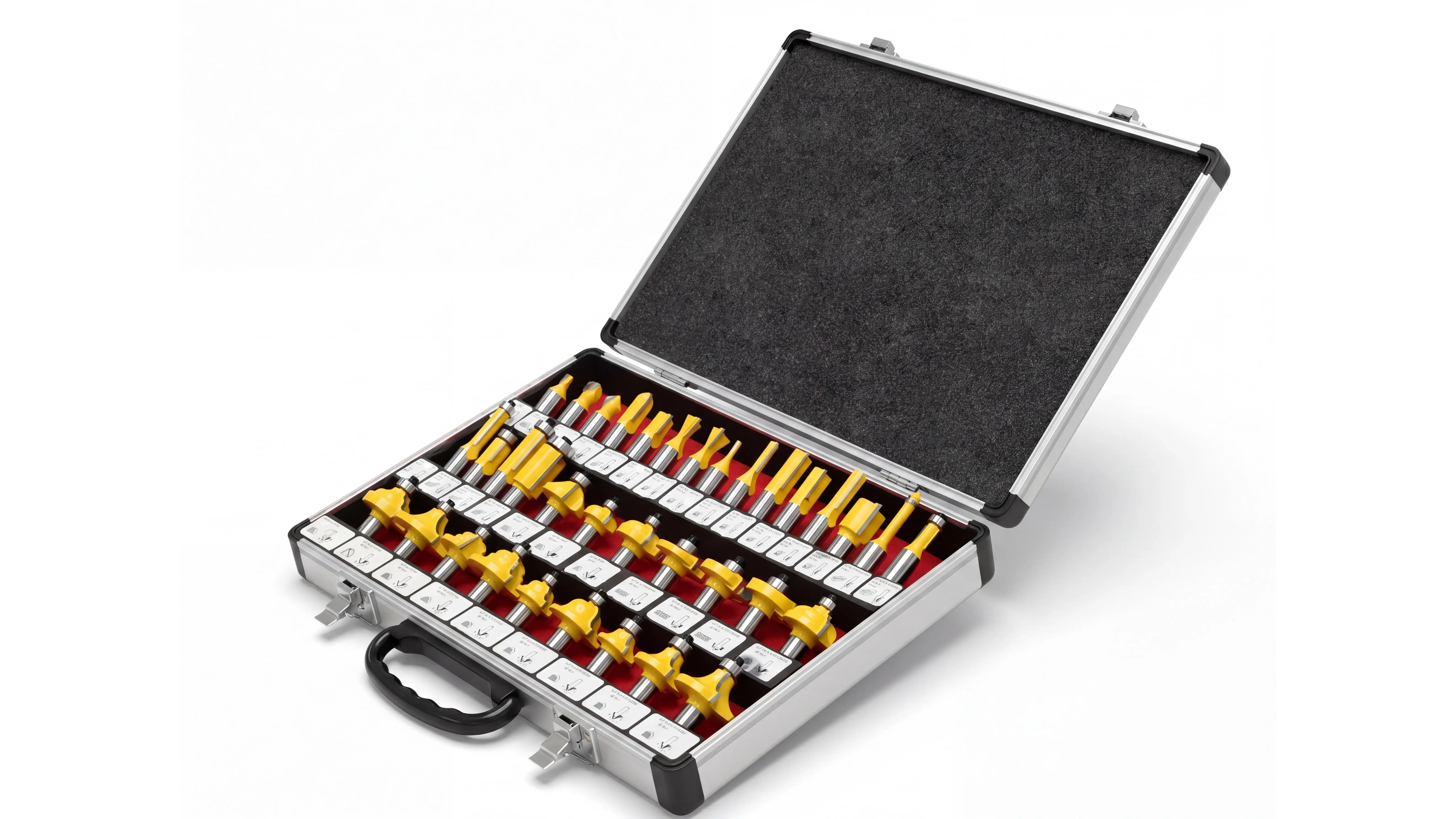

    Tool set of Spire 1325 CNC router

    Free Accessory Kit for Diverse Machining Needs

    • Every machine comes standard with a comprehensive set of practical tools and spare parts, ensuring you have everything needed for commissioning, clamping, and daily maintenance without additional purchases. The kit includes 6 sets of hold-down clamps, dedicated ER25 spindle wrenches, a full set of hex keys, and a 15-piece high-precision ER25 collet set. Additionally, we provide essential backups such as a wireless keyboard and mouse, spare limit switches, relays, and air nozzles to cover all installation and repair contingencies.
    • To get you started immediately, we include a free 35-piece professional tool set. This collection features a wide variety of bits—including engraving bits, end mills, cutting bits, and round-bottom bits—designed to handle diverse materials and processing techniques. This ensures the machine is production-ready the moment it arrives at your facility, eliminating the need for immediate external tool sourcing.
    • Each unit includes a dedicated flash drive containing a complete digital library for your machine. This includes system backup files, control and programming software, high-definition electronic manuals, and comprehensive video tutorials. We also provide universal test files to assist beginners with rapid setup and debugging. This drive serves as a vital long-term resource for parameter recovery and troubleshooting, ensuring your Spire CNC Router remains operational and efficient.
    Toolbox First Layer Toolbox Second LayerMachining Tool Collet SetMachining Tool Set

    Applicable Industries

    Whether it's furniture making, wooden doors, wardrobes, cabinets, or wood carving, billboards, musical instruments, etc., The Spire can handle it all with ease.

    Technical Parameters

    Series
    CATEK · Spire
    Model
    CK-1325-WSP-ST
    XYZ Working Travel
    1300*2500*400mm
    Bed
    Spire-specific machining center processed reinforced bed base, independent anti-interference control cabinet
    Gantry
    Reinforced aged steel gantry, heavy-duty stress-relieved steel beam
    Spindle Mounting Plate
    46mm thick hard-anodized aluminum mounting plate
    Spindle
    CATEKCNC self-developed 5.5KW high-speed variable frequency water-cooled spindle
    Spindle Speed
    Max speed 24000RPM
    Variable Frequency Drive
    Hpmont 7.5KW VFD
    Tool Holder Type
    ER25 φ16mm
    Tool Setting Method
    Automatic tool setter
    Drive Method
    CATEKCNC self-developed 750W bus-type absolute servo motor * 4 (Z-axis brake motor)
    Reducer
    Japan Shimpo planetary gear reducer
    Table
    Aluminum alloy T-slot table
    Transmission Method
    XY-axis high-precision ground helical rack and pinion + Z-axis high-precision ground TBI ball screw
    Guideways
    Taiwan HIWIN high-precision 25 linear guide rails / linear bearings
    Loading
    Rear auxiliary loading rollers
    Dust Collection Method
    7.5KW pulse cyclone dust collector
    Spindle Cooling Method
    S&A CW-5200 constant-temperature water chiller
    Cables
    Pure copper high-flexibility bend-resistant cables
    Cable Carrier
    Fully enclosed reinforced cable carrier
    Electrical Components
    Schneider surge protector / phase sequence protector / AC contactor / 24V power supply / relay
    Control System
    Weihong PM95A CNC control system (NcStudio)
    Monitor
    21.5-inch LCD monitor
    Keyboard and Mouse
    2.4GHz wireless keyboard and mouse
    Lubrication System
    Centralized lubrication oil maintenance system
    Safety System
    Omron limit switch
    Working Voltage
    AC380V/50Hz
    Repeat Positioning Accuracy
    ±0.01mm
    Max. Movement Speed
    80,000mm/min
    Max. Processing Speed
    20,000mm/min
    Dimensions
    3200*2100*2150mm
    Weight
    1300kg

    * These parameters are specific to this CK-1325-WSP-ST unit; configurations can be customized to meet specific requirements.

    Review

    0 Reviews of CK-1325-WSP-ST.

    5.0
    Based on 0 reviews
    5
    0
    4
    0
    3
    0
    2
    0
    1
    0
    • All (0)
    • With Photos/Videos (0)
      No reviews yet
      View more reviews

      Enjoy Spire's exclusive top-level service

      Reliability, confidence, and ease

      • Five-years free warranty
        Five-years free warranty
        Enjoy Spire VIP service, providing free warranty and maintenance for the entire machine, bringing you a worry-free experience.
      • Exclusive private customer service and after-sales team
        Exclusive private customer service and after-sales team
        7*24 hours online service, on duty around the clock, to solve any problems for you as soon as possible.
      • The matching CNC software is given for free
        The matching CNC software is given for free
        Enjoy lifetime free software upgrades, supporting software updates and free programming services.

      Spire Exclusive

      VIP Customer Service

      Customer service
      Let Us Chat
      • Dedicated service butler

        Dedicated Service Butler

      • Professional question answers

        Professional Question Answers

      • 24-hour quick response

        24-Hour Quick Response

      • Dedicated after-sales team

        Dedicated After-Sales Team

      Contact Us

      Learn more about how the CATEK Spire Series can bring you more production efficiency.

      Submit

      Check out other Spire

      We offer a variety of Spire models for you to choose from, and we can also customize them to your needs.

      2130 Linear ATC CNC Router Machine
      Spire 2130 Linear ATC CNC Router Machine
      CK-2130-RSP-T Learn More
      2130 Linear ATC CNC Router with Drilling Bank and 4-Sided Angle Head
      Spire 2130 Linear ATC CNC Router with Drilling Bank and 4-Sided Angle Head
      CK-2130-RSP-TDM Learn More
      1325 Linear ATC CNC Router Machine
      Spire 1325 Linear ATC CNC Router Machine
      CK-1325-RSP-T Learn More
      1530 4-Axis CNC Router with Swing Head
      Spire 1530 4-Axis CNC Router with Swing Head
      CK-1530-WSP-ST-4S Learn More
      1520 CNC Wood Router Machine
      Spire 1520 CNC Wood Router Machine
      CK-1520-WSP Learn More
      1325 CNC Router Machine with Flood Cooling
      Spire 1325 CNC Router Machine with Flood Cooling
      CK-1325-WSP-W Learn More
      Get quote
      CATEKCNC

      This website uses cookies

      We use cookies to personalise content and ads, to provide social media features and to analyse our traffic. We also share information about your use of our site with our social media, advertising and analytics partners who may combine it with other information that you’ve provided to them or that they’ve collected from your use of their services.

      You may modify your privacy preferences at any time by accessing the "Your Privacy Choices" link located at the bottom of the page.

      Show Details

      Select Your Language
