[Function Description]
The laser cutter adopts a fully enclosed protective design, effectively isolating the processing area from the external environment. This structure helps prevent the release of cutting fumes, laser radiation, and operating noise, creating a cleaner and more environmentally friendly working environment. Meanwhile, the enclosed design also helps maintain a more stable internal processing environment, improving overall cutting consistency. A key feature of this machine is its pull-out worktable, which allows operators to pull the worktable out from the cutting area to the outside of the machine, providing a more spacious and convenient space for material loading and unloading. The machine comes standard with an electric lifting door and can be optionally equipped with an electric pull-out worktable to further improve operation convenience and production efficiency. Equipped with a 6000W fiber laser source and a 1530 × 3060 mm working area, the machine is capable of handling the processing requirements of a wide range of metal sheet applications.
With the increasing adoption of fiber laser cutting machines in the metal fabrication industry, more and more manufacturers are paying greater attention to processing safety, environmental protection, and operator experience. During traditional open-type laser cutting operations, sparks, molten slag, fumes, and odors generated during cutting can easily spread throughout the workshop, significantly affecting the working environment and operator comfort.
To meet the growing demand for safer, cleaner, and higher-quality metal processing, CATEKCNC introduces the CK-1530-PS fully enclosed fiber laser sheet cutting machine. Designed specifically for sheet metal manufacturers seeking a clean, safe, and efficient production environment, this machine features a maximum sheet processing size of 1530 × 3060 mm, making it suitable for cutting most commonly used metal sheets.

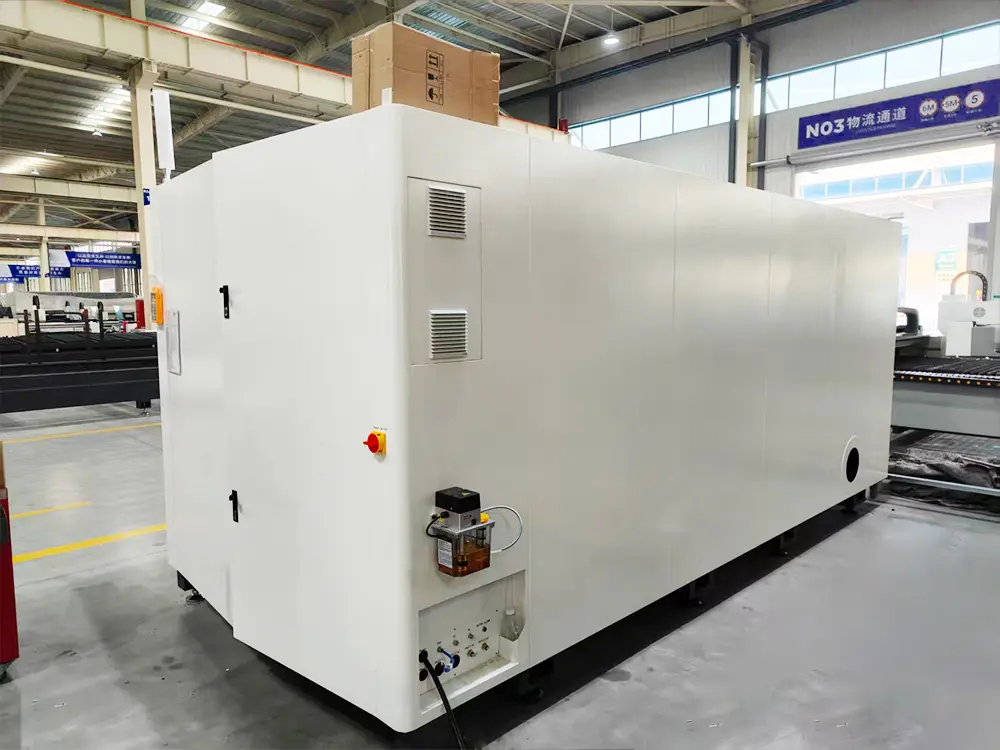

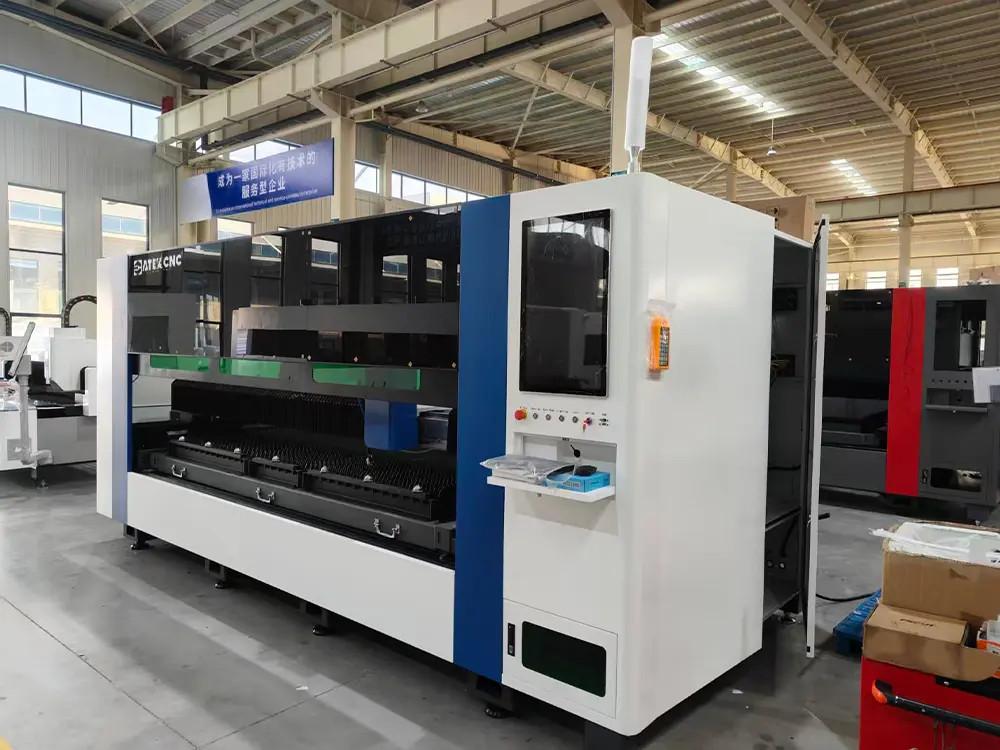

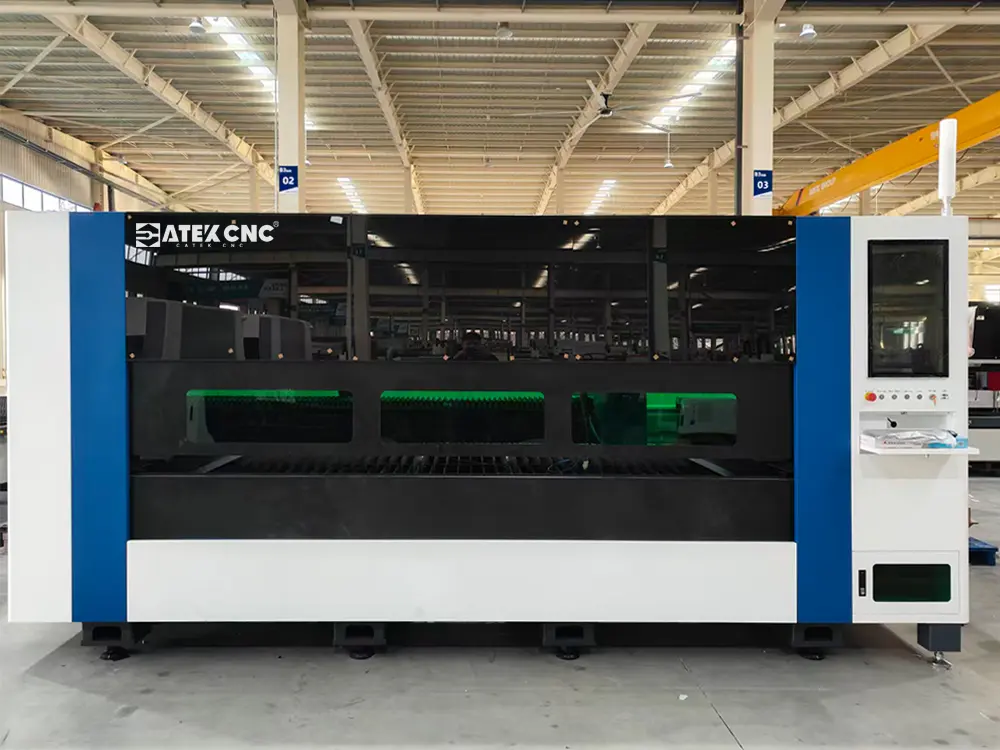

The CK-1530-PS adopts a fully enclosed protective structure, effectively separating the laser processing area from the external environment. It helps contain fumes, sparks, molten slag, laser radiation, and certain levels of cutting noise generated during operation, providing operators with a safer and more environmentally friendly working environment. Meanwhile, the enclosed design reduces the influence of external factors on the cutting process, improving machine stability and cutting consistency.
The machine is equipped with a large-format sheet processing platform and comes standard with a pull-out worktable design. After the worktable is pulled out, operators can load and unload sheets directly from outside the machine, greatly improving material handling convenience. The machine also supports an optional electric sliding worktable, which can automatically extend and retract through the CNC system, further reducing manual effort and improving production efficiency.
The worktable adopts a modular tooth-type slat structure, with each slat group independently removable and replaceable for easier maintenance and lower long-term operating costs. Auxiliary loading rollers are installed along the edge of the worktable, allowing sheets to slide into position from the side with reduced handling resistance, improving loading and unloading efficiency.
The machine is equipped with an electric lifting protective door for more convenient operation. The door features a laser protection viewing window made from specialized filtering glass, which effectively reduces the risk of laser radiation leakage while maintaining excellent visibility of the cutting process. In addition, the machine supports an optional internal monitoring camera system, allowing operators to observe the machining status in real time without opening the protective door, further enhancing convenience and operational safety.
The CK-1530-PS integrates safety protection, environmentally friendly processing, and convenient operation, making it ideal for sheet metal fabrication companies that prioritize workshop cleanliness, space utilization, and user experience. It is widely used in industries such as hardware manufacturing, metal product fabrication, and precision sheet metal processing for efficient metal sheet cutting applications.
Details of the Enclosed Fiber Laser Sheet Cutting Machine with Pull-Out Worktable

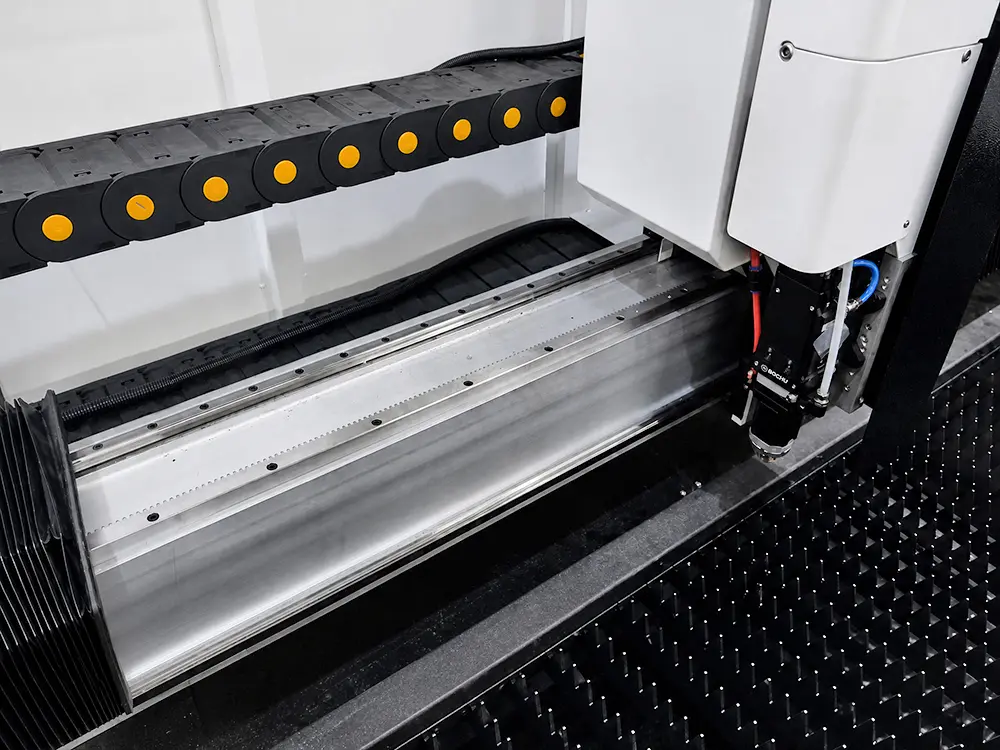

- Lightweight Aluminum Alloy Gantry Beam
The aluminum alloy gantry beam maintains high structural rigidity while effectively reducing the overall moving weight of the machine. This lightweight design improves the dynamic response capability of the equipment, enabling faster, smoother, and more stable high-speed operation.

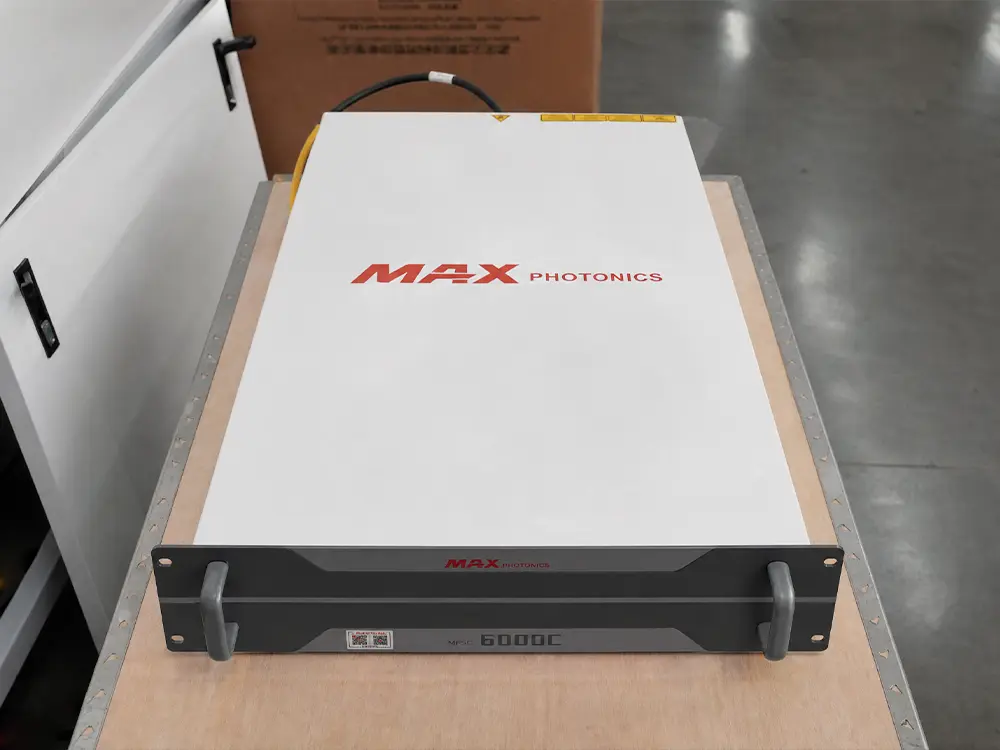

- Maxphotonics 6000W fiber laser source
The Maxphotonics (MAX) 6000W single-module fiber laser source features a compact structure and high electro-optical conversion efficiency. It adopts a single optical module design, significantly reducing the size and weight compared with multi-module lasers of the same power level (76% smaller in volume and 55% lighter in weight), making it easier to integrate into laser cutting systems.
Its key advantage lies in its excellent beam quality, with a BPP of 3.2–3.8 mm·mrad, allowing it to achieve both high-speed thin sheet cutting and efficient medium-thickness plate processing. The optimized beam performance significantly improves the efficiency and quality of piercing, cutting, welding, and other laser processes. Especially in thin and medium sheet processing, cutting speeds can be increased by 8%–26% compared with multi-mode 6000W laser sources.

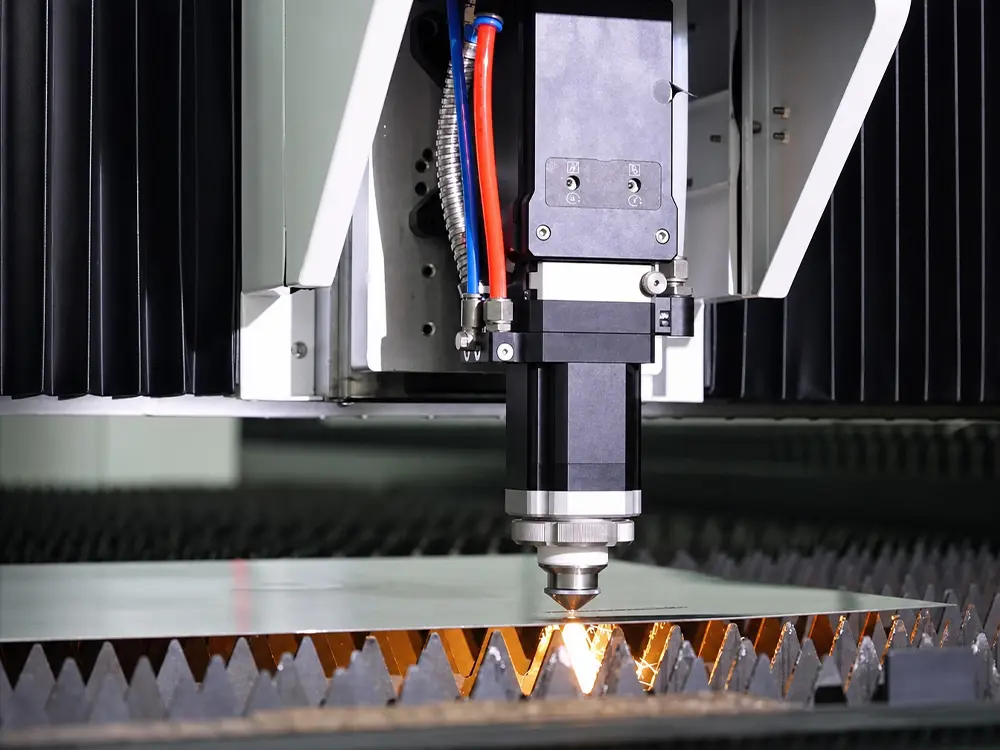

- BOCHU BLT421S laser cutting head
The BOCHU BLT421S is an intelligent laser cutting head designed for medium-to-high power fiber laser cutting systems up to 8kW. With mature technology and wide industrial application, it integrates multiple advanced functions, including a drawer-type lens module design, collision protection, closed-loop automatic focusing, and multi-sensor intelligent monitoring.
The optimized water-cooling structure covers more than 90% of the optical components, effectively improving stability during long-duration continuous processing. With optional A/B-axis configuration, the cutting head can also support bevel cutting, further expanding the machine’s processing capabilities.

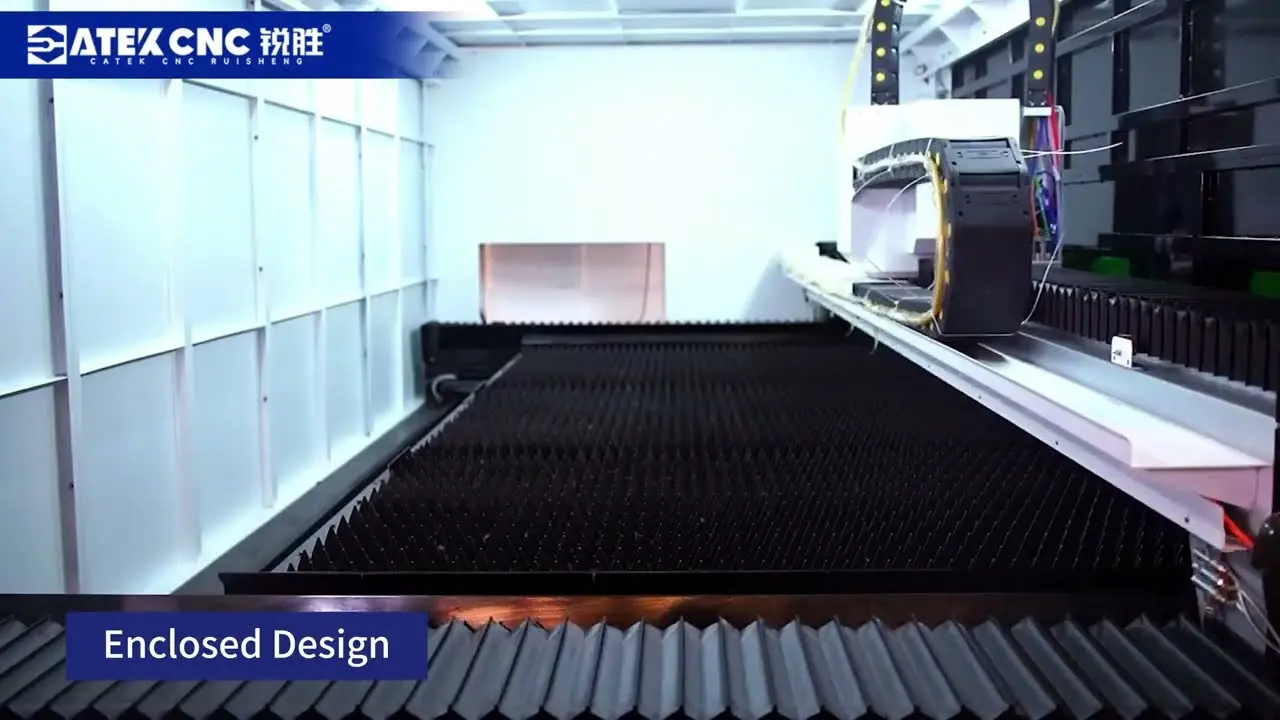

- Fully enclosed protective enclosure
The fully enclosed enclosure effectively isolates the laser processing area from the external environment, preventing fumes, laser radiation, and certain levels of cutting noise from spreading outside during operation. This provides operators with a safer and more environmentally friendly working environment.
Meanwhile, the enclosed structure reduces interference from external environmental factors, improving machine stability and cutting consistency.

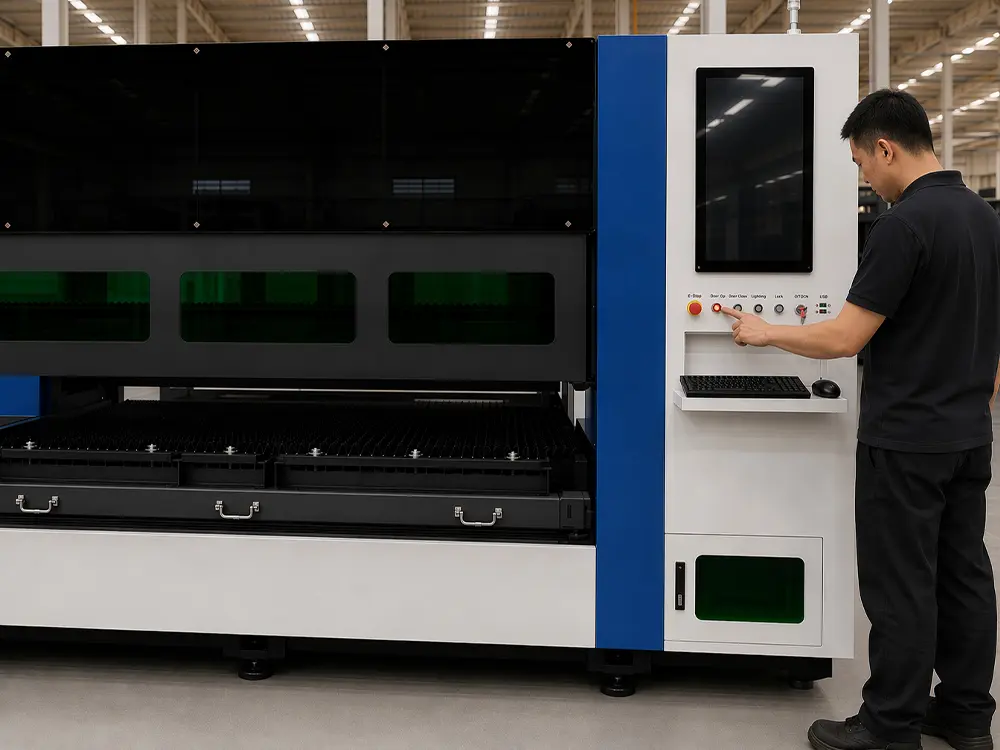

The machine is equipped with an electric lifting door, which can be controlled directly through dedicated physical buttons on the control panel. Operators can quickly open and close the protective door without navigating through additional menu interfaces, making operation more intuitive and convenient.

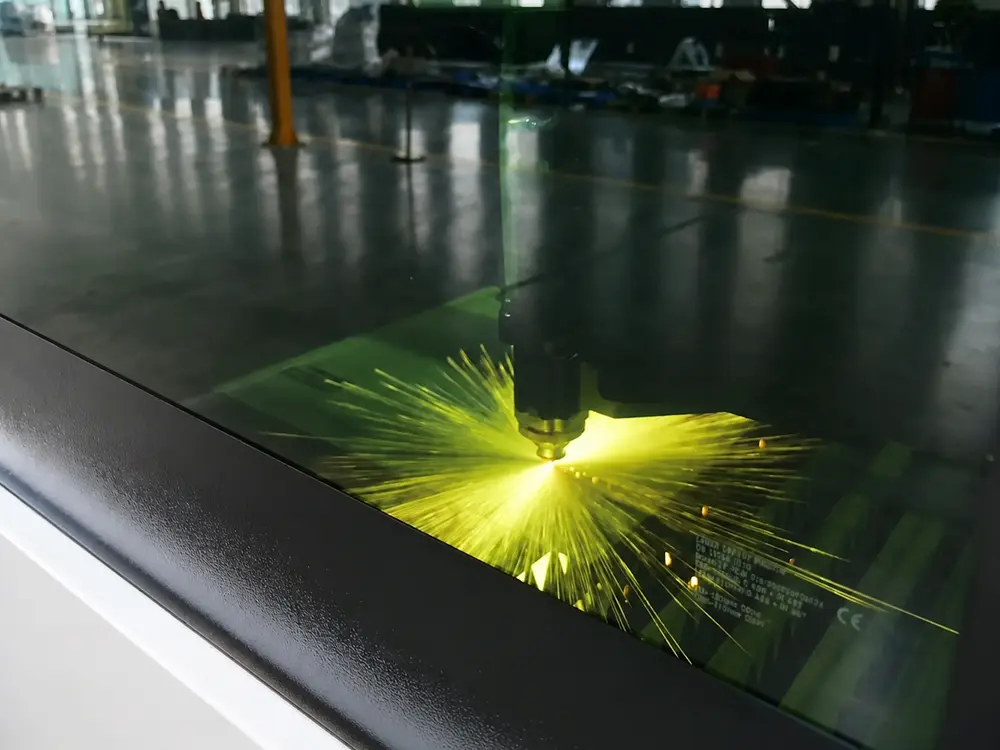

The viewing window uses CE-compliant laser protection glass, which maintains clear visibility of the cutting process while effectively blocking laser radiation leakage and improving operational safety.

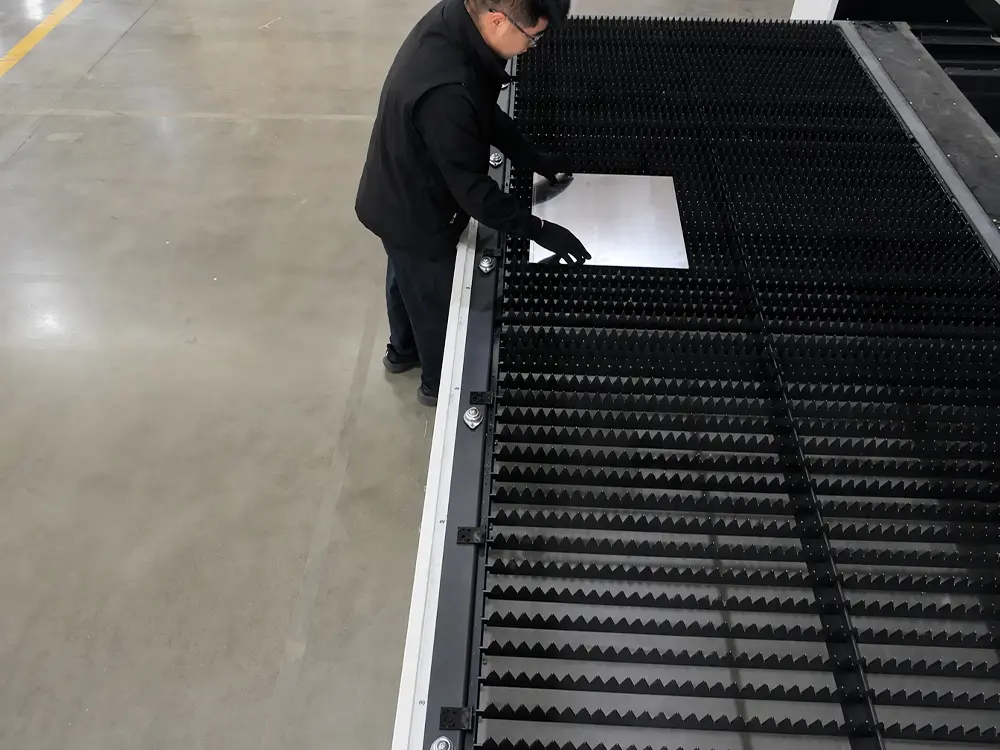

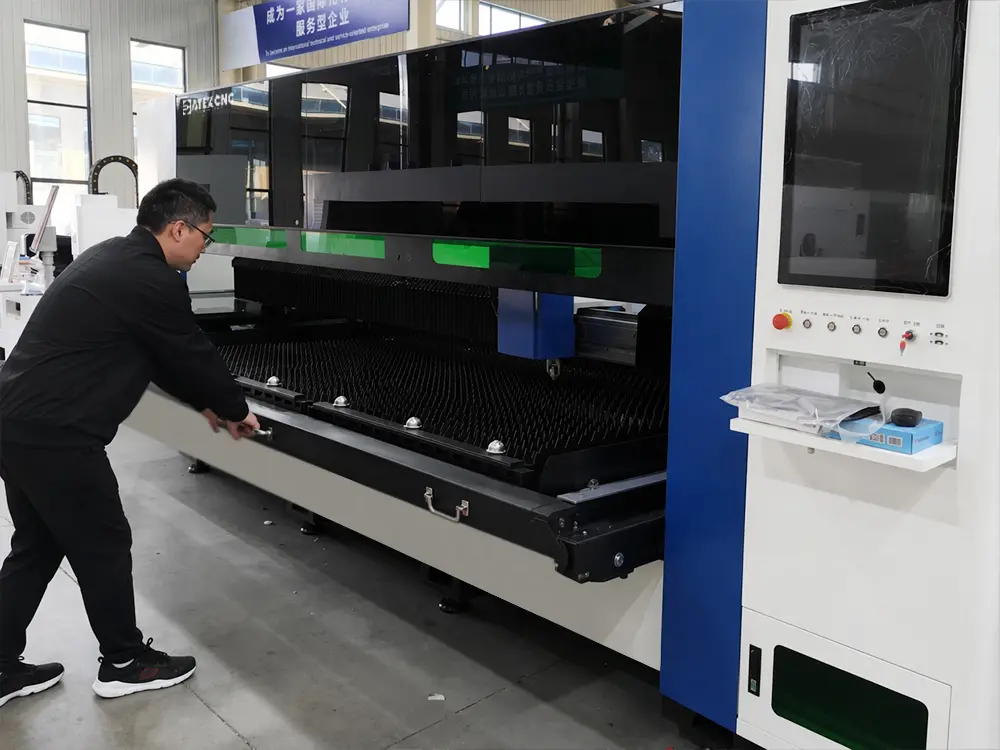

- Retractable worktable
The machine features a pull-out worktable design, allowing the worktable to extend outward and provide a larger loading and unloading space. This makes sheet handling easier and more convenient for operators.

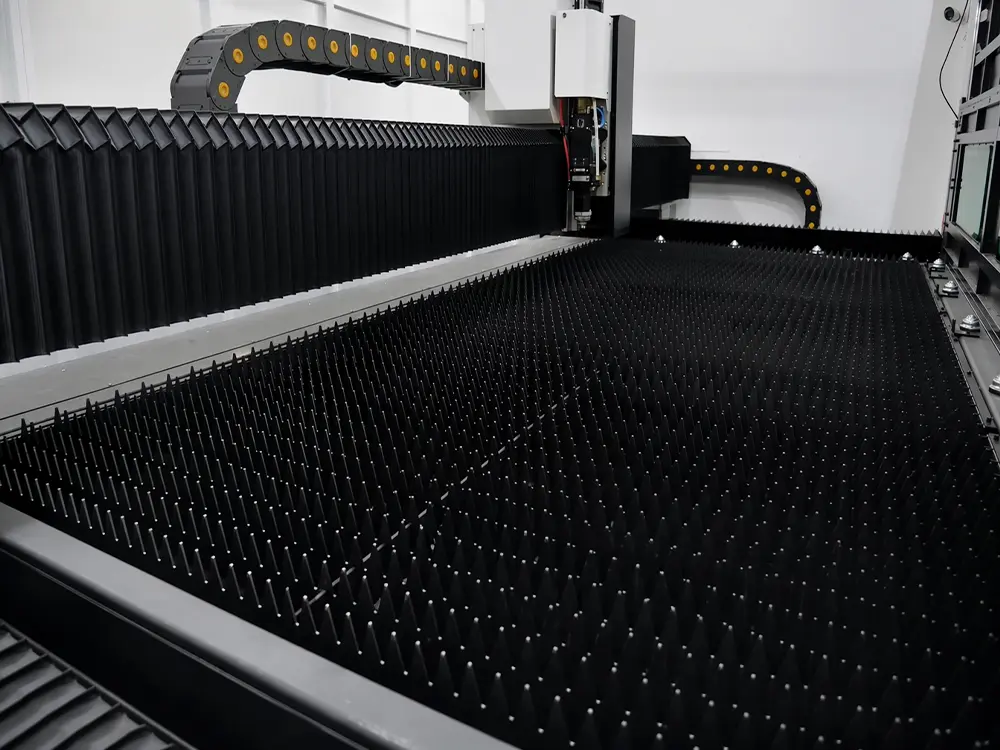

The worktable surface adopts a modular rack-type slat structure, with each slat group independently removable and replaceable. This design simplifies maintenance and effectively reduces long-term operating costs.

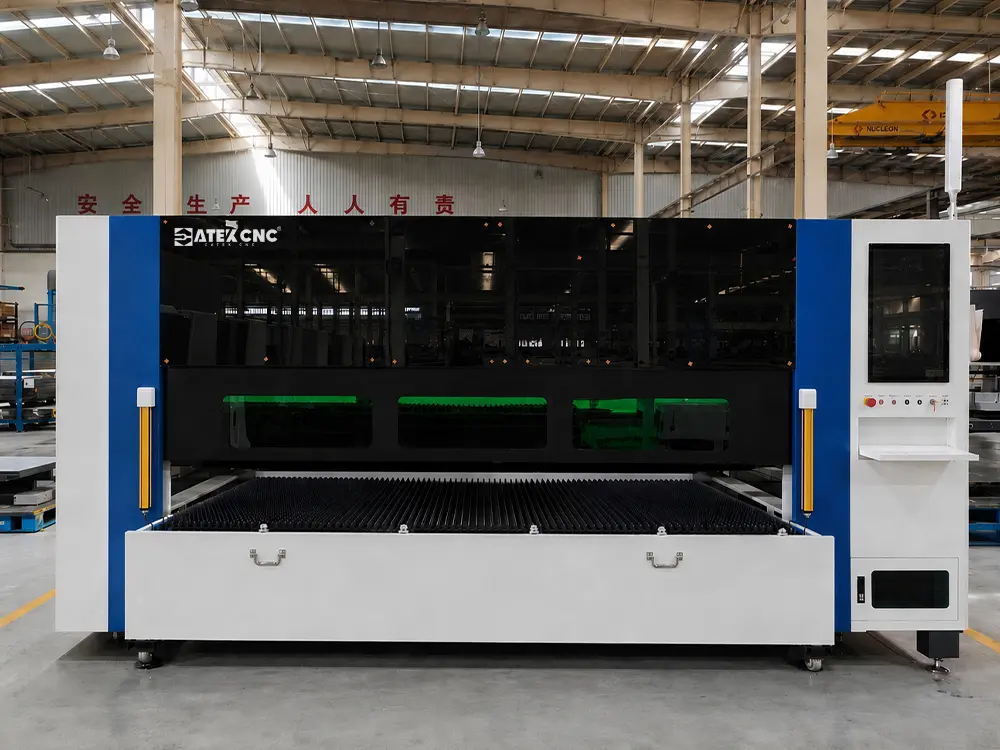

The machine also supports an optional electric retractable worktable, which can automatically complete worktable extension and retraction through the CNC control system, further reducing manual effort and improving loading and unloading efficiency.

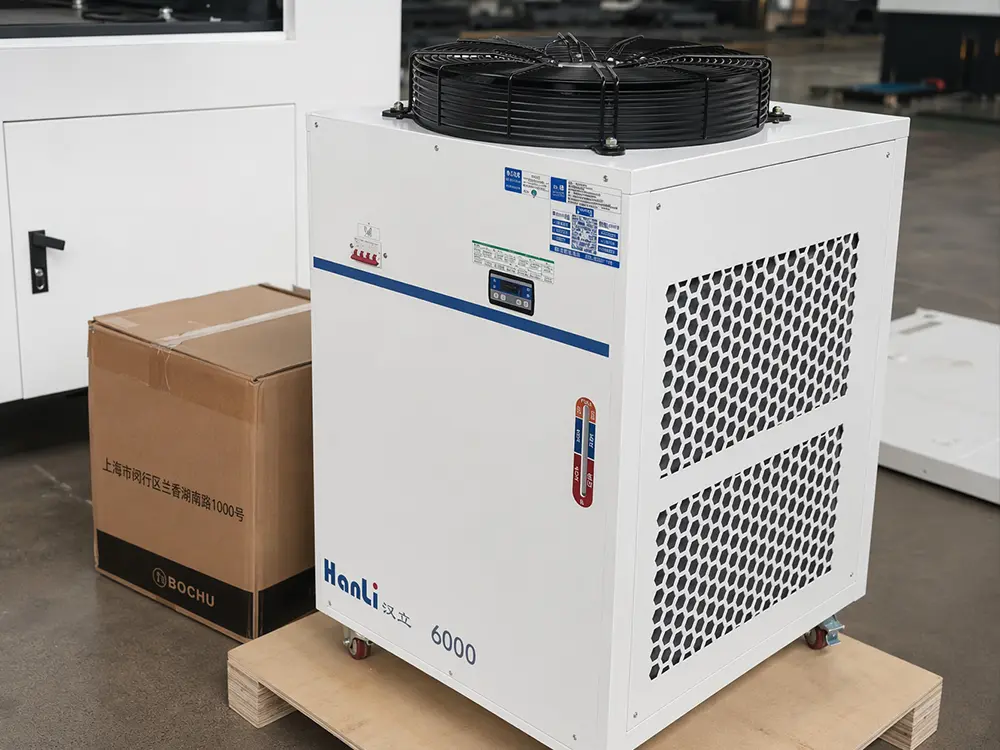

- Hanli 6000W laser chiller
The chiller adopts a dual-circuit cooling design, providing independent cooling for both the laser source and laser cutting head. It delivers a maximum cooling capacity of up to 19.1kW.
With temperature control accuracy of ±1°C, the unit features an intuitive and user-friendly interface, allowing operators to monitor and adjust operating parameters such as water temperature, pressure, and flow rate in real time. It provides stable and reliable constant-temperature cooling for the laser system, ensuring long-term processing stability.

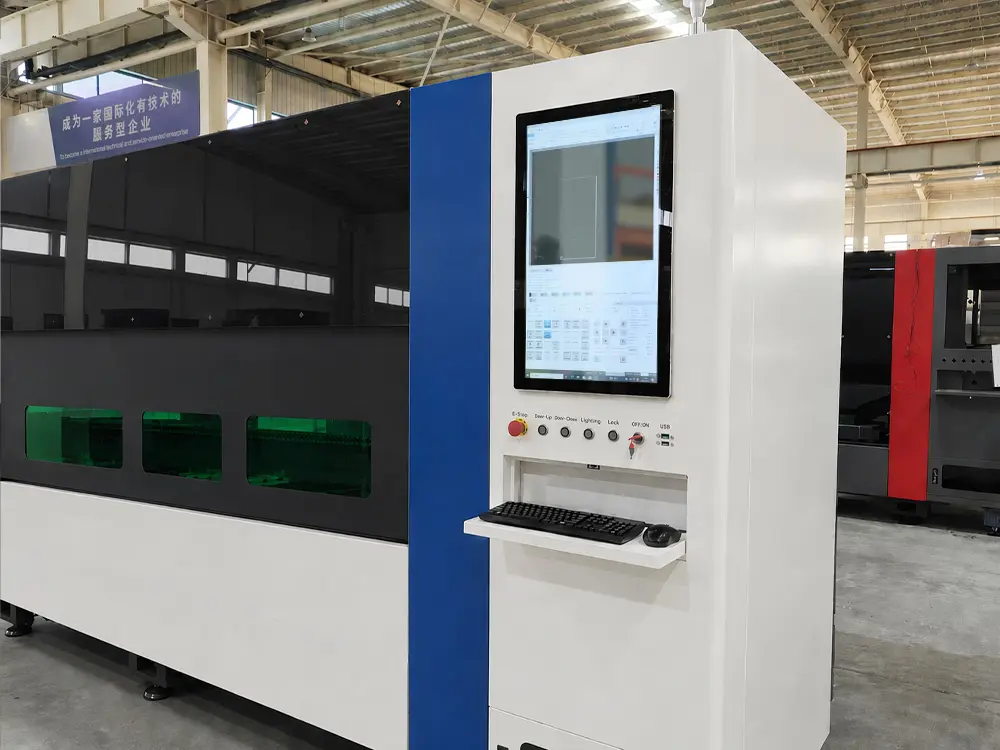

- BOCHU FSCUT4000E system
The BOCHU FSCUT4000E control system is based on EtherCAT bus technology, providing high-speed, stable communication and precise motion control.
Equipped with CypCutE professional cutting software, the system enables engineering-level process management and integrates multiple intelligent functions, including automatic nesting, machine simulation display, no-sense piercing, micro-joint without marks, and one-line flying cutting. These functions effectively improve processing efficiency and cutting quality.
The BOCHU WKB-V6 wireless handheld controller, as a dedicated accessory for the FSCUT laser cutting system, enables remote wireless operation of the machine. It allows operators to perform common operations more flexibly during material loading/unloading, machine setup, and processing, reducing dependence on the fixed control station and improving overall operating convenience.

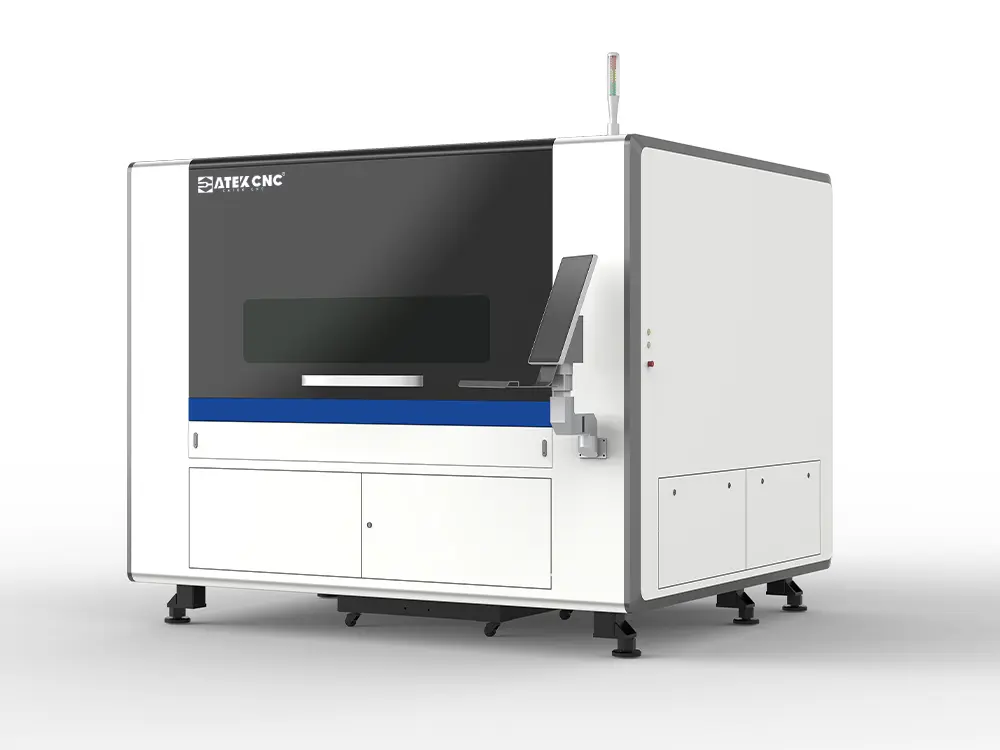

- CK-1510-PS compact fiber laser cutting machine
We also offer the CK-1510-PS fiber laser cutting machine, a more compact model designed for space-limited workshops and small-scale sheet metal processing. It features a working area of 1530 × 1050 mm and comes standard with a 3000W fiber laser source.
The machine is equipped with the same electric lifting protective door and pull-out worktable design, providing a safer and more convenient operating experience. With a lower investment cost and reduced footprint, the CK-1510-PS is a cost-effective solution for small sheet metal fabrication businesses and light-duty metal cutting applications.
Technical Parameters of the Enclosed Fiber Laser Sheet Cutting Machine with Pull-Out Worktable
| Model | CK-1530-PS |
|---|---|
| Frame / Gantry | High-strength heavy-duty bed frame, aerospace-grade aluminum alloy gantry |
| Laser Source | Maxphotonics (optional Raycus, IPG) |
| Laser Center Wavelength | 1064nm |
| Laser Cutting Head | ≤3000W: BLT310T |
| 6000W: BLT421S | |
| 12000W: BLT442 | |
| Fiber Laser Power Options | 1500-12000W |
| Cooling Method | Hanli 1500W-12000W chiller for fiber laser |
| Worktable | Shuttle worktable (dual alternating worktable system) |
| Drive System | Inovance bus-based absolute servo system |
| Transmission | HIWIN (Taiwan) high-precision linear guideways |
| Reducer | KOFON planetary gear reducer |
| Main Electrical Components | Schneider / Omron |
| Pneumatic Components | SMC (Japan) proportional valves |
| Control System | ≤3KW: BOCHU FSCUT2000E |
| 3kW-6KW: BOCHU FSCUT4000E | |
| 6KW-12KW: BOCHU FSCUT6000 | |
| Lubrication System | Automatic lubrication system |
| Max. Sheet Processing Size | 1530 * 3060mm |
| Positioning Accuracy | ±0.03mm |
| Max. Travel Speed (X/Y Linkage) | 115m/min |
| Max. Acceleration (X/Y Linkage) | 0.8G |
| Worktable Load Capacity | 900kg |
| Operating Voltage | AC380V |
| Machine Dimensions | 5040*2280*2130mm |
| Machine Weight | 4920kg |
Features of the Enclosed Fiber Laser Sheet Cutting Machine with Pull-Out Worktable
1. Fully Enclosed Structure for Eco-Friendly and Safe Operation
The laser cutter adopts a sheet metal protective enclosure, effectively isolating the laser processing area from the external environment. During operation, it helps prevent laser radiation, cutting fumes, metal sparks, and high-temperature slag from spreading outward, providing operators with a safer and cleaner working environment.
Meanwhile, the enclosed structure reduces the impact of external environmental factors on the cutting process, improving machine stability and processing consistency.
The machine is equipped with a zoned fume extraction system, which efficiently collects smoke, heat, and volatile substances generated during cutting. The extraction system divides the fume removal area into multiple independent zones and automatically activates the corresponding extraction zone according to the real-time position of the laser cutting head. This ensures effective fume removal while reducing unnecessary energy consumption caused by continuous operation.
The machine also supports an optional safety light curtain system. When personnel or foreign objects enter the designated protection area, the system can automatically trigger a safety protection mechanism and stop machine operation, further enhancing operational safety.
2. High-Quality Core Components for Efficient and Stable Processing
The laser cutter is equipped with a 6000W fiber laser system, balancing cutting efficiency and processing cost while meeting the requirements of most common metal sheet applications.
The transmission system adopts Inovance EtherCAT servo motors, featuring a 3kHz velocity loop bandwidth and 23-bit high-resolution encoders for rapid response and precise position control. The servo system also supports STune and ETune automatic gain adjustment functions, reducing commissioning difficulty and improving installation and setup efficiency.
3. Convenient Operation with High Loading and Unloading Efficiency
The laser cutter features a user-friendly design with an optimized sheet loading and unloading structure. The worktable can be easily pulled outward, allowing operators to load and unload sheets without reaching into the processing area.
This design improves material handling convenience while enhancing operational safety. An optional electric pull-out worktable is also available to further improve automation and ease of operation.
4. Intelligent Control for Improved Processing Quality and Efficiency
The laser cutter is equipped with BOCHU CypCutE professional cutting software, integrating intelligent functions such as automatic nesting, machining path preview, and nozzle status detection.
The system includes advanced process functions such as no-sense piercing, one-click flying cutting, mark-free micro joints, circular plate centering, and one-click cutting, effectively improving processing efficiency and finished product quality.
The accompanying wireless handheld controller allows operators to conveniently perform machine setup, adjustment, and operation tasks, improving overall workflow efficiency.
5. Automatic Lubrication System for Reduced Maintenance Costs
The laser cutter is equipped with an automatic lubrication system, which automatically performs lubrication according to preset parameters. Users can adjust settings including lubrication areas, lubrication duration, lubrication intervals, and lubrication speed.
When the lubricant level is insufficient, the system provides an automatic reminder to prevent performance issues caused by inadequate lubrication.
Compared with manual lubrication, the automatic lubrication system reduces maintenance workload while improving lubrication consistency and reliability, extending the service life of transmission components.
Applications of the Enclosed Fiber Laser Sheet Cutting Machine with Pull-Out Worktable
Sheet Metal Fabrication Industry
The sheet metal fabrication industry mainly involves the manufacturing of electrical cabinets, equipment enclosures, protective covers, mounting brackets, decorative panels, and other products. Common processing materials include cold-rolled steel, stainless steel, and aluminum sheets. Since sheet metal orders typically feature multiple product types, small batch sizes, and short delivery cycles, equipment flexibility and operational efficiency are highly important. The CK-1530-PS adopts laser cutting technology, allowing direct processing based on CAD drawings without the need for molds, enabling flexible production for various part requirements. The pull-out worktable design improves sheet loading and unloading convenience, while the intelligent cutting system helps enhance daily production efficiency for sheet metal manufacturers.
Advertising & Signage Industry
The advertising and signage industry mainly produces metal letters, logo signs, decorative panels, display racks, and other products. Common materials include stainless steel, aluminum sheets, and galvanized steel sheets. Due to frequent product updates and customized designs, advertising manufacturers require highly flexible processing equipment. The CK-1530-PS can efficiently cut complex text, patterns, hollow structures, and irregular contours with smooth and clean edges, reducing manual finishing work. Meanwhile, the fully enclosed structure effectively reduces the spread of sparks and dust generated during traditional cutting processes, providing a cleaner working environment.
Kitchen Equipment Industry
The kitchenware and kitchen equipment industry mainly processes products such as sinks, cabinet panels, stove components, storage racks, and metal decorative parts. Common materials include stainless steel, aluminum, and cold-rolled steel sheets. These products usually require high appearance quality and dimensional accuracy, involving processes such as hole cutting and irregular contour machining. The laser cutting machine delivers high-quality sheet cutting performance, effectively reducing burrs and heat-affected areas that may affect subsequent bending and welding processes. With optional AB-axis bevel cutting capability, it can also meet the requirements of certain welded structural components.
Automotive Parts Industry
The automotive parts industry involves the processing of brackets, mounting plates, decorative parts, and interior metal components, mainly using cold-rolled steel, stainless steel, and aluminum alloy sheets. This industry requires both high-volume production and flexible manufacturing for prototypes and modified parts. The CK-1530-PS provides stable repeat positioning accuracy to ensure consistent batch production quality. and serves as a flexible solution for prototyping, small-batch runs, and rapid order fulfillment.
Medical Equipment & Laboratory Instrument Components Industry
The medical equipment and laboratory instrument industries mainly process precision metal components such as equipment housings, support structures, and laboratory accessories. Common materials include stainless steel and aluminum alloy. Due to strict requirements for cleanliness, appearance quality, and processing stability, the fully enclosed protective structure effectively reduces the spread of dust, sparks, and metal debris during processing, making it suitable for applications with higher environmental requirements. Meanwhile, laser cutting features a small heat-affected zone, helping reduce deformation risks and improve finished product quality.
Furniture & Office Furniture Industry
The furniture and office furniture industry mainly produces metal table frames, chair frames, cabinet panels, decorative trims, and other components. Common materials include thin steel sheets, stainless steel sheets, and aluminum alloy sheets. With the increasing demand for customized furniture, manufacturers require equipment with fast changeover capability and versatile processing performance. The machine supports quick switching between different processing tasks and, combined with intelligent nesting functions, improves material utilization efficiency, making it suitable for both standardized production and customized furniture manufacturing.
