Multi-Station 3D CNC Router: Solving Small Statue Mass Production

Three-Dimensional Processing of Small Wooden Statues is a core, high-precision technique within the woodcarving industry. It is widely applied to Buddhist and religious effigies, small-scale 3D figurines, and intricate woodcraft carvings. The primary pain point in this industry is not achieving fine detail on a single custom piece, but rather maintaining precise control over wood characteristics during mass production while ensuring large-scale manufacturing efficiency.

This project showcases how a Multi-Station 3D Woodworking CNC Router addresses these industry bottlenecks, providing an efficient and highly reliable solution for woodcarving and statue manufacturers worldwide.

Ⅰ.Project Background and Customer Requirements

With years of deep-rooted experience in the woodcarving industry, the client specializes in the custom design and mass production of various small-scale wooden statues with complex geometries. Featuring three-dimensional forms and intricate detailing, their products are successfully exported to overseas markets. However, with the surge in custom market demand and the increase in high-volume factory orders over the past two years, their original production model could no longer keep pace with market needs. The client was in urgent need of a brand-new machining solution capable of achieving large-scale, standardized production of complex statues without sacrificing carving precision.

The client's previous production setup combined manual fine carving with single-head, 3-axis CNC routers. While manual carving delivered meticulous details, it made mass production impossible. Conversely, ordinary CNC equipment allowed for mass production but failed to recreate complex 3D curved surface effects, limiting its utility to small-batch custom orders. Addressing the client's core challenges—difficulty in batch processing complex 3D small wooden statues, poor finished product consistency, and high labor costs—the client explicitly put forward three major upgrade requirements:

First, increase workshop production capacity. Expand the ability to take on large-scale custom orders without increasing the number of machine operators.

Third, improve workshop production efficiency. Reduce processes such as manual flipping and secondary positioning, lower the scrap rate, and enhance the overall production efficiency of the workshop.

Based on the client's three core requirements, we introduced a targeted multi-station, multi-axis simultaneous woodworking solution. From equipment structure to processing craftsmanship, this solution perfectly matches the client's needs for the mass processing of small wooden statues with complex geometries.

Ⅱ.Customized Multi-Station 3D Woodworking CNC Router Solution

Addressing the client's production pain points of low efficiency, complex processes, and inconsistent finished product quality in batch 3D woodcarving statue processing, we customized the CK-1020-10S multi-station woodworking CNC router solution, which is perfectly adapted to various irregularly shaped woodcarving statues. It can accomplish many tasks that ordinary ATC CNC routers cannot, making it ideal for the high-precision, multi-style mass production of small wooden statues.

This solution completely revolutionizes the outdated traditional production mode of processing single pieces one by one. By utilizing the equipment's 10 independent and identical processing stations, it achieves simultaneous machining of multiple workpieces. The entire process requires only a single clamping to complete all carving stages at once, fundamentally altering the traditional logic of single-piece processing and perfectly matching the client's production needs for high-precision, large-scale mass manufacturing of small statues.

1.Core Product Configurations:

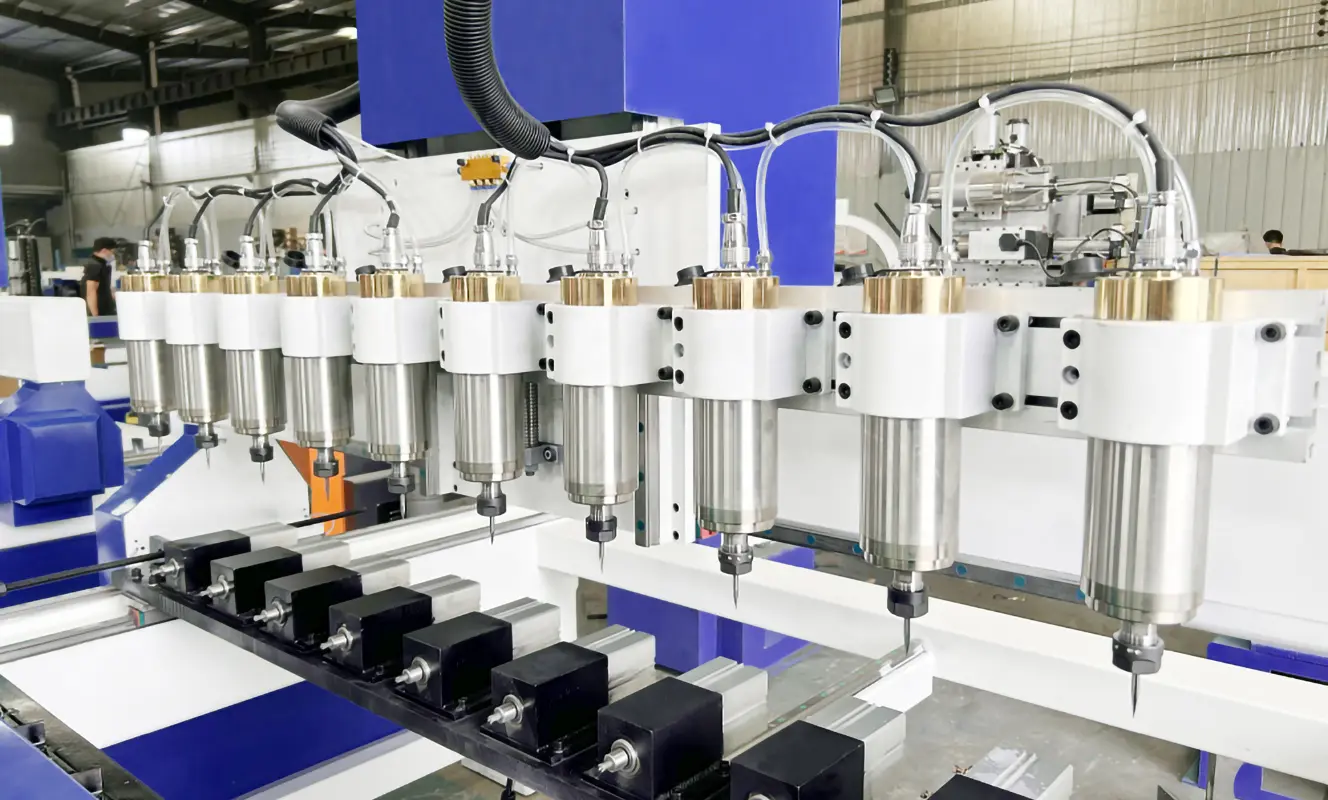

• 10-station independent spindle configuration, where each station is equipped with an independent spindle and rotary axis, allowing for simultaneous three-dimensional shaping, fine cutting, and other operations on 10 workpieces. This compresses orders that originally took several days down to just a few hours.

• 4-axis simultaneous machining capability: Distinguishing itself from simple 3-axis machining, this machine possesses true 4-axis simultaneous capability (X, Y, Z + rotary A-axis). This means the workpiece can rotate continuously during the carving process while the spindle performs multi-angle, three-dimensional cutting. It effortlessly completes various complex curved surfaces and irregularly shaped 3D profiles, perfectly matching the high-precision fine machining needs of all kinds of small wooden statues with complex geometries.

• Heavy-duty structured body: Simultaneous multi-spindle operation generates a heavy cutting load. The machine adopts a heavy-duty, one-piece fully cast bed and a thickened cast-iron gantry to ensure bed stability and zero vibration during high-load, high-speed machining. Coupled with Taiwan's Hiwin high-precision linear guide rails and TBI ball screws, the repeatability is tightly controlled within ±0.02mm, guaranteeing the absolute consistency of each processed workpiece.

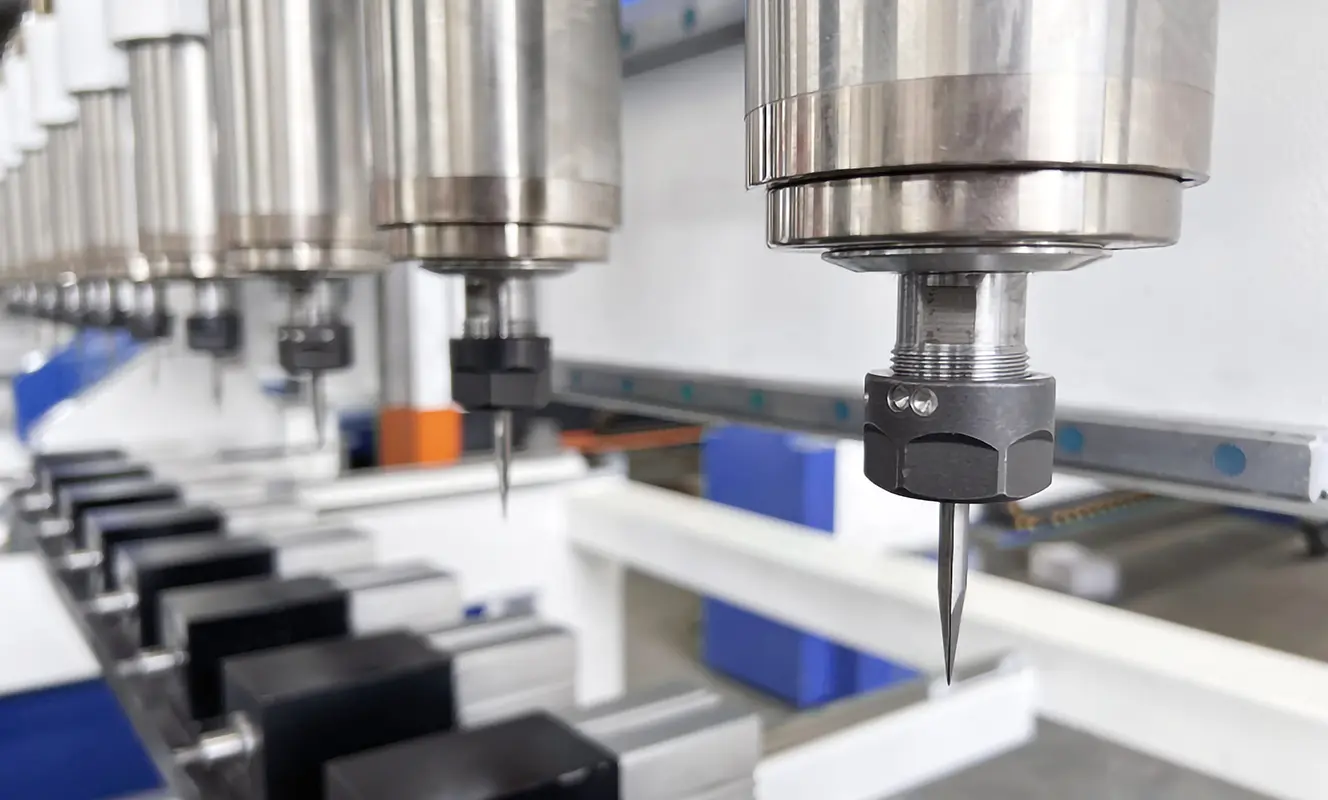

• High-speed water-cooled spindle: The equipment utilizes high-speed water-cooled spindles that rely on water circulation for cooling and heat dissipation, ensuring that the machine remains cool even during prolonged, continuous carving. Equipped with a structure of four silent ceramic bearings, it operates with low noise and is perfectly suited for long-term, uninterrupted production.

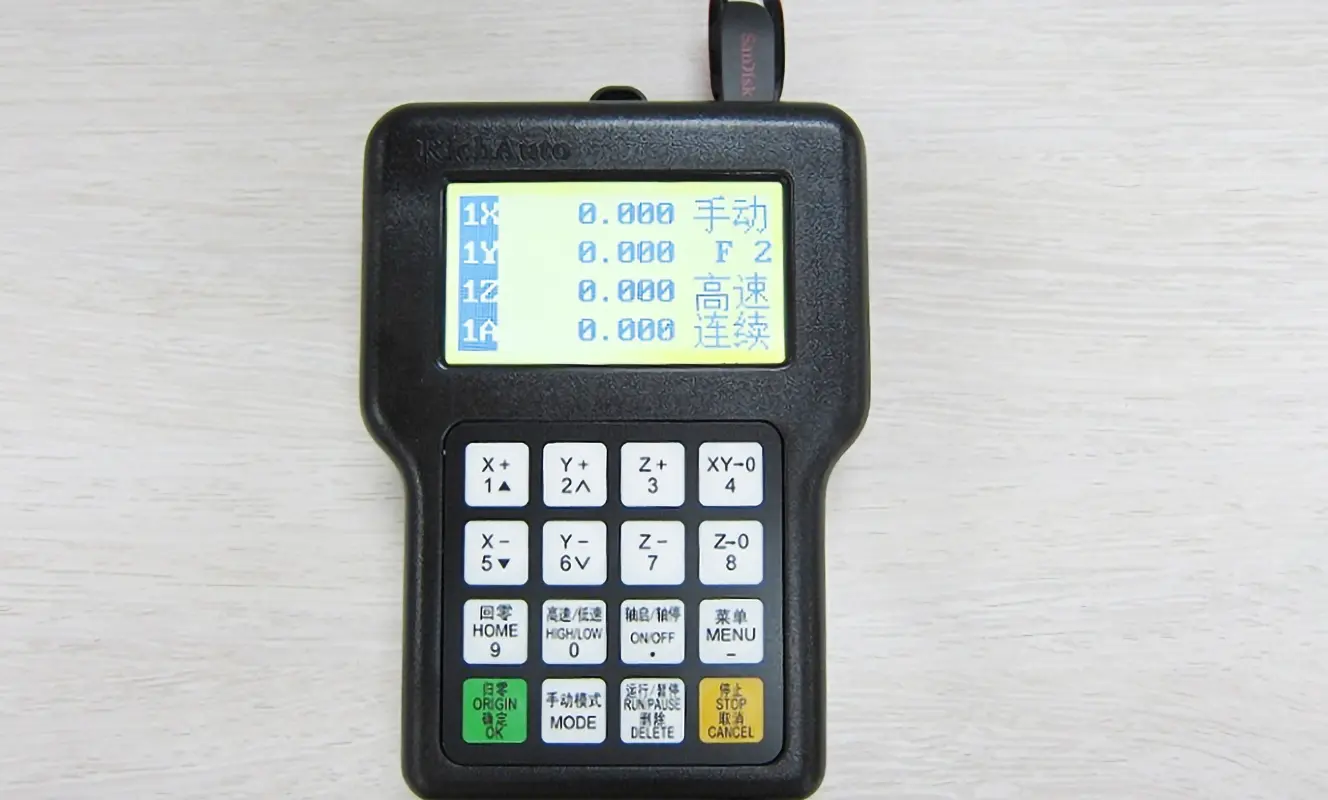

• Intelligent DSP operating system: Equipped with a 4-axis simultaneous DSP system, it supports importing processing files via USB flash drive, making it easy to master without professional programming knowledge. Meanwhile, it features built-in power-failure recovery and breakpoint resume functions; in the event of unexpected situations such as tool breakage, the machine can precisely resume the previous process upon restarting. This avoids raw material waste and guarantees uninterrupted, around-the-clock mass production in the workshop.

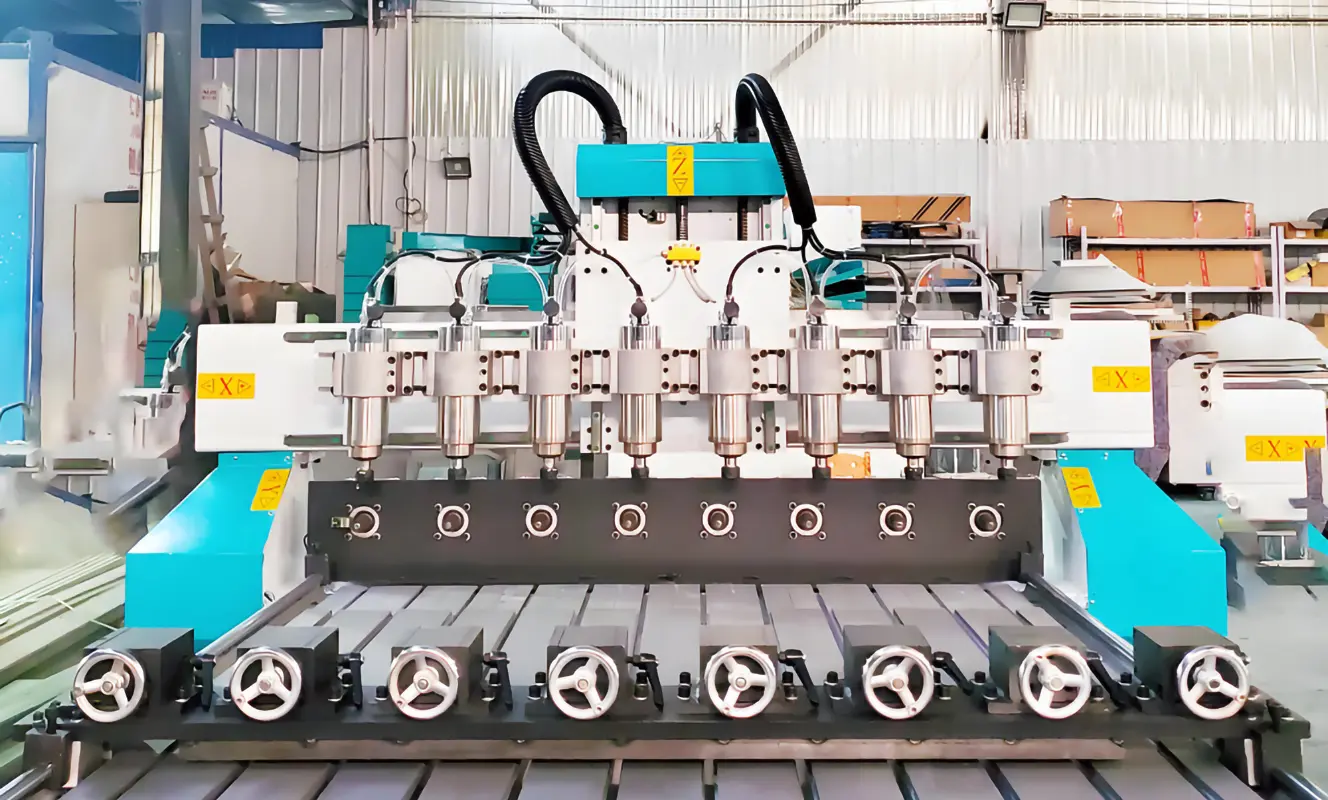

• Comprehensive functionality: It supports an optional aluminum T-slot worktable, allowing a single machine to handle both flat engraving and 3D machining. With more comprehensive functions, it can adapt to the processing of various statue styles, offering higher equipment versatility and cost-effectiveness.

2.Core Technical Advantages:

• Improving production efficiency and reducing labor costs:

The CK-1020-10S automatically completes complex carving tasks. Once the program is fine-tuned, subsequent mass production requires no repetitive manual calibration, drastically shortening the production cycle.

This automated production model lowers labor costs and expands profit margins.

Higher production efficiency translates into faster delivery speeds, enabling the client to better satisfy customer demands.

Guaranteeing carving precision and enhancing finished product quality:

• The CNC system precisely controls the tool path, ensuring smooth statue surface curvatures and clear, complete details. This maximizes the reproduction of the original design effects while eliminating potential human errors.

Meanwhile, it effortlessly executes complex curved surfaces and three-dimensional geometries that are difficult to achieve manually, effectively improving finished product consistency and overall quality.

Ⅲ.Customer Feedback and Production Improvements

Following the introduction of the CK-1020-10S multi-station 4-axis CNC router, the overall production state of the client's workshop has been comprehensively improved. This effectively resolved their real-world problems of low traditional processing efficiency, large positioning errors from repetitive clamping, and complex procedures.

Validated by long-term, uninterrupted mass production, the equipment has proven stable and durable, showing zero issues even during extended periods of batch manufacturing. All three major requirements raised by the client were successfully met, and they highly praised the multi-station woodworking carving solution, stating: "It used to take three days to manually carve a single piece, but now we can produce ten identical pieces in just one day. The stability is also extremely dependable; we haven't encountered any precision issues during long-term batch production."

The main improvements brought to the workshop's production by the implementation of the CK-1020-10S multi-station 3D CNC router focus on the following aspects:

• Production efficiency has increased significantly; order volumes that originally required a month can now be completed in just a few days, drastically shortening the delivery cycle.
• Finished product quality is highly standardized; through programmed and standardized equipment machining, the final effects remain uniform and consistent across both the same and different batches, perfectly meeting high-precision carving mass production standards.
• Labor costs have been significantly reduced; tasks that previously required the collaboration of multiple operators can now be managed by just a single operator responsible for loading, unloading, and monitoring the machine, effectively cutting labor expenses.
• Business scope has expanded; the stable capacity for mass-producing high-precision, small-scale wooden statues has empowered the client to take on more highly demanding custom carving orders, significantly sharpening their core competitiveness in the market.

Currently, the equipment has stabilized within the factory's daily mass production, with overall manufacturing operations running seamlessly. Looking ahead, the client plans to integrate automated loading and unloading auxiliary equipment to build an unmanned, intelligent production line. This will further unlock their production capacity advantages and maximize economies of scale.

Ⅳ.Workpiece Processing Workflow

1.Design and Programming:

The operator uses common design software such as Artcam or Solidworks to complete the 3D modeling, and then generates the machining toolpaths via CAM software while simultaneously configuring the processing paths for all 10 workpieces. Once the program is verified through simulation, it is imported into the control system via a USB flash drive.

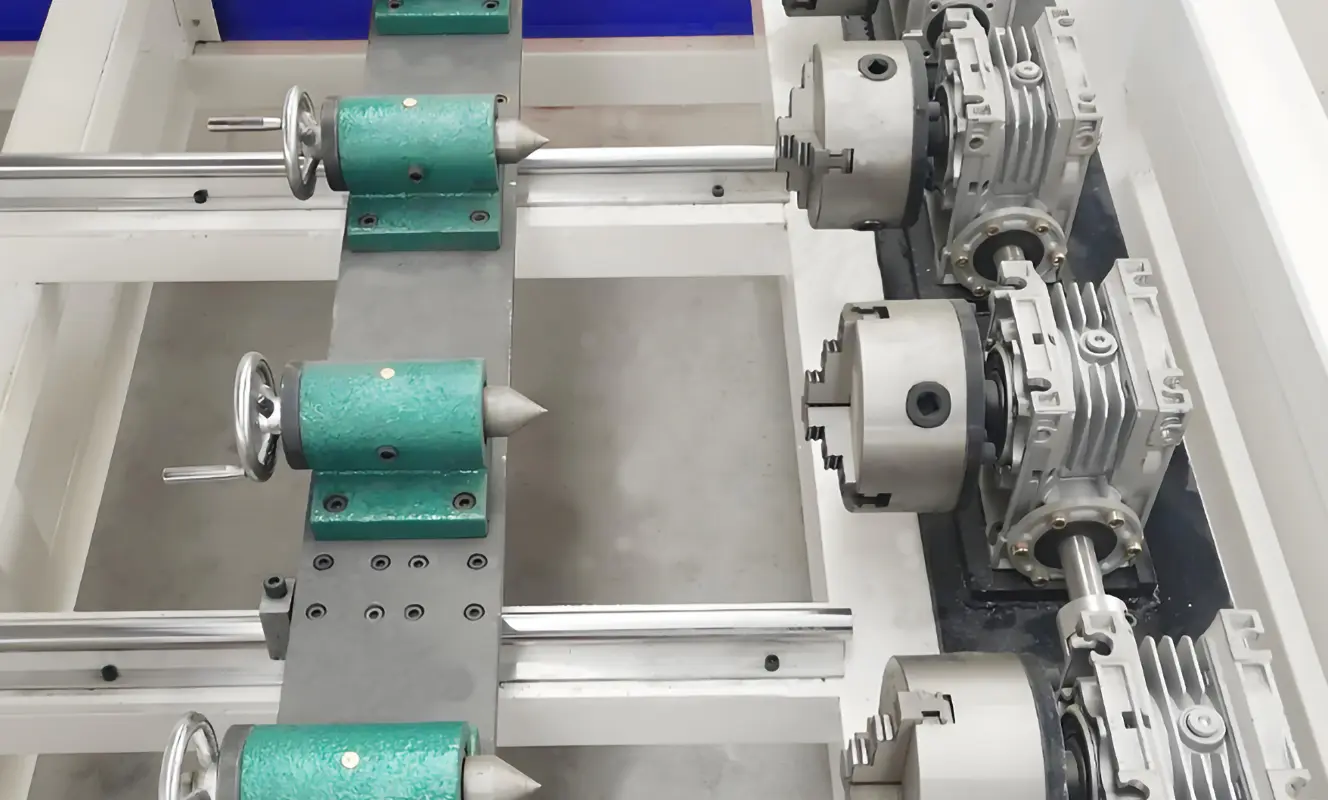

2.One-Time Workpiece Clamping:

The operator secures the 10 wooden statue blanks individually onto the chucks of the rotary axes. Depending on the statue's shape and specifications, tailstock live centers are used as auxiliary supports to ensure firm and rigid clamping. Subsequent mass production requires no repetitive adjustments, saving a tremendous amount of time.

3.Tool Setting and Startup:

A tool setter is used to quickly define the machining origin for each spindle. Since the same program is used, the operator only needs to precisely set the origin for a single reference workpiece; the system automatically compensates for the offsets across the remaining spindles, ensuring the machining positions for all 10 workpieces are perfectly identical.

Launch the program, and the machine will begin automated processing.

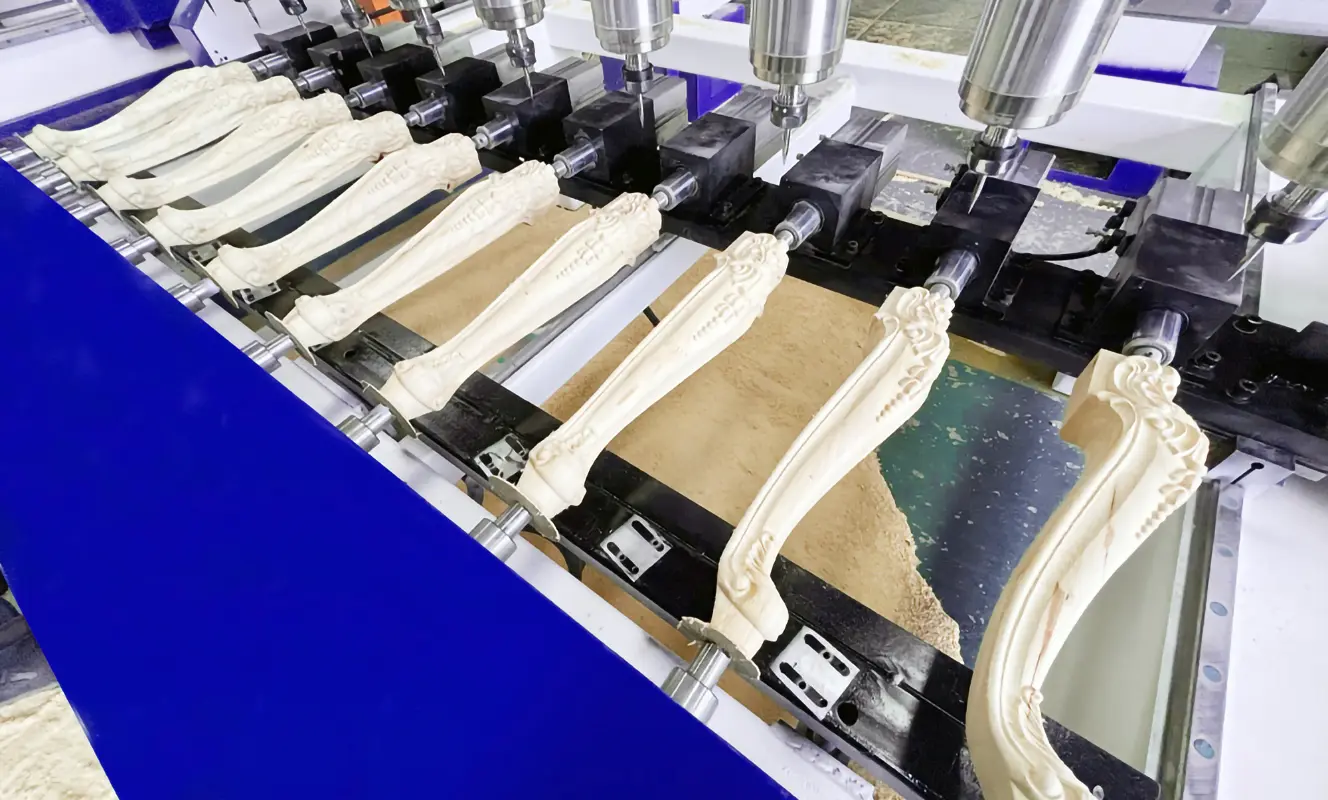

4.Four-Axis Simultaneous Automated 3D Carving:

Once the program starts, the machine operates entirely automatically without requiring manual supervision. Ten stations work simultaneously, utilizing the 4-axis simultaneous rotary carving function to complete the 3D machining of all workpieces in a single pass. During operation, the workpieces rotate continuously while the spindles cut into the wood from multiple angles. This allows the full 3D geometry to be formed all at once, eliminating the need for mid-process secondary clamping or re-calibration.

Ⅴ.Compatible Processing Materials

The CK-1020-10S multi-station 3D CNC router is capable of processing a wide variety of woodworking and decorative materials, enabling the efficient 3D machining and mass production of various small wood carvings and statues. It can adapt to different materials without frequent parameter adjustments, offering exceptional adaptability. The main compatible materials include:

• Wood-Based Panels & Timbers: MDF, plywood, particleboard, melamine board, solid wood panels
• Advanced Decorative Materials: PVC foam boards, acrylic sheets

This Multi-station 3D CNC woodworking router delivers stable processing and high efficiency. Whether handling standard substrates like MDF and solid wood, or decorative materials like PVC and acrylic, it can complete the 3D batch machining of various small statues in a single run—making it perfectly suited for high-volume production scenarios in wood carving factories.

Ⅵ.Conclusion

The implementation of the CK-1020-10S multi-station 3D CNC woodworking router not only resolved the client's bottleneck in mass-producing small wooden statues but also successfully drove the upgrade and transformation of their production model. In the field of small-scale 3D wood statue processing, specialized CNC router truly achieves a perfect balance between artistic craftsmanship and high-volume output—safeguarding intricate carving precision and texture while drastically boosting production efficiency. For carving manufacturers who require high-volume batch processing of small 3D statues, this represents a field-proven, highly practical, and efficient production solution.
